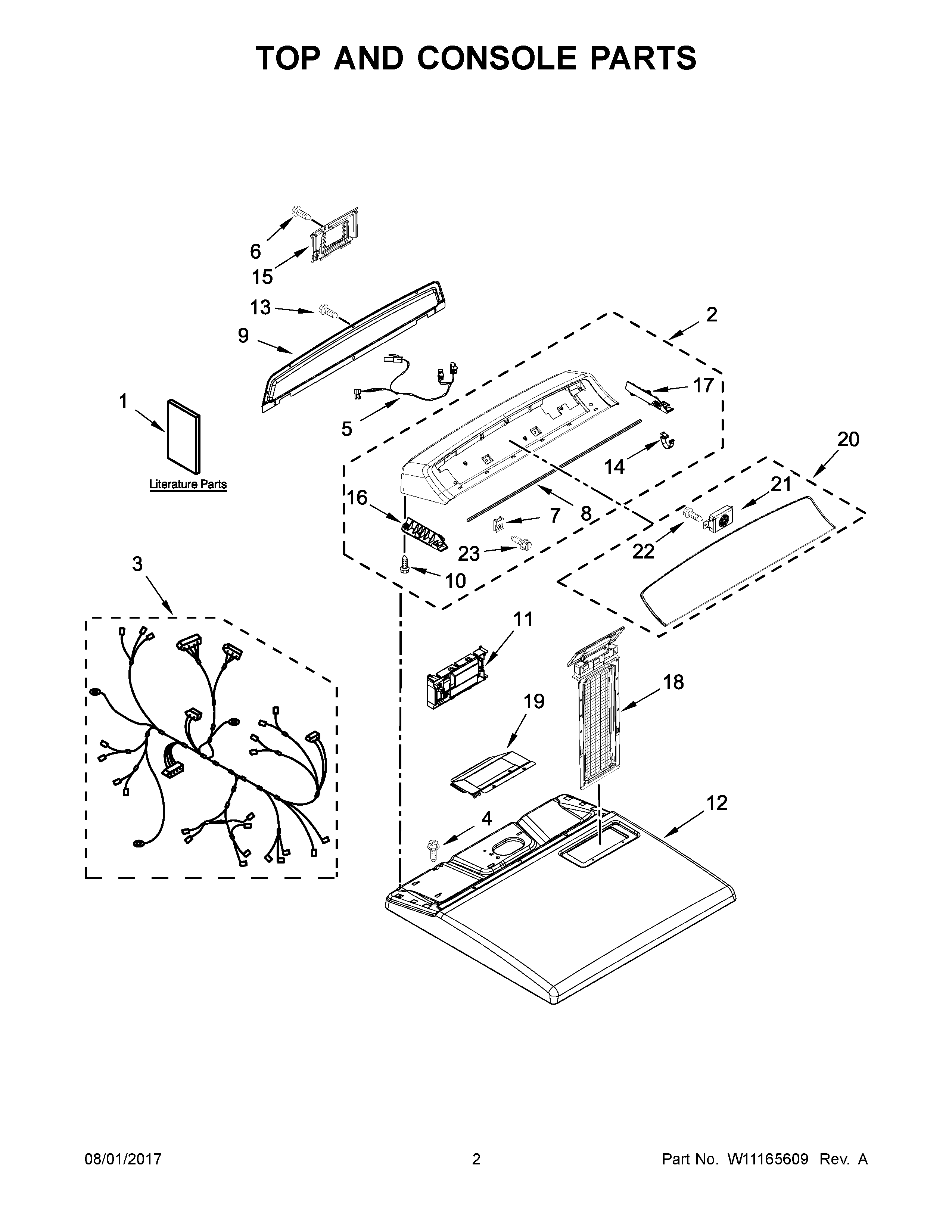

YWED7300DW2 02 – TOP AND CONSOLE PARTS
Written by
in
YWED7300DW2 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1C
QUICKSTART GUIDE
1B
TECH SHEET
1A
GUIDE, USE AND CARE
1
INSTALLATION INSTRUCTIONS
2
W11050696 Whirlpool Console
3
HARNESS, MAIN WIRING
4
WP9740848 Whirlpool Dishwasher Screw
5
W10634454 Whirlpool Wire Harness User Interface
6
WP90767 Whirlpool Screw
7
W11213336 Whirlpool Nut
8
W11721376 Whirlpool Seal Assembly
9
W10775189 Whirlpool Rear Panel
10
W10853898 Whirlpool Screw
11
W11126817 Whirlpool Electronic Control Board + Core
12
W11222514 Whirlpool Top Assembly
14
WP8312709 Whirlpool Endcap Clip
15
W11298298 Whirlpool Cover
16
W10631629 Whirlpool Bracket
17
W10631630 Whirlpool Bracket Assembly
18
SCREEN
19
W10662472 Whirlpool Cover Assembly
20
ASSEMBLY, FASCIA
21
W11123146 Whirlpool Speaker
22
WP693995 Whirlpool Screw
23
W11631670 Whirlpool Screw
←
