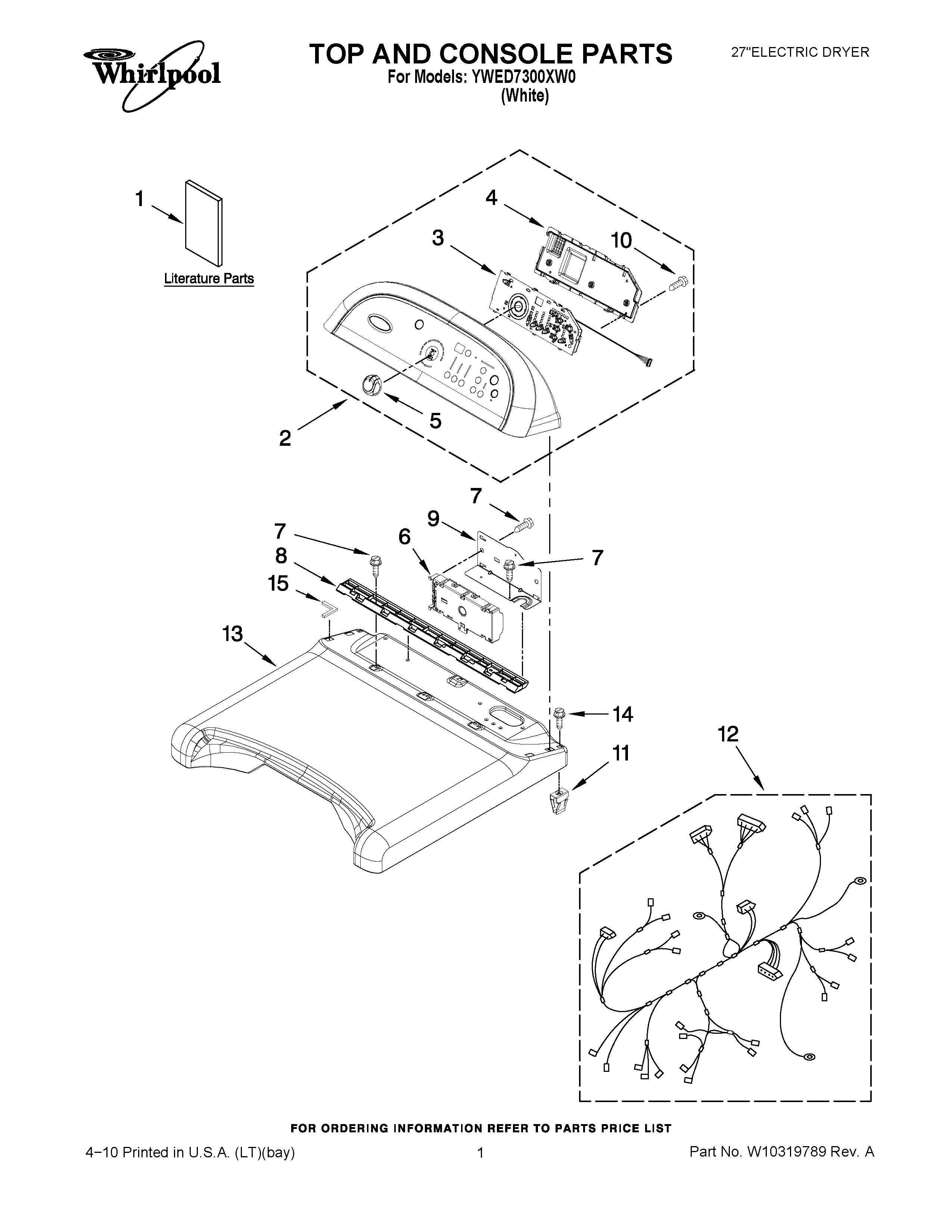

YWED7300XW0 01 – TOP AND CONSOLE PARTS

YWED7300XW0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED7300XW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	GUIDE, USE & CARE
1	INSTALLATION INSTRUCTION
1	TECH SHEET
2	PANEL, CONSOLE
3	USER INTERFACE
4	8564265 Whirlpool Cover
5	WPW10211335 Whirlpool Knob
6	CONTROL ELECTRONIC
7	WP33001882 Whirlpool Screw
8	Bracket, Console
9	BRACKET, MACHINE CONTROLLER
10	WP4449745 Whirlpool Screw
11	W10112673 Whirlpool Clip
12	HARNESS, ELECTRIC
13	TOP
14	W10131402 Whirlpool Screw
15	W10185554 Whirlpool Seal Assembly
