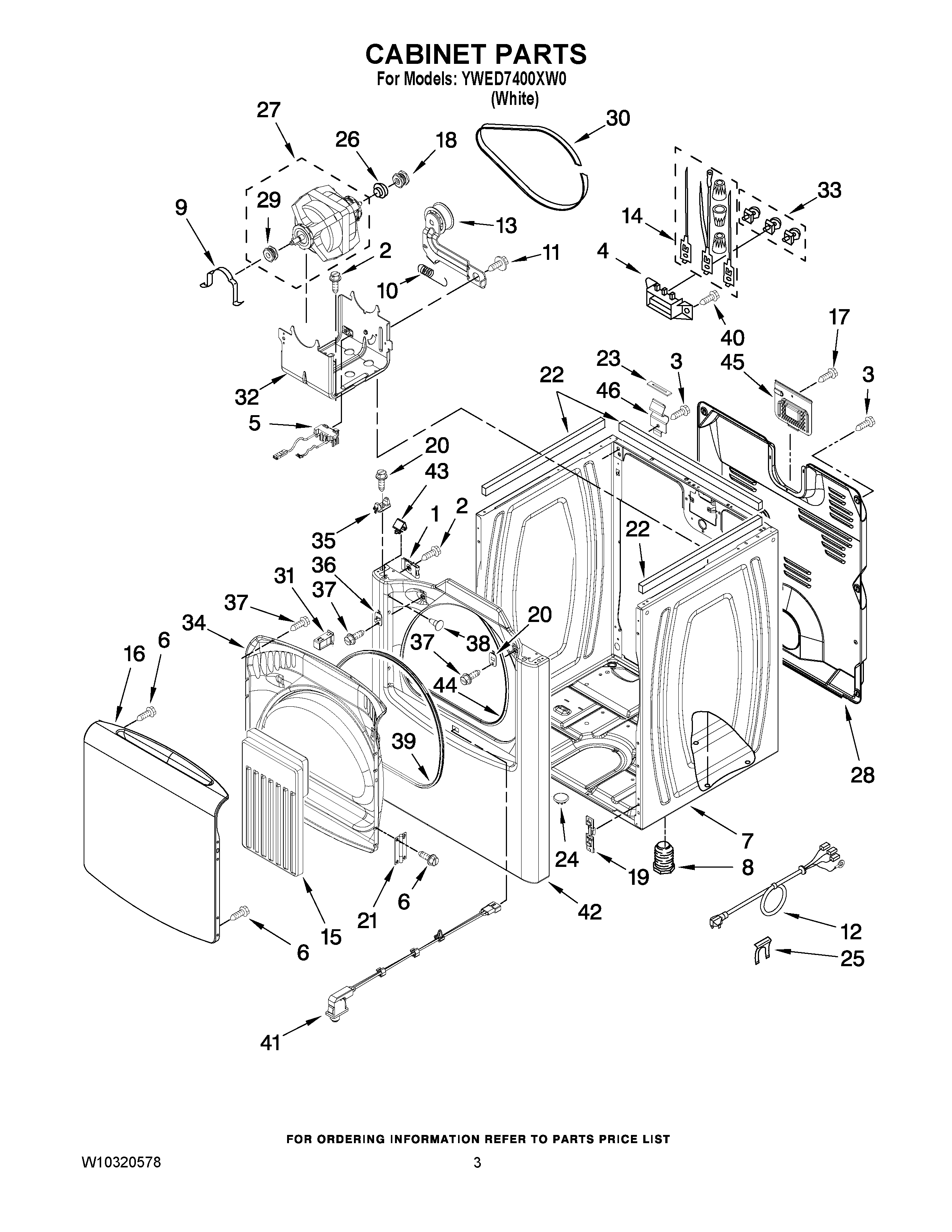

YWED7400XW0 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	Clip, Ground (2)
2	WP3390631 Whirlpool Screw
3	WP693995 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	WPW10411937 Whirlpool Switch
6	WP488627 Whirlpool Refrigerator Screw
7	W10223154 Whirlpool Cabinet Assembly
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	Cord, Power
13	WPW10547292 Whirlpool Dryer Idler Pulley
14	279318 Whirlpool Terminal
15	FILLER, DOOR
16	WP8571361 Whirlpool Door
17	W10850756 Whirlpool Screw
18	WP8547171 Whirlpool Motor Pulley
19	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
20	WPW10111888 Whirlpool Plate Assembly
21	WP8565018 Whirlpool Hinge
22	WPW10157932 Whirlpool Seal Foam
23	18849 Whirlpool Pad
24	8578560 Whirlpool Plug
25	W11712577 Whirlpool Clip
26	WP3393657 Whirlpool Belt Retainer
27	WPW10448896 Whirlpool Drive Motor
28	Panel, Rear
29	PULLEY, BLOWER
30	WP8547157 Whirlpool Dryer Drum Drive Belt
31	WPW10111905 Whirlpool Dryer Door Catch
32	WPW10308685 Whirlpool Base
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	DOOR INNER
35	WP8568303 Whirlpool Lock Assembly
36	W10295405 Whirlpool Strike
37	WP3400805 Whirlpool Screw Assembly
38	PLUG, HOLE
39	W10239307 Whirlpool Door Seal
40	WP308685 Whirlpool Microwave Screw
41	W10201785 Whirlpool See Note Substitutions by Model Number
42	W10312757 Whirlpool Oven Panel
43	WP8576625 Whirlpool Lock
44	W10044490 Whirlpool Seal Assembly
45	WPW10110241 Whirlpool Cover Assembly
46	WP8066217 Whirlpool Hinge
