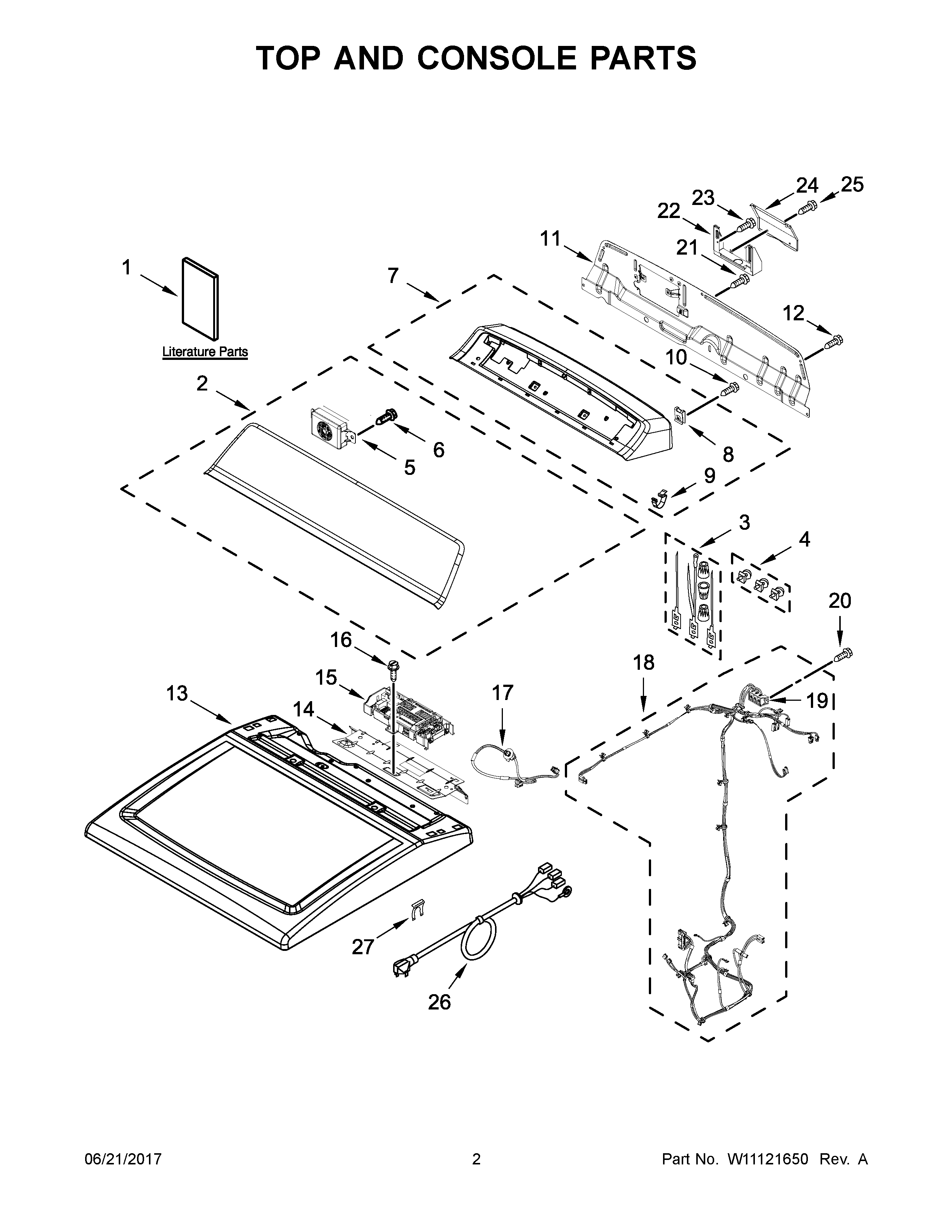

YWED7500GC0 02 – TOP AND CONSOLE PARTS

YWED7500GC0 02 – TOP AND CONSOLE PARTS

Written by

in

YWED7500GC0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AGUIDE, USE AND CARE
1INSTALLATION INSTRUCTIONS
1BTECH SHEET
1CQUICK START GUIDE
1DENERGY GUIDE
2W11124277 Whirlpool Overlay
2AW11124268 Whirlpool Console Assembly
3279318 Whirlpool Terminal
4279393 Whirlpool Terminal Block Screw and Nut Kit
5W11123146 Whirlpool Speaker
6W11631670 Whirlpool Screw
7AW11124266 Whirlpool Console
7W11124264 Whirlpool Console
8W11213336 Whirlpool Nut
9WP8312709 Whirlpool Endcap Clip
10WP9740848 Whirlpool Dishwasher Screw
11W11089307 Whirlpool Rear Panel
12W10853898 Whirlpool Screw
13TOP (WHITE)
13AW11641122 Whirlpool Top
14W11431865 Whirlpool Bracket
15W11124284-includeCORE Whirlpool W11124284 Washer Electronic Control Board + Core
16WP488729 Whirlpool Refrigerator Door Screw
17W10906300 Whirlpool Wire Harness
18MAIN HARNESS
19WP3397659 Whirlpool Terminal Block
20WP308685 Whirlpool Microwave Screw
21W10850756 Whirlpool Screw
22W11032547 Whirlpool Housing
23WP693995 Whirlpool Screw
24W11112408 Whirlpool Cover
25WP3390631 Whirlpool Screw
26W11710615 Whirlpool Cord-Power
27W11712577 Whirlpool Clip
