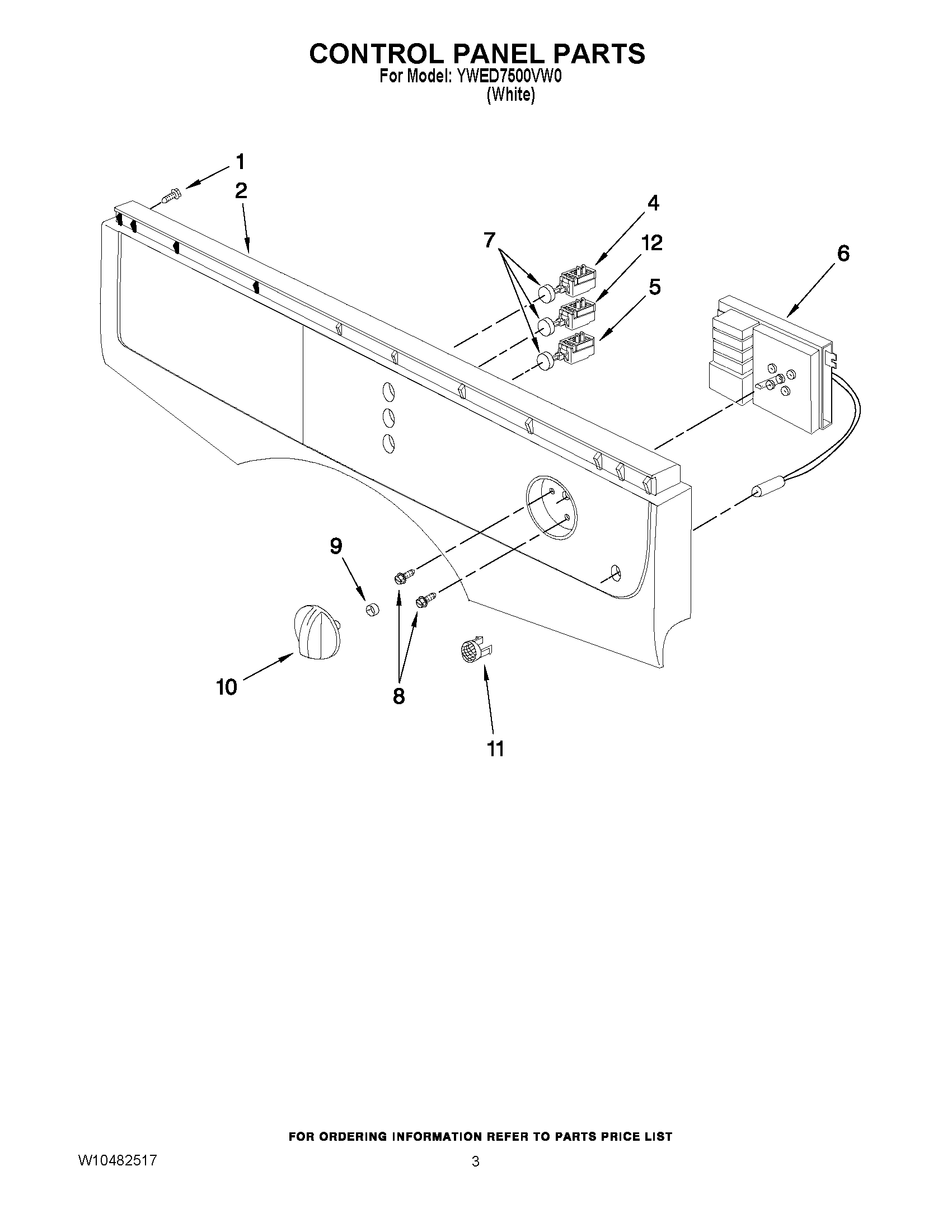

YWED7500VW0 02 – CONTROL PANEL PARTS

Written by

Products

Position	Product
1	SCREW
2	W10205135 Whirlpool Control Panel
4	280110 Whirlpool Plug Switch
5	SWITCH & BUTTON ASSEMBLY (ON/OFF)
6	WPW10404695 Whirlpool Timer
7	Button, Push
8	8169479 Whirlpool Microwave Screw
9	WP8182361 Whirlpool Spring
10	W10233963 Whirlpool Control Knob
11	8182532 Whirlpool Lens Assembly
12	SWITCH & BUTTON ASSEMBLY (TEMPERATURE)
