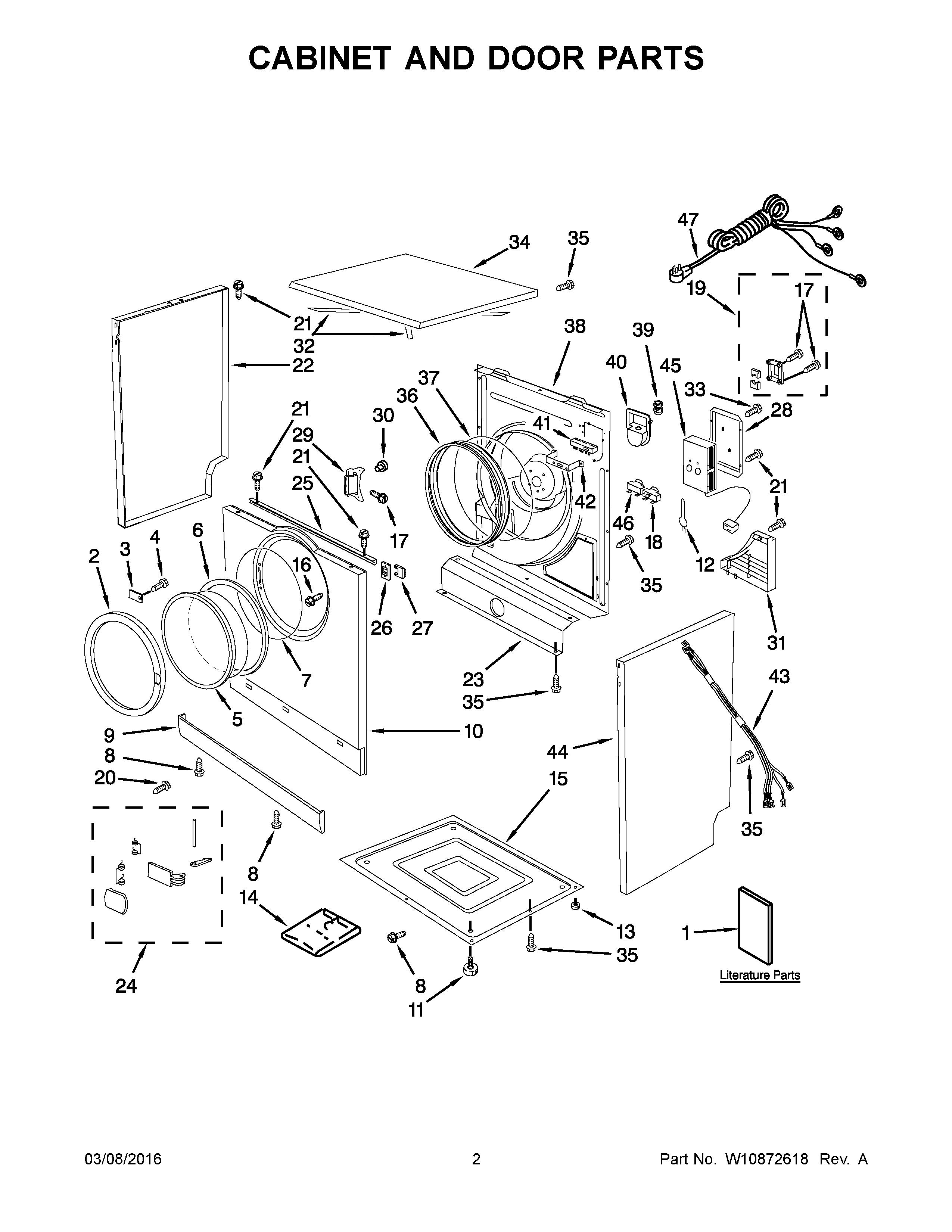

YWED7500VW2 02 – CABINET AND DOOR PARTS

Products

Position	Product
1A	WIRING DIAGRAM
1	USE & CARE GUIDE
2	WP8182406 Whirlpool Frame
3	Retainer Insert (Glass Door)
4	WPW10253196 Whirlpool Screw
5	WP8182516 Whirlpool Door Glass
6	W10483230 Whirlpool Frame Assembly
7	Gasket, Door
8	SCREW
9	Toe Panel
11	WP8182479 Whirlpool Leveling Feet
12	8183097 Whirlpool Spring Assembly
13	WP12990527 Whirlpool Microwave Screw
14	Kit, Stack
15	BASE
16	8182401 Whirlpool Screw
17	8183089 Whirlpool Screw
18	THERMOSTAT, (TCO) (150C)
19	Support, Drum Shaft
20	SCREW
21	Screw
22	8182509 Whirlpool Panel
23	8182535 Whirlpool Panel
24	Kit, Door Handle
25	8182511 Whirlpool Bracket
26	Plate, Door Switch
27	WP8182530 Whirlpool Door Switch
28	Cover, Element
30	CABINET (NOT A SERVICEABLE PART)
31	8182510 Whirlpool Cover Assembly
32	8183109 Whirlpool Bracket
33	Screw, Element Cover
34	8182524 Whirlpool Top
35	SCREW
36	WP8182507 Whirlpool Seal
37	8182540 Whirlpool Retainer
38	8182590 Whirlpool Rear Panel
39	8182506 Whirlpool Nut
40	8182514 Whirlpool Cover
41	Terminal Block
42	8182513 Whirlpool Bracket
43	W10870280 Whirlpool Wire Harness
44	WP8182520 Whirlpool Panel Assembly
45	WP8182528 Whirlpool Heating Element
46	W10843940 Whirlpool Safety Thermostat
47	Power Cord
