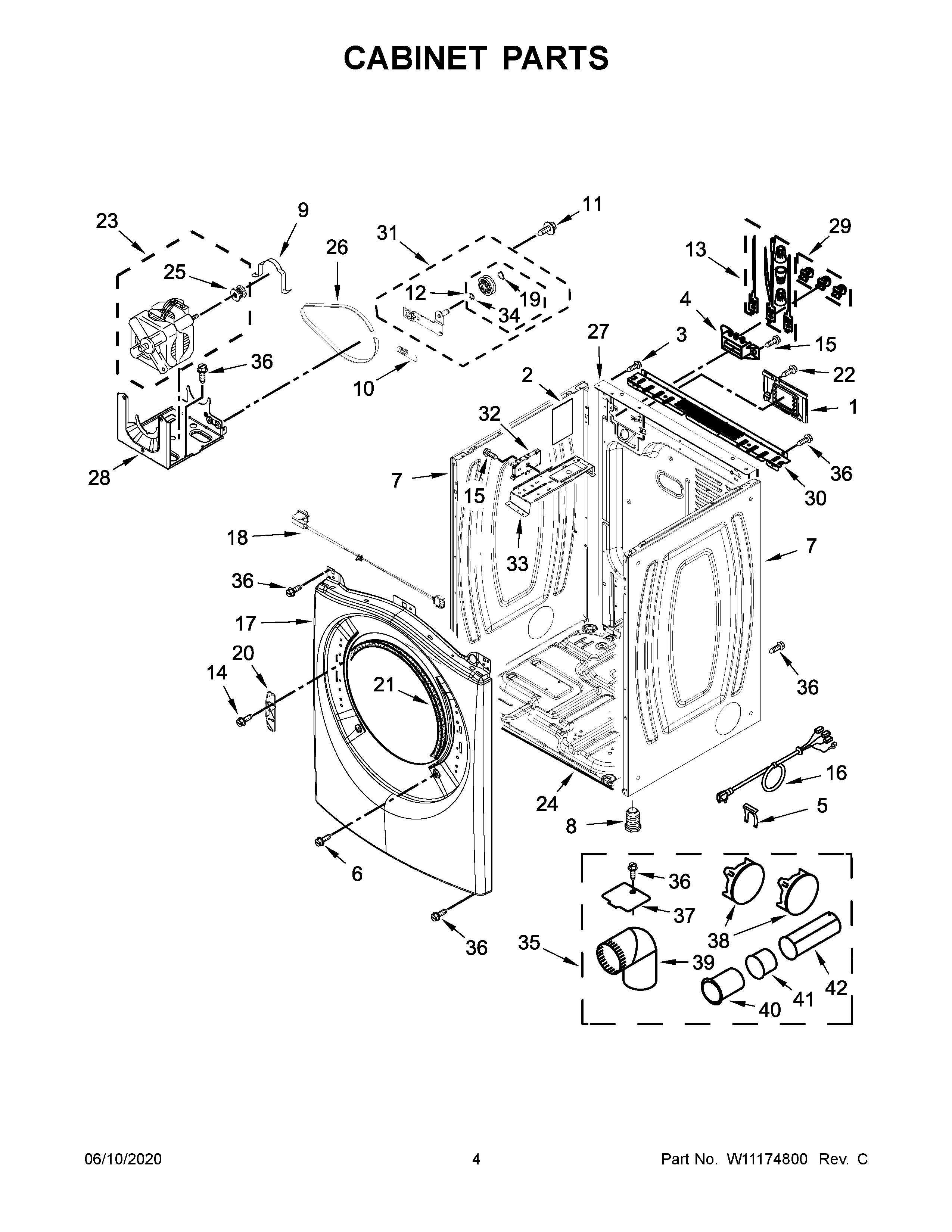

YWED75HEFW1 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	W11409002 Whirlpool Pad
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W11712577 Whirlpool Clip
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	279640 Whirlpool Dryer Idler Pulley Kit
13	279318 Whirlpool Terminal
14	SCREW
15	WP489463 Whirlpool Refrigerator Screw
16	W11710615 Whirlpool Cord-Power
17	WPW10363953 Whirlpool Dishwasher Panel
18	WPW10350906 Whirlpool Door Switch
19	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
20	WPW10208250 Whirlpool Strike
21	WP3387242 Whirlpool Seal
22	SCREW
23	MOTOR-DRVE
24	W11215531 Whirlpool Base
25	WP8066184 Whirlpool Dryer Motor Pulley
26	661570V Whirlpool Dryer Drum Belt
27	W10487431 Whirlpool Rear Panel
28	W11481730 Whirlpool Bracket
29	279393 Whirlpool Terminal Block Screw and Nut Kit
30	WPW10208382 Whirlpool Dryer Bracket
31	W10837240 Whirlpool Dryer Idler Pulley
32	W11537223-includeCORE Whirlpool W11537223 Refrigerator Electronic Control
33	BRACKET, CONTROL
34	WPW10121334 Whirlpool Washer
35	W10323246 Whirlpool Dryer Vent Kit 4-Way
36	WP488729 Whirlpool Refrigerator Door Screw
37	WPW10354249 Whirlpool Cover
38	WPW10404617 Whirlpool Plug Assembly
39	WPW10416072 Whirlpool Elbow
40	WP8563747 Whirlpool Exhaust Pipe
41	WPW10331278 Whirlpool Exhaust Pipe
42	WP8563749 Whirlpool Exhaust Pipe
