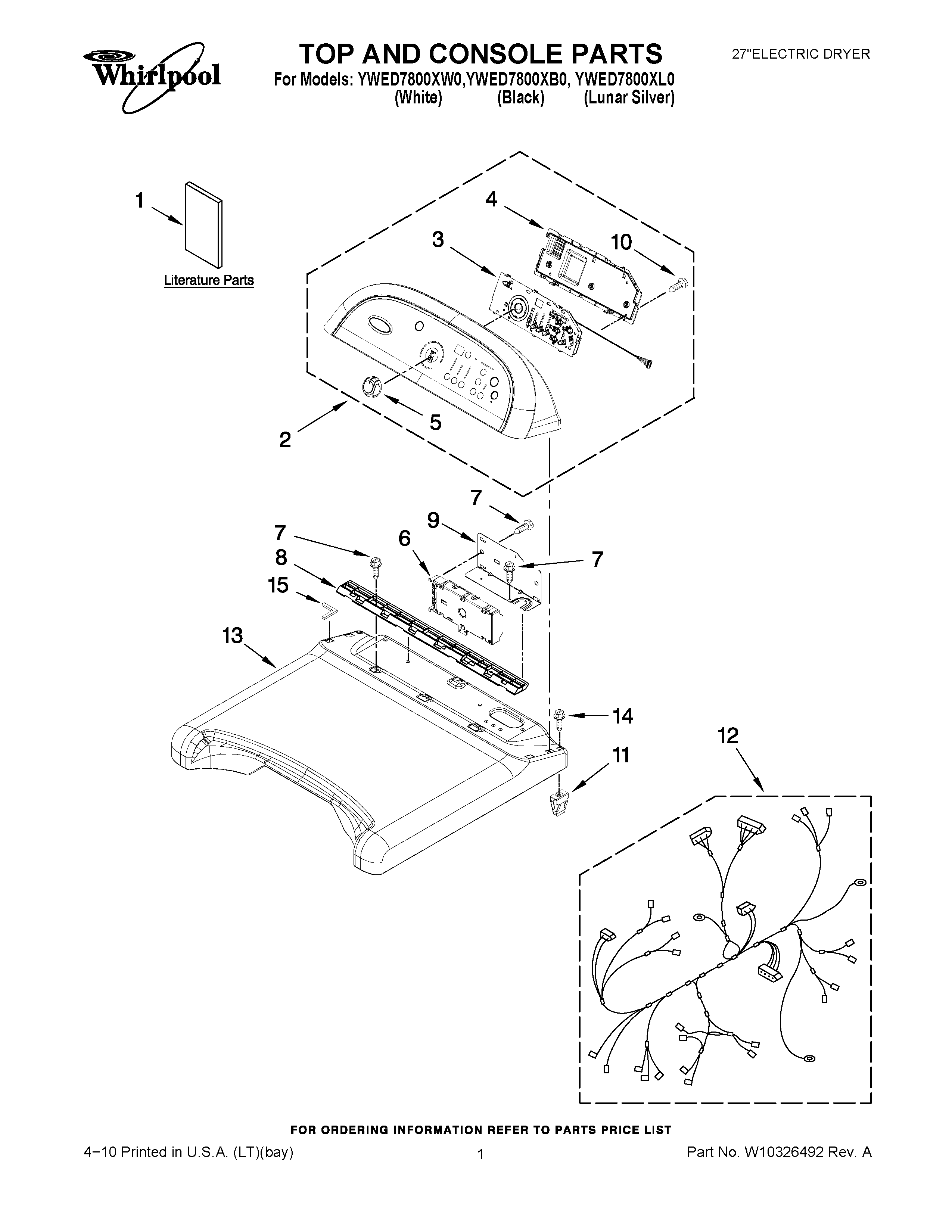

YWED7800XL0 01 – TOP AND CONSOLE PARTS

YWED7800XL0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED7800XL0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1GUIDE, USE & CARE
1INSTALLATION INSTRUCTION
2PANEL, CONSOLE (BLACK)
2PANEL, CONSOLE (WHITE)
2PANEL, CONSOLE (SILVER)
3WPW10298625 Whirlpool Electronic Control Board
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6CONTROL ELECTRONIC
7WP33001882 Whirlpool Screw
8Bracket, Console
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10112673 Whirlpool Clip
12HARNESS, ELECTRIC
13TOP
13TOP (BLACK)
13TOP (SILVER)
14W10131402 Whirlpool Screw
15W10185554 Whirlpool Seal Assembly
