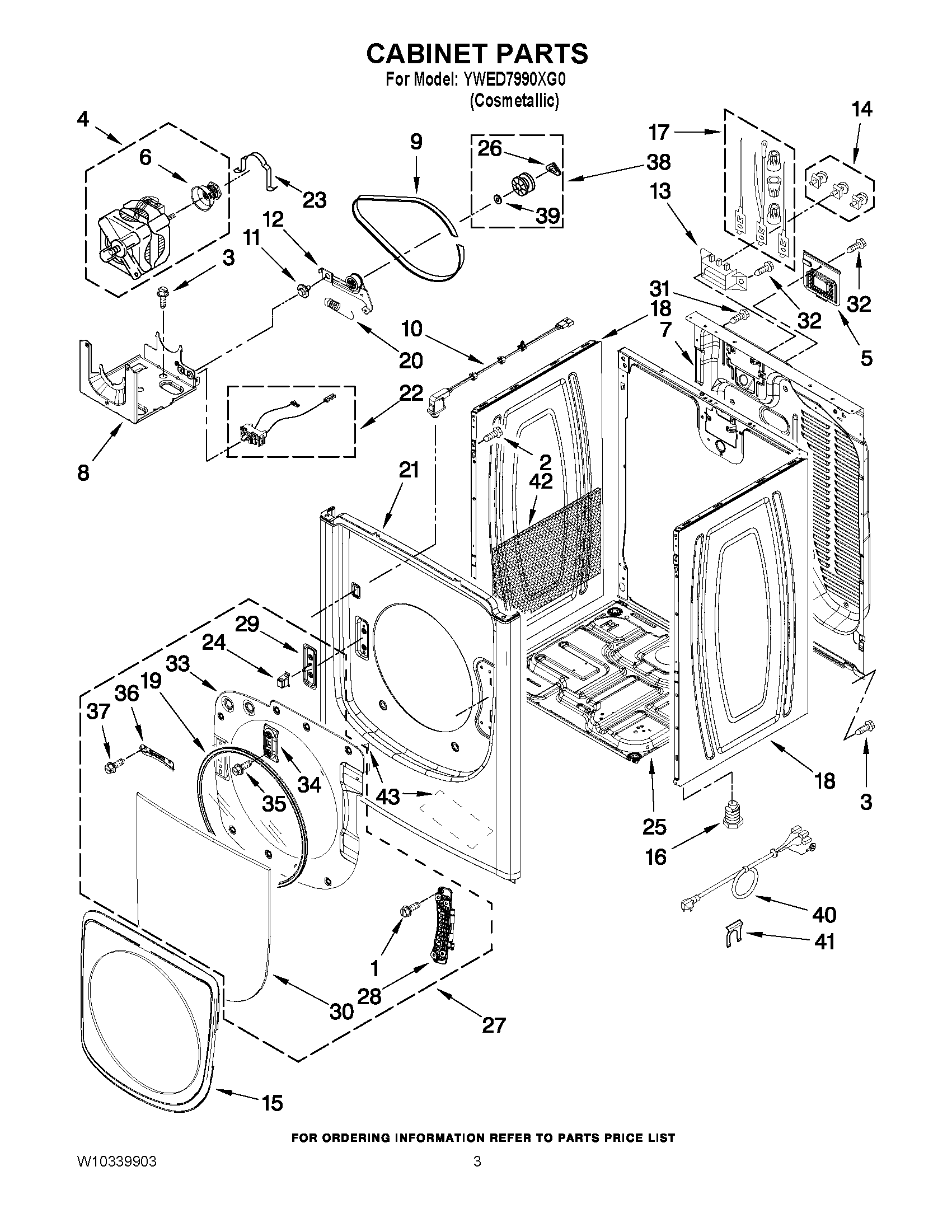

YWED7990XG0 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1SCREW, M5-0.5 X 10
2SCREW
3WP693995 Whirlpool Screw
4279787 Whirlpool Dryer Drive Motor
5WPW10316167 Whirlpool Dishwasher Terminal Cover
6W10837625 Whirlpool Dryer Motor Pulley
7PANEL, REAR
8W11481730 Whirlpool Bracket
9661570V Whirlpool Dryer Drum Belt
10WPW10338189 Whirlpool Door Switch
11WP3389420 Whirlpool Screw
12W10837240 Whirlpool Dryer Idler Pulley
13WP3397659 Whirlpool Terminal Block
14279393 Whirlpool Terminal Block Screw and Nut Kit
15DOOR OUTER ASSEMBLY
17279318 Whirlpool Terminal
18PANEL, SIDE
19W11126230 Whirlpool Seal
20WPW10446781 Whirlpool Spring
21PANEL, FRONT
22WPW10411937 Whirlpool Switch
23WP660658 Whirlpool Clamp
24W11240283 Whirlpool Catch Assembly
25W11215531 Whirlpool Base
26WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
27DOOR INNER ASSEMBLY
28HINGE, ASSEMBLY
29STRIKE, DOOR
30W11310036 Whirlpool Door Glass
31W10850756 Whirlpool Screw
32WP90767 Whirlpool Screw
33DOOR, INNER
34BEZEL, DOOR CATCH
35SCREW
36W10208252 Whirlpool Retainer
37SCREW
38279640 Whirlpool Dryer Idler Pulley Kit
39WPW10121334 Whirlpool Washer
40Cord, Power
41W11712577 Whirlpool Clip
42W10123956 Whirlpool Sound Absorber
43W10123957 Whirlpool Sound Absorber
