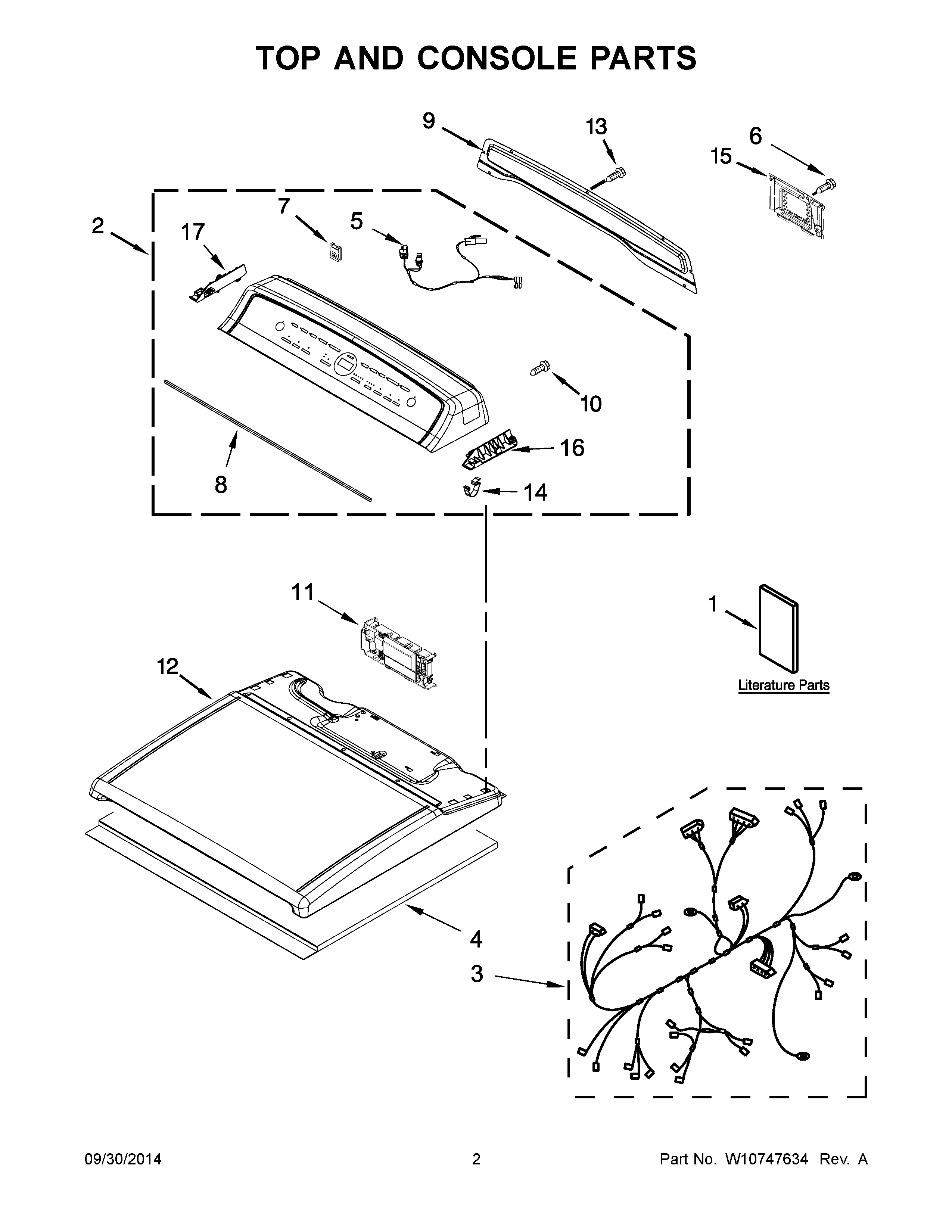

YWED8000DW0 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1BTECH SHEET
1AGUIDE, USE AND CARE
1CENERGY GUIDE
2W11050696 Whirlpool Console
3WIRING HARNESS, MAIN
4W10123956 Whirlpool Sound Absorber
5W10593673 Whirlpool Wire Harness
6W10728156 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11CONTROL, ELECTRONIC
12W11227373 Whirlpool Top
13W11311945 Whirlpool Refrigerator Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10316167 Whirlpool Dishwasher Terminal Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
