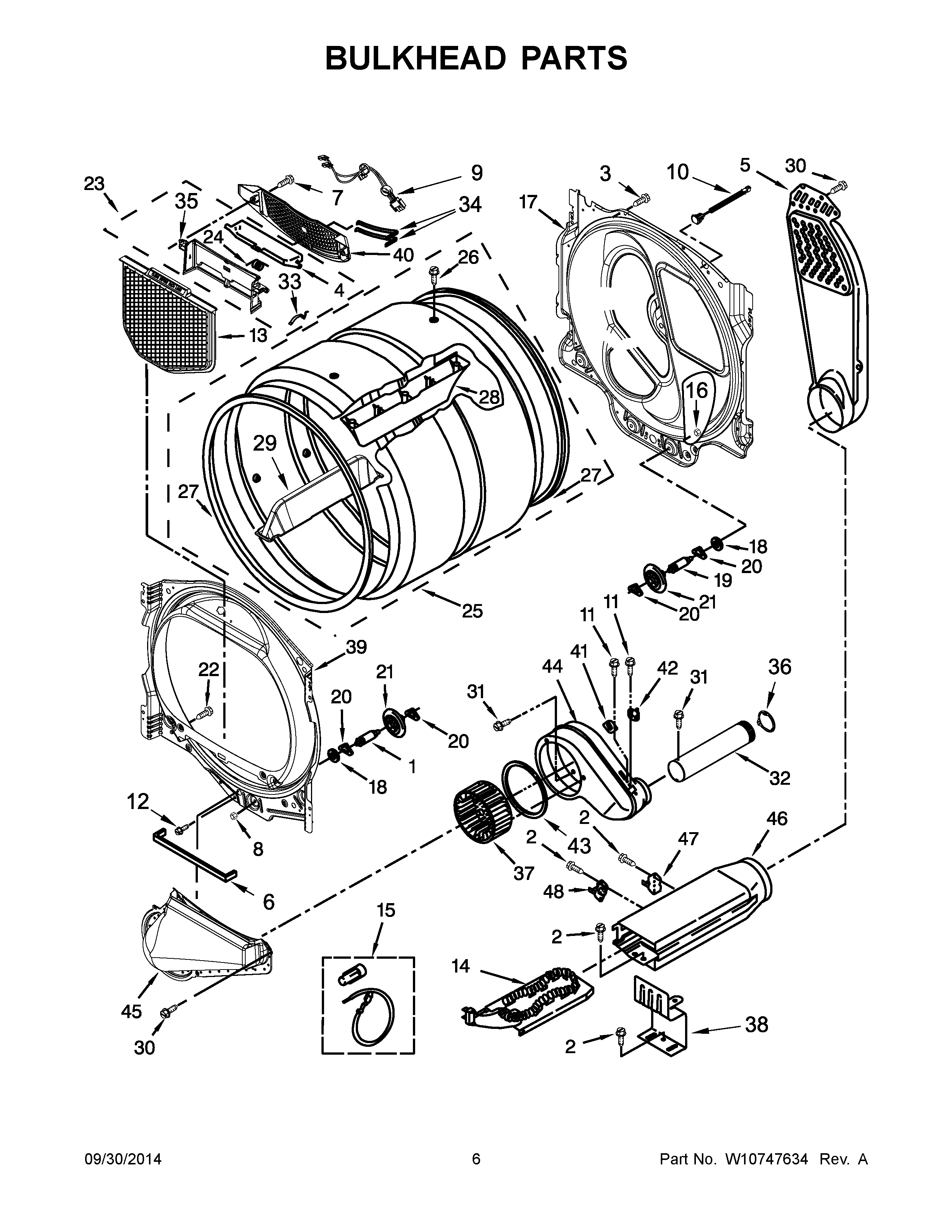

YWED8000DW0 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP489463 Whirlpool Refrigerator Screw
3	WP488729 Whirlpool Refrigerator Door Screw
5	W11104017 Whirlpool Air Duct Assembly
6	SEAL, HOUSING OUTLET TO LINT DUCT
7	WP3387230 Whirlpool Screw
8	WPW10080210 Whirlpool Nut
9	W11161899 Whirlpool Wire
10	WPW10629046 Whirlpool Light Bulb
12	WP308685 Whirlpool Microwave Screw
13	W10859086 Whirlpool Dryer Lint Screen
14	ELEMENT, HEATER
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11135007 Whirlpool Dryer Bulkhead
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP90767 Whirlpool Screw
24	W11242876 Whirlpool Out Housing
25	W10626460 Whirlpool Drum
26	W10853898 Whirlpool Screw
27	W11189144 Whirlpool Felt Seal
28	W10767090 Whirlpool Drum Baffle
29	W10767074 Whirlpool Drum Baffle
30	WP693995 Whirlpool Screw
32	W10608817 Whirlpool Exhaust Pipe
33	W10608815 Whirlpool Clip
34	W11165163 Whirlpool Electrode Assembly
35	W10608807 Whirlpool Out Housing
36	WPW10344699 Whirlpool Collar
37	WP697772 Whirlpool Dryer Blower Wheel
38	8066099 Whirlpool Bracket
39	W10861007 Whirlpool Bulkhead Assembly
40	W10608813 Whirlpool Outside Grille
41	FUSE-THRML
42	WP8577274 Whirlpool Dryer Thermistor
43	WP697770 Whirlpool Blower Cover Plate Seal
44	W11246350 Whirlpool Housing
45	W10868982 Whirlpool Lint Duct
46	W10802681 Whirlpool Box Assembly
47	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48	WP8557403 Whirlpool Thermostat
