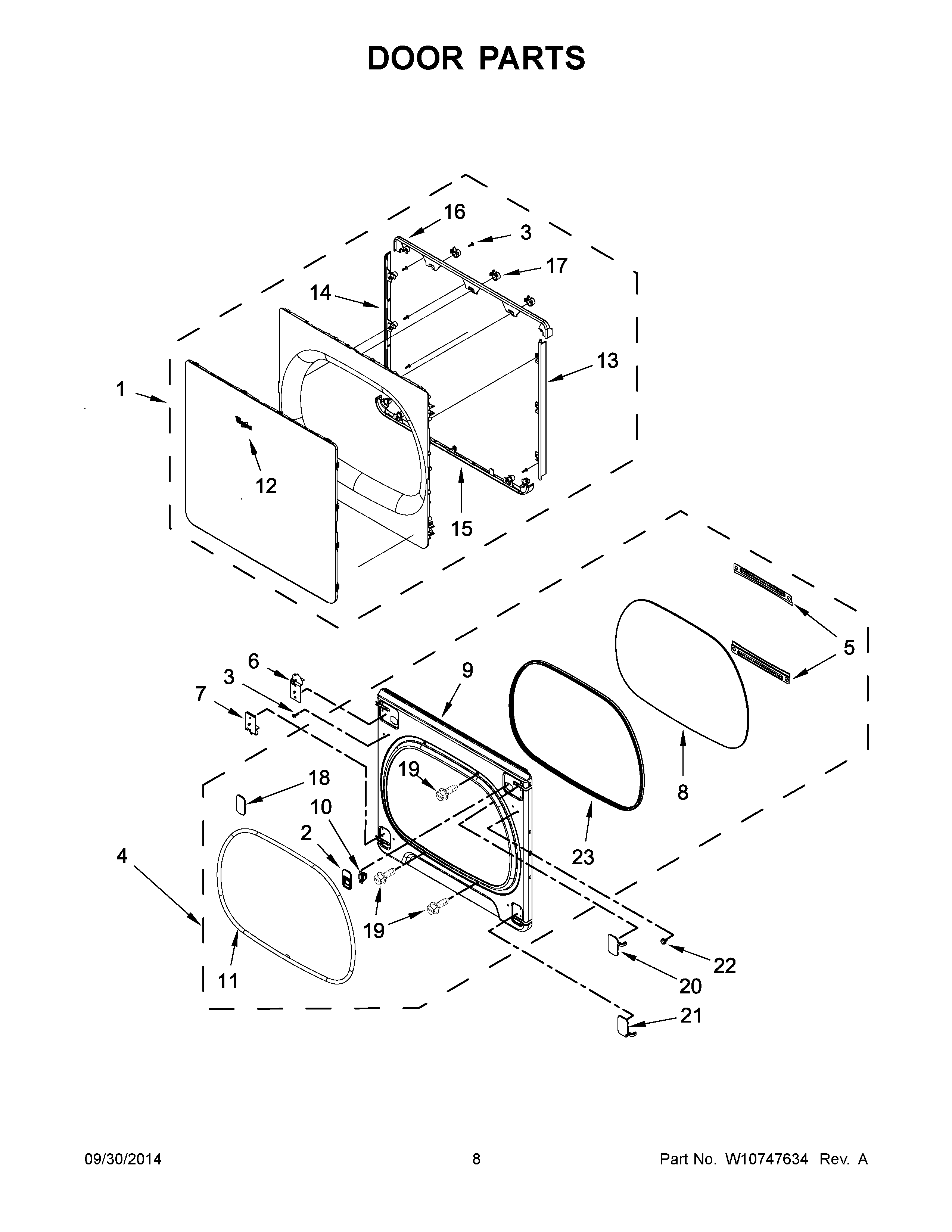

YWED8000DW0 05 – DOOR PARTS

Products

Position	Product
1	W10614976 Whirlpool Door
2	W11103932 Whirlpool Bezel Assembly
3	SCREW
4	W10916628 Whirlpool Door Assembly
5	RETAINER, WINDOW
6	HINGE ASSEMBLY-BLADE, DOOR (RIGHT) (WHITE)
7	W10623819 Whirlpool Hinge
8	WINDOW, DOOR
9	W10631394 Whirlpool Door
10	W11429587 Whirlpool Catch Assembly
11	W10614993 Whirlpool Door Seal
12	WPW10393264 Whirlpool Refrigerator Nameplate
13	TRIM, HINGE SIDE
14	TRIM, SIDE
15	TRIM, BOTTOM
16	TRIM, TOP
17	W10614985 Whirlpool Cap Assembly
18	W10631410 Whirlpool Plate
19	WP488627 Whirlpool Refrigerator Screw
20	W10631396 Whirlpool Cover
21	W10631395 Whirlpool Cover Assembly
22	8572266 Whirlpool Bumper Assembly
23	SEAL, WINDOW
