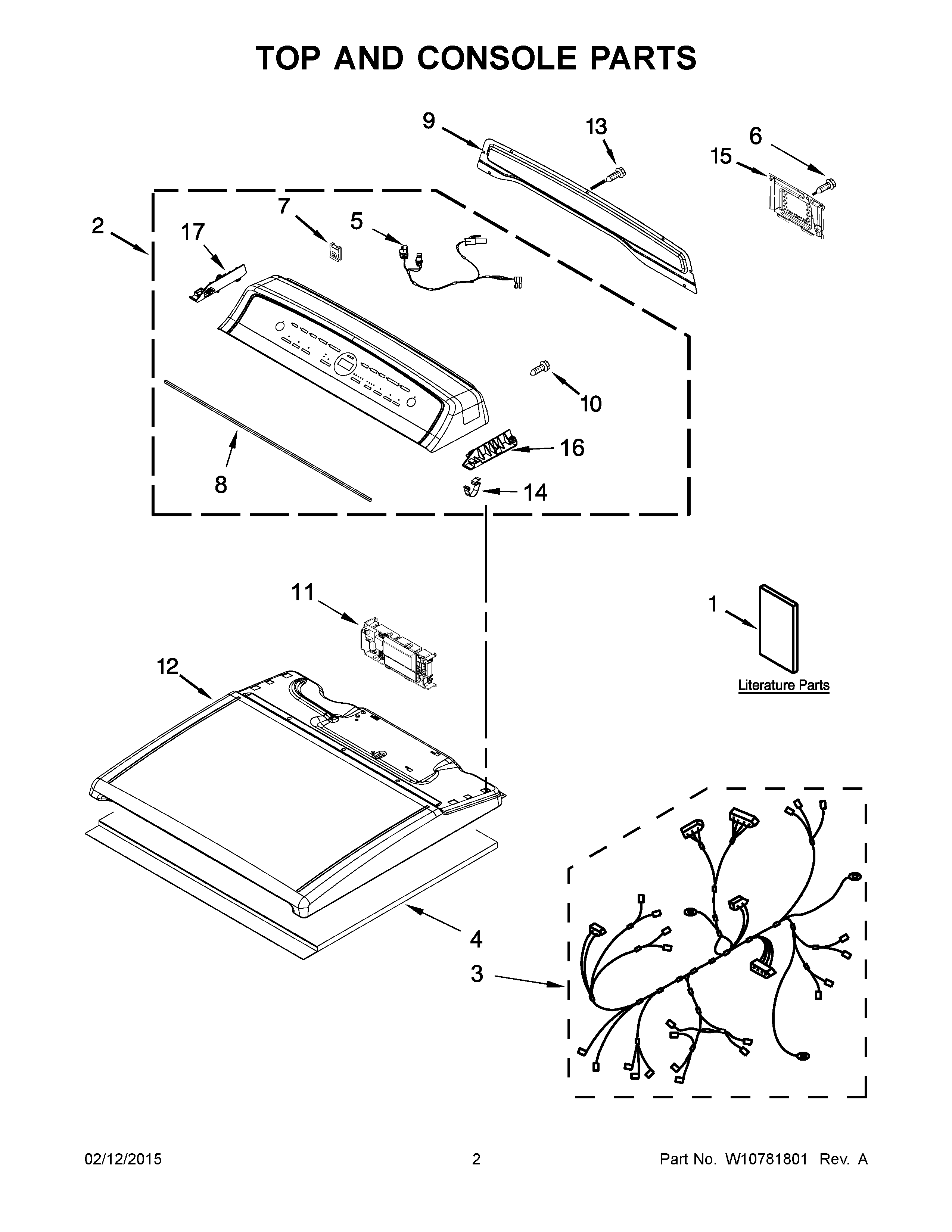

YWED8000DW1 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1	INSTALLATION INSTRUCTIONS
1D	QUICKSTART GUIDE
1B	TECH SHEET
1A	GUIDE, USE AND CARE
1C	ENERGY GUIDE
2	W11050696 Whirlpool Console
3	WIRING HARNESS, MAIN
4	W10123956 Whirlpool Sound Absorber
5	W10593673 Whirlpool Wire Harness
6	W10728156 Whirlpool Screw
7	W11213336 Whirlpool Nut
8	W11721376 Whirlpool Seal Assembly
9	W10622402 Whirlpool Rear Panel
10	W10853898 Whirlpool Screw
11	CONTROL, ELECTRONIC
12	W11227373 Whirlpool Top
13	WP9740848 Whirlpool Dishwasher Screw
14	WP8312709 Whirlpool Endcap Clip
15	WPW10316167 Whirlpool Dishwasher Terminal Cover
16	W10631629 Whirlpool Bracket
17	W10631630 Whirlpool Bracket Assembly
