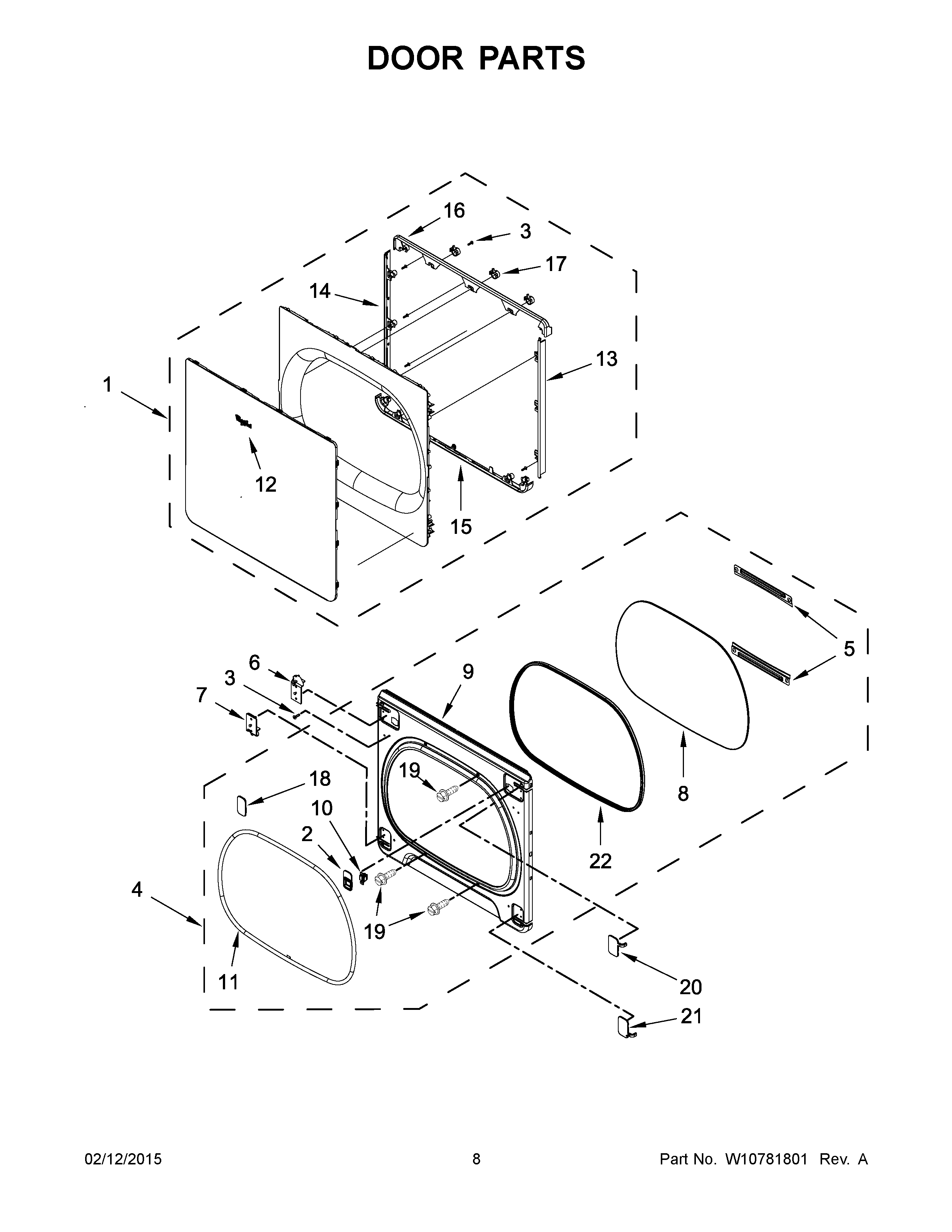

YWED8000DW1 05 – DOOR PARTS

YWED8000DW1 05 – DOOR PARTS

Written by

in

YWED8000DW1 05 – DOOR PARTS

Products

PositionProduct
1W10614976 Whirlpool Door
2W11103932 Whirlpool Bezel Assembly
3SCREW
4W10614997 Whirlpool Door
5RETAINER, WINDOW
6W10850044 Whirlpool Hinge
8W10615000 Whirlpool Door Assembly
9DOOR, INNER (WHITE)
10W11429587 Whirlpool Catch Assembly
11W10763835 Whirlpool Door Seal Assembly
12WPW10393264 Whirlpool Refrigerator Nameplate
13TRIM, HINGE SIDE
14TRIM, SIDE
15TRIM, BOTTOM
16TRIM, TOP
17W10614985 Whirlpool Cap Assembly
18W10631410 Whirlpool Plate
19WP488627 Whirlpool Refrigerator Screw
20W10631396 Whirlpool Cover
21W10631395 Whirlpool Cover Assembly
22W10726214 Whirlpool Seal
