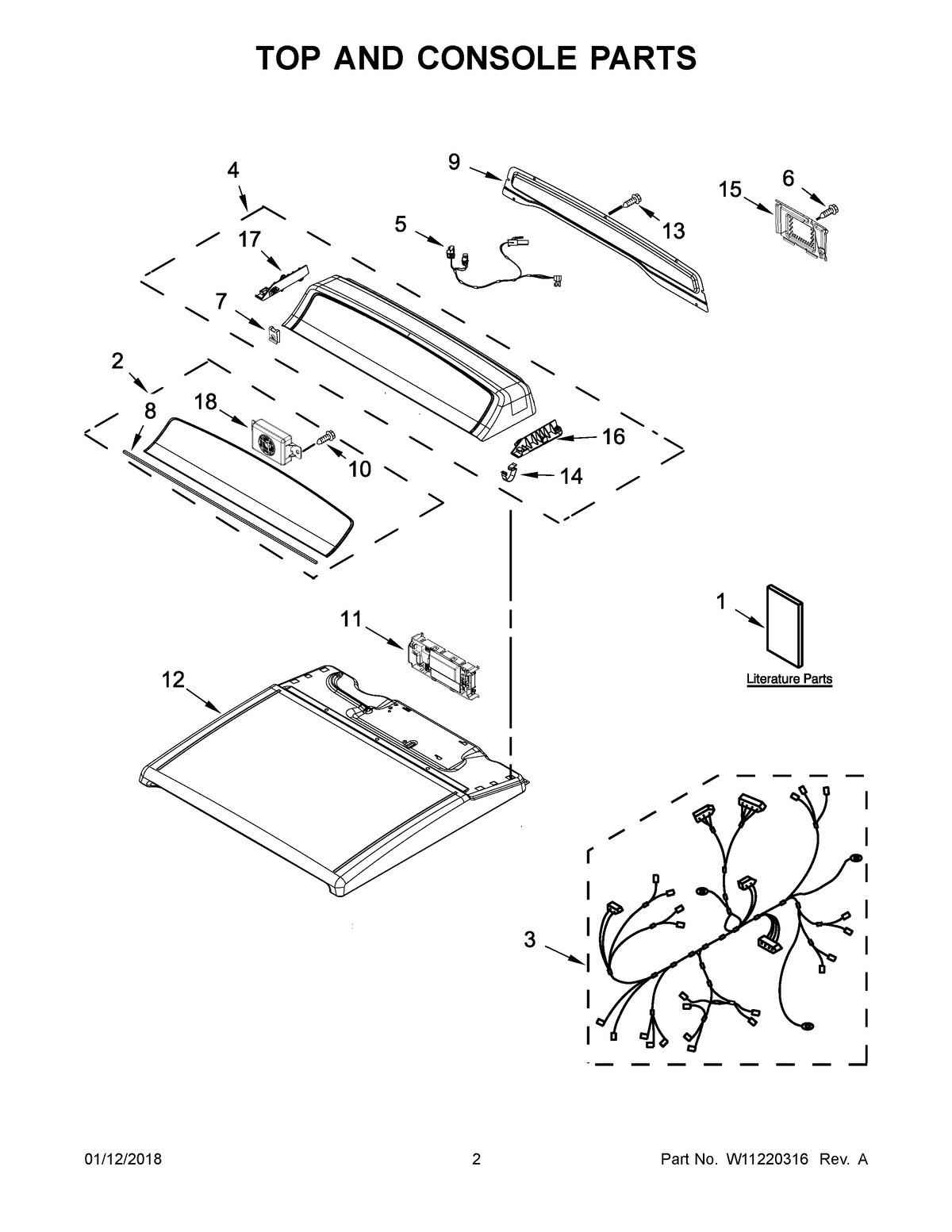

YWED8000DW4 02 – TOP AND CONSOLE PARTS

YWED8000DW4 02 – TOP AND CONSOLE PARTS

Written by

in

YWED8000DW4 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AGUIDE, USE AND CARE
1CENERGY GUIDE
1BTECH SHEET
1INSTALLATION INSTRUCTIONS
1DQUICKSTART GUIDE
2W11133029 Whirlpool Overlay Assembly
3WIRING HARNESS, MAIN
4W11050696 Whirlpool Console
5W10837032 Whirlpool Wire Harness
6W11631670 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11W11133021 Whirlpool Electronic Control Board + Core
12W11227373 Whirlpool Top
13WP9740848 Whirlpool Dishwasher Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10316167 Whirlpool Dishwasher Terminal Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18W11123146 Whirlpool Speaker
