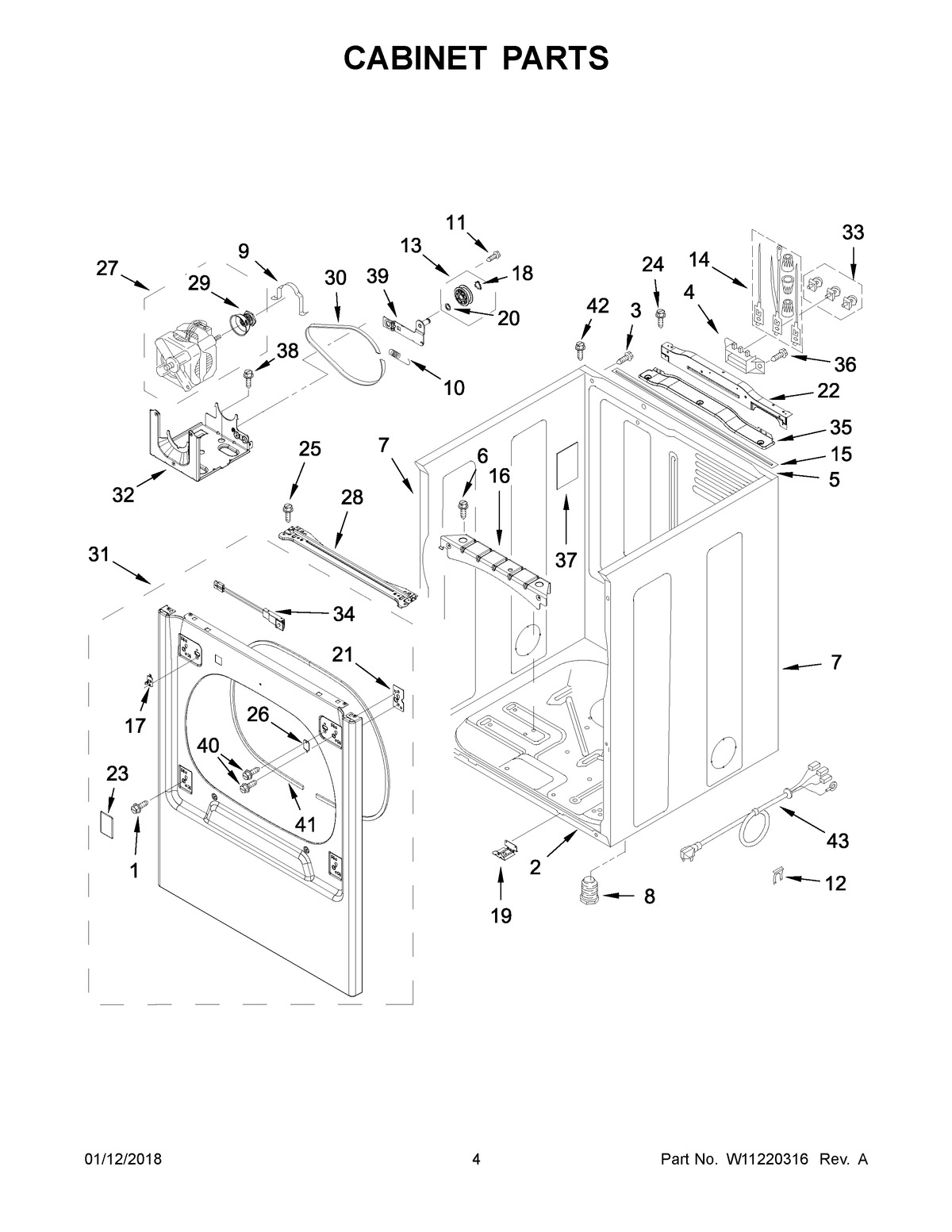

YWED8000DW4 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
NI	W10704365 Whirlpool Dryer Exhaust Kit
1	WP488627 Whirlpool Refrigerator Screw
2	W10613683 Whirlpool Base
3	W10891954 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	W10824895 Whirlpool Rear Panel
6	WP693995 Whirlpool Screw
7	W10633648 Whirlpool Cabinet Assembly
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	W11712577 Whirlpool Clip
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	W10316616 Whirlpool Seal
16	W11282908 Whirlpool Bracket
17	W11163826 Whirlpool Strike
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	SPACER BRACKET, LOWER
20	WPW10121334 Whirlpool Washer
21	BRACKET, HINGE
22	W10622391 Whirlpool Bracket
23	W10590953 Whirlpool Plug
24	SCREW
25	SCREW
26	WPW10111888 Whirlpool Plate Assembly
27	W11105178 Whirlpool Drive Motor
28	BRACE, CAB AND SEAL ASSEMBLY
29	W11568637 Whirlpool Motor Pulley
30	W10849499 Whirlpool Belt
31	W10875869 Whirlpool Panel
32	W10578053 Whirlpool Base Assembly
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	W11036551 Whirlpool Door Switch
35	W10651902 Whirlpool Bracket
36	WP3390631 Whirlpool Screw
37	W11409002 Whirlpool Pad
38	SCREW
39	W10837240 Whirlpool Dryer Idler Pulley
40	W10718190 Whirlpool Screw
41	WP3387242 Whirlpool Seal
42	W10850756 Whirlpool Screw
43	W11710615 Whirlpool Cord-Power
