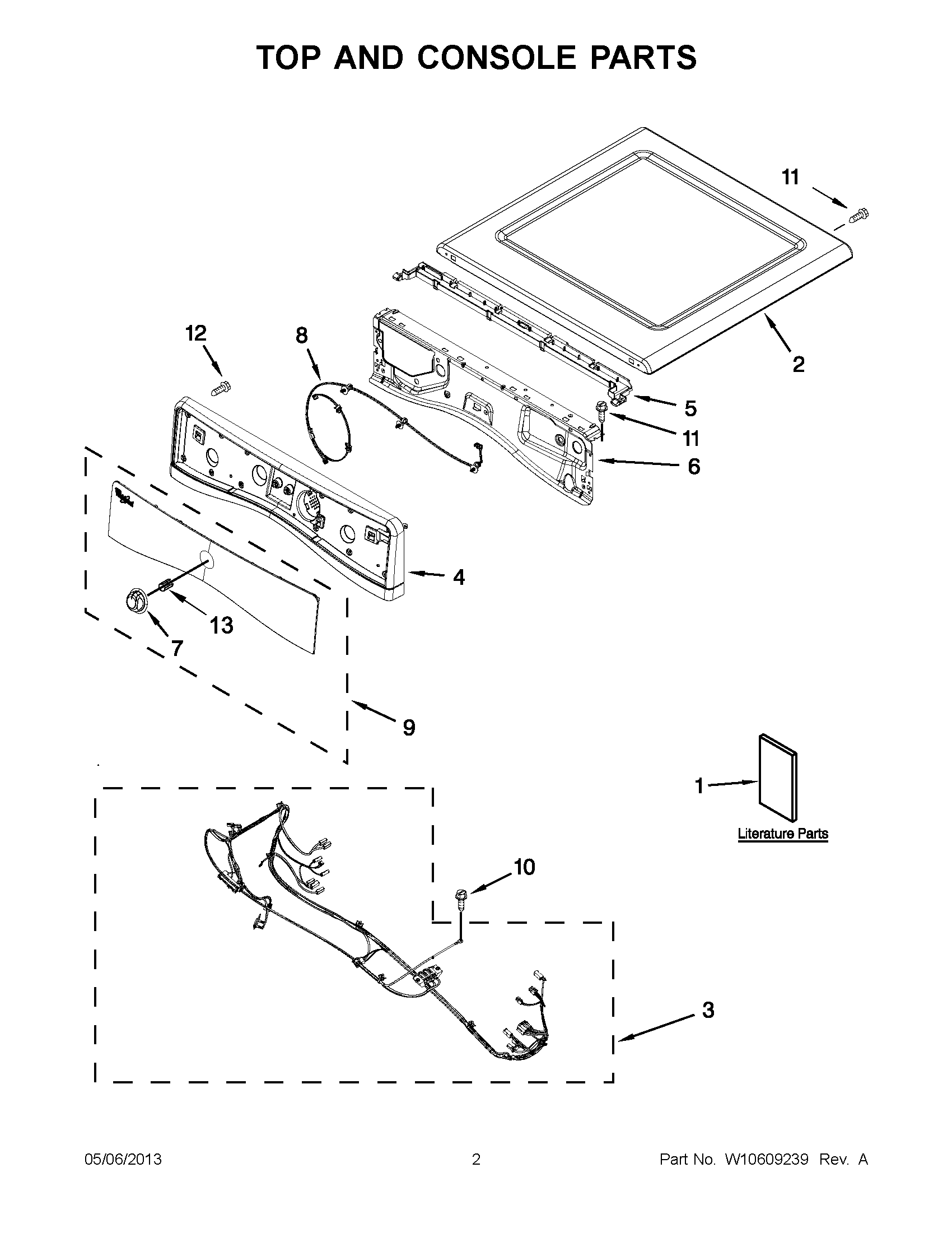

YWED80HEBC0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1WIRING DIAGRAM
2WPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3MAIN, WIRING HARNESS
4WPW10391519 Whirlpool Console
4W10876224 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7KNOB ASSEMBLY
8W11025125 Whirlpool Wire Harness
9WPW10391545 Whirlpool Control Panel
9IML ASSEMBLY (CHROME SHADOW)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
