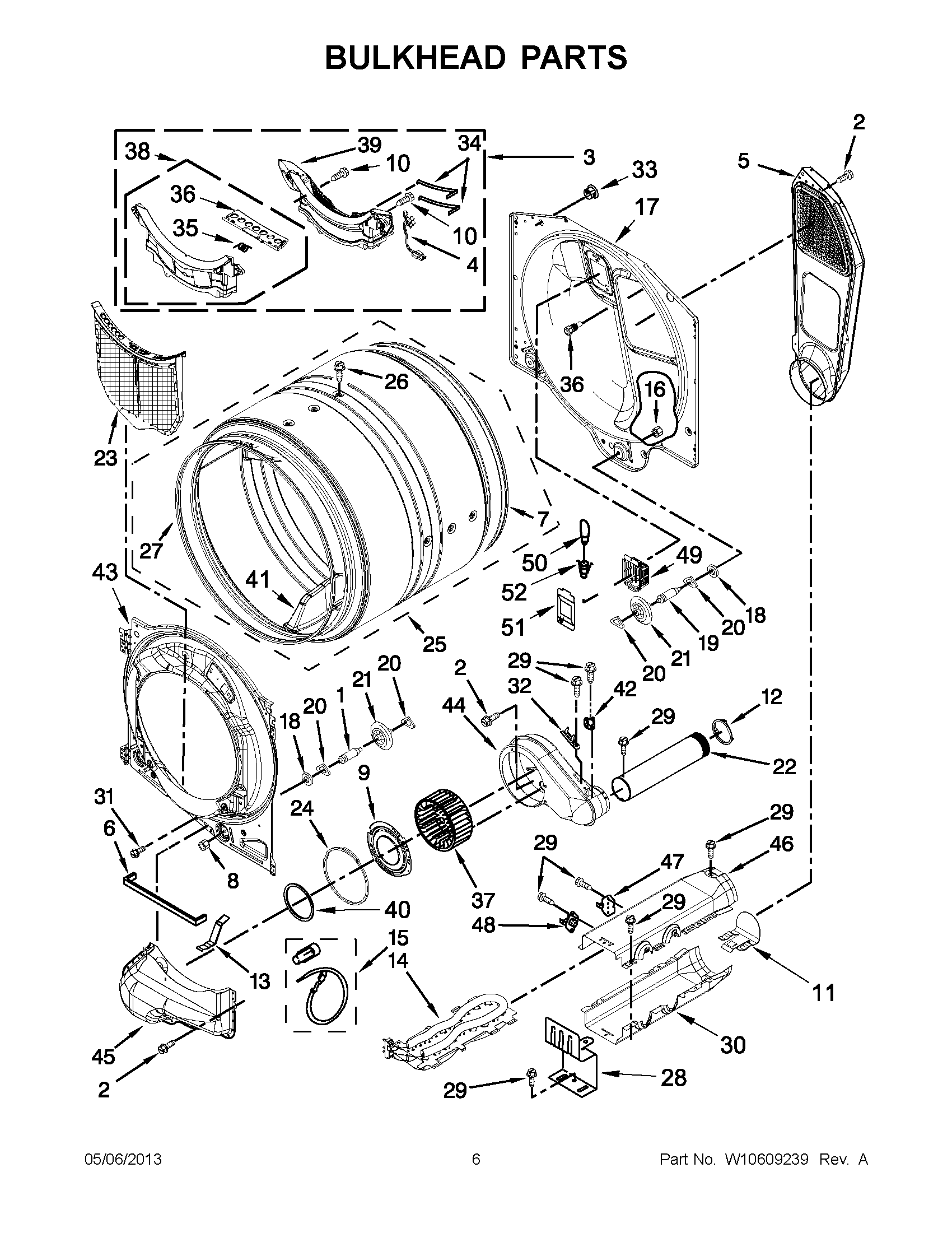

YWED80HEBW0 03 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	HOUSNG-DRYER LINT
4	WPW10298258 Whirlpool Wire Harness
5	WP3387911 Whirlpool Air Duct
6	W11676493 Whirlpool Seal Assembly
7	280114 Whirlpool Dryer Drum Seal
8	WPW10080210 Whirlpool Nut
9	W10211901 Whirlpool Cover Assembly
10	WP3387230 Whirlpool Screw
11	8544776 Whirlpool Clip Assembly
12	WPW10344699 Whirlpool Collar
13	W10414388 Whirlpool Clip
14	WP8544771 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	W11299301 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WPW10342188 Whirlpool Exhaust Pipe
23	SCREEN - LINT. ALPHA W/FELT
24	WP697770 Whirlpool Blower Cover Plate Seal
25	W10508188 Whirlpool Drum
26	W10853898 Whirlpool Screw
27	W11193479 Whirlpool Seal
28	8066099 Whirlpool Bracket
29	WP693995 Whirlpool Screw
30	HOUSING TAB, HEATER BOX
31	W11501418 Whirlpool Refrigerator Screw
32	WP3392519 Whirlpool Dryer Thermal Fuse
33	8529007 Whirlpool Plug
34	WP3387223 Whirlpool Electrode Assembly
35	W11242876 Whirlpool Out Housing
36	W11156832 Whirlpool Air Grille
37	WP697772 Whirlpool Dryer Blower Wheel
38	W10905013 Whirlpool Door
39	W11125442 Whirlpool Outer Grille
40	W10211899 Whirlpool Seal
41	W10416098 Whirlpool Baffle Assembly
42	WP8557403 Whirlpool Thermostat
43	W10459180 Whirlpool Bulkhead Assembly
44	WPW10211911 Whirlpool Housing
45	WPW10211896 Whirlpool Duct Lint
46	WP8544769 Whirlpool Box
47	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48	WP8577274 Whirlpool Dryer Thermistor
49	8578825 Whirlpool Bracket
50	WP22002263 Whirlpool Dryer 10W Light Bulb
51	W11226088 Whirlpool Lens Assembly
52	W11222979 Whirlpool Socket
