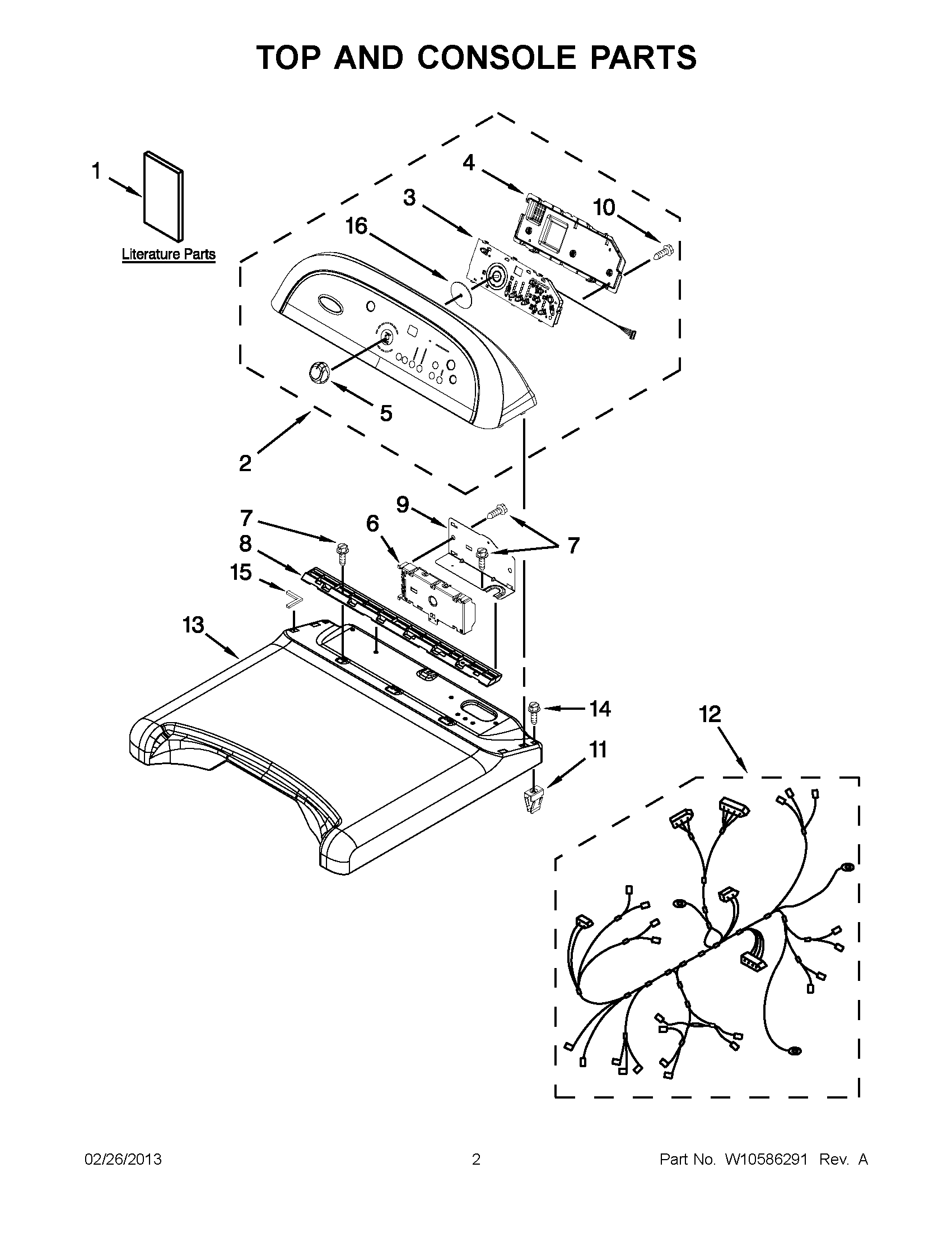

YWED8200YW2 01 – TOP AND CONSOLE PARTS

YWED8200YW2 01 – TOP AND CONSOLE PARTS

Written by

in

YWED8200YW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1INSTALLATION, INSTRUCTION
1TECH SHEET
2PANEL, CONSOLE
3WPW10388675-includeCORE Whirlpool WPW10388675 Refrigerator Electronic Control Board
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6WPW10432259-includeCORE Whirlpool WPW10432259 Refrigerator Electronic Control Board + Core
7WP33001882 Whirlpool Screw
8Bracket, Console
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10112673 Whirlpool Clip
12HARNESS, MAIN
13TOP
14W10131402 Whirlpool Screw
15W10185554 Whirlpool Seal Assembly
16SEAL, USER INTERFACE
