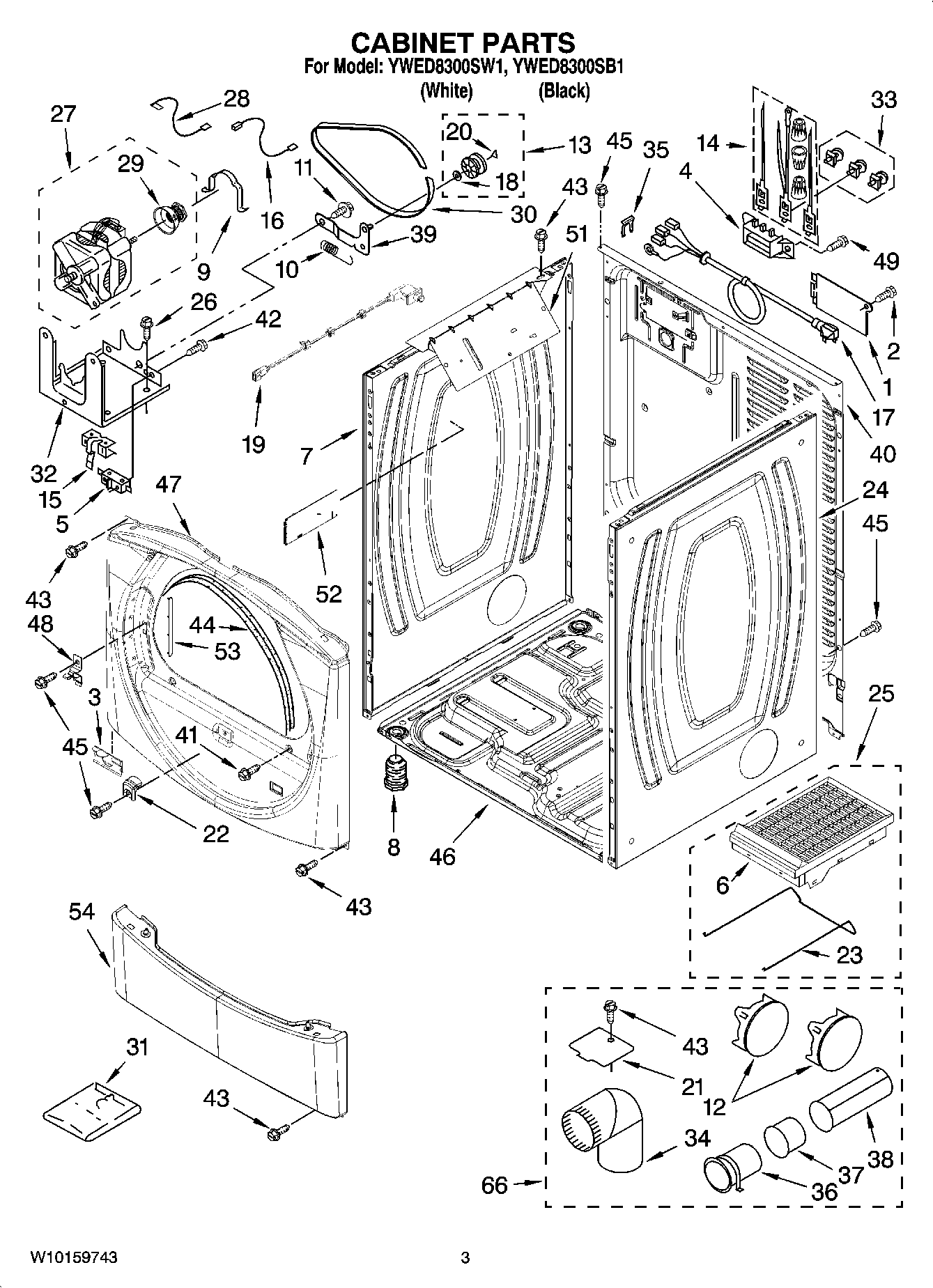

YWED8300SW1 02 – CABINET PARTS

Products

Position	Product
1	WPW10119283 Whirlpool Terminal Cover
2	WP90767 Whirlpool Screw
3	W11295573 Whirlpool Clip
4	WP3397659 Whirlpool Terminal Block
5	279782 Whirlpool Lid Switch
6	8212450A Whirlpool Dryer Rack Assembly
7	Panel, Side (L.H.) (Black)
8	49621 Whirlpool Leveling Feet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	WP8066120 Whirlpool Lever Assembly
16	Wire, Belt Switch
17	CORD-POWER
18	WPW10121334 Whirlpool Washer
19	Assembly, Door Switch
21	WPW10354249 Whirlpool Cover
22	8565083 Whirlpool Ramp Assembly
22	8580015 Whirlpool Ramp
23	Dry Rack Support
24	W10542714 Whirlpool Panel
24	Panel, Side (R.H.) (Black)
26	SCREW
27	279787 Whirlpool Dryer Drive Motor
28	3398948 Whirlpool Wire
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	8572546 Whirlpool Washer Duet Sport Epic Stack Kit
32	WP3387118 Whirlpool Base Assembly
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	W11712577 Whirlpool Clip
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	Panel, Rear
41	WP308685 Whirlpool Microwave Screw
42	WP98129 Whirlpool Screw
43	WP488729 Whirlpool Refrigerator Door Screw
44	WP3387242 Whirlpool Seal
46	W11215531 Whirlpool Base
47	WPL W10129648
47	WPL 8580257
48	WP8565122 Whirlpool Strike Assembly
49	W10850756 Whirlpool Screw
51	WP8563727 Whirlpool Bracket
52	WPL W10111606
53	8565043 Whirlpool Plug
54	WP8540621 Whirlpool Toe Panel
54	WPL W10112964
66	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
