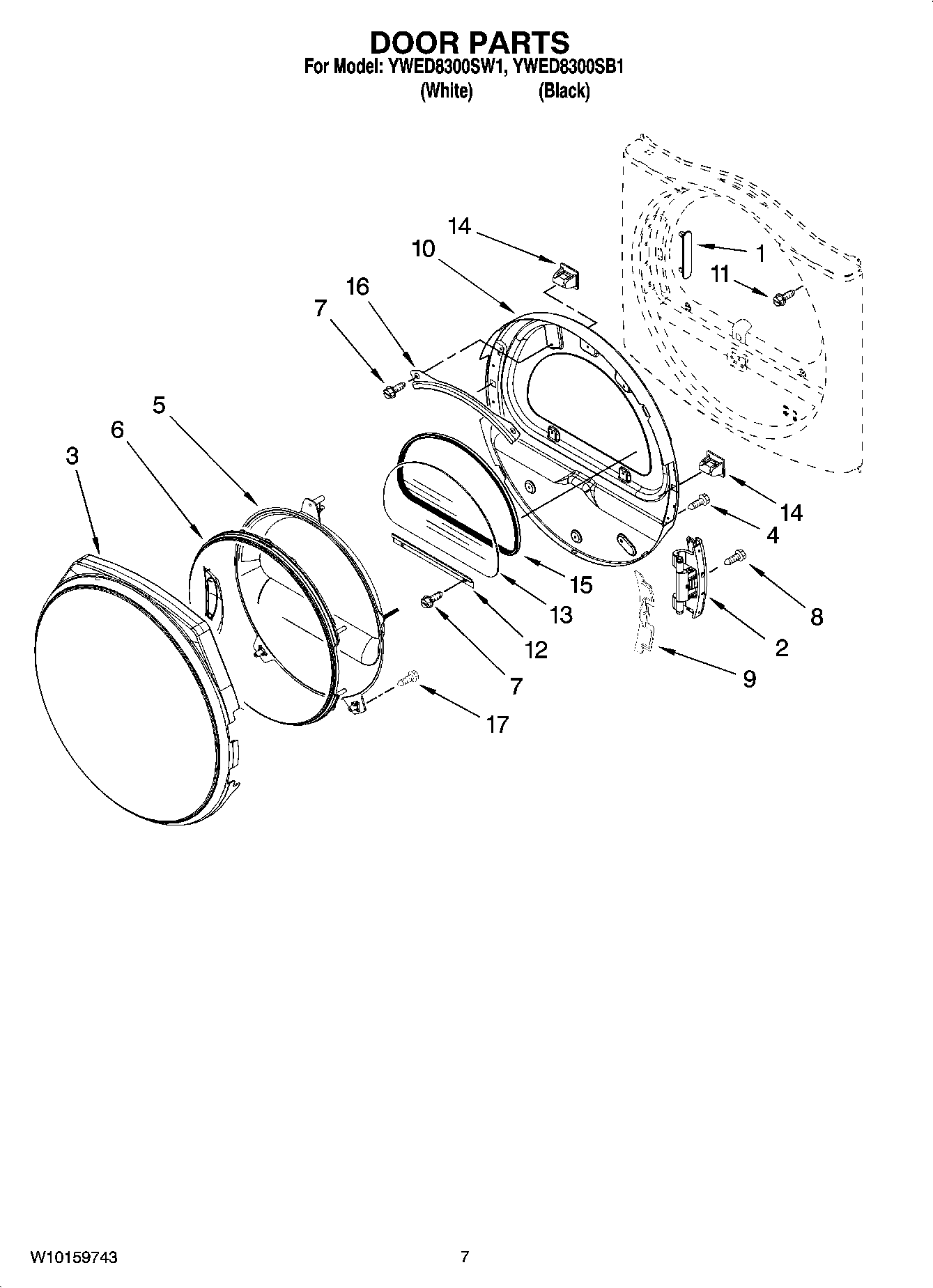

YWED8300SW1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

YWED8300SW1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

YWED8300SW1 04 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
350930 Whirlpool White Spray Paint
4392067 Whirlpool Dryer Repair Kit
W11224254 Whirlpool Test Kit
WPL 786020
PAINT, TOUCH-UP (1/2oz.) (Black)
ACCESSORY PARTS
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
ACCESSORY PARTS, KIT, HOLD DOWN
18565119 Whirlpool Plug
2Door, Hinge Assembly
3Door Ring (Outer) (White)
3Door Ring (Outer) (Black)
4W11116979 Whirlpool Screw
5Door Intermediate (White)
5Door, Intermediate (Gray)
6Door Assembly (Outer)
7WP3373329 Whirlpool Dishwasher Screw
8Screw, 10-24 x 3/64
9Cover, Hinge (White)
9Cover, Hinge (Black)
10WPW10164062 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
12W10822054 Whirlpool Retainer
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W11706993 Whirlpool Seal
168519356 Whirlpool Retainer
17WP8534022 Whirlpool Screw
