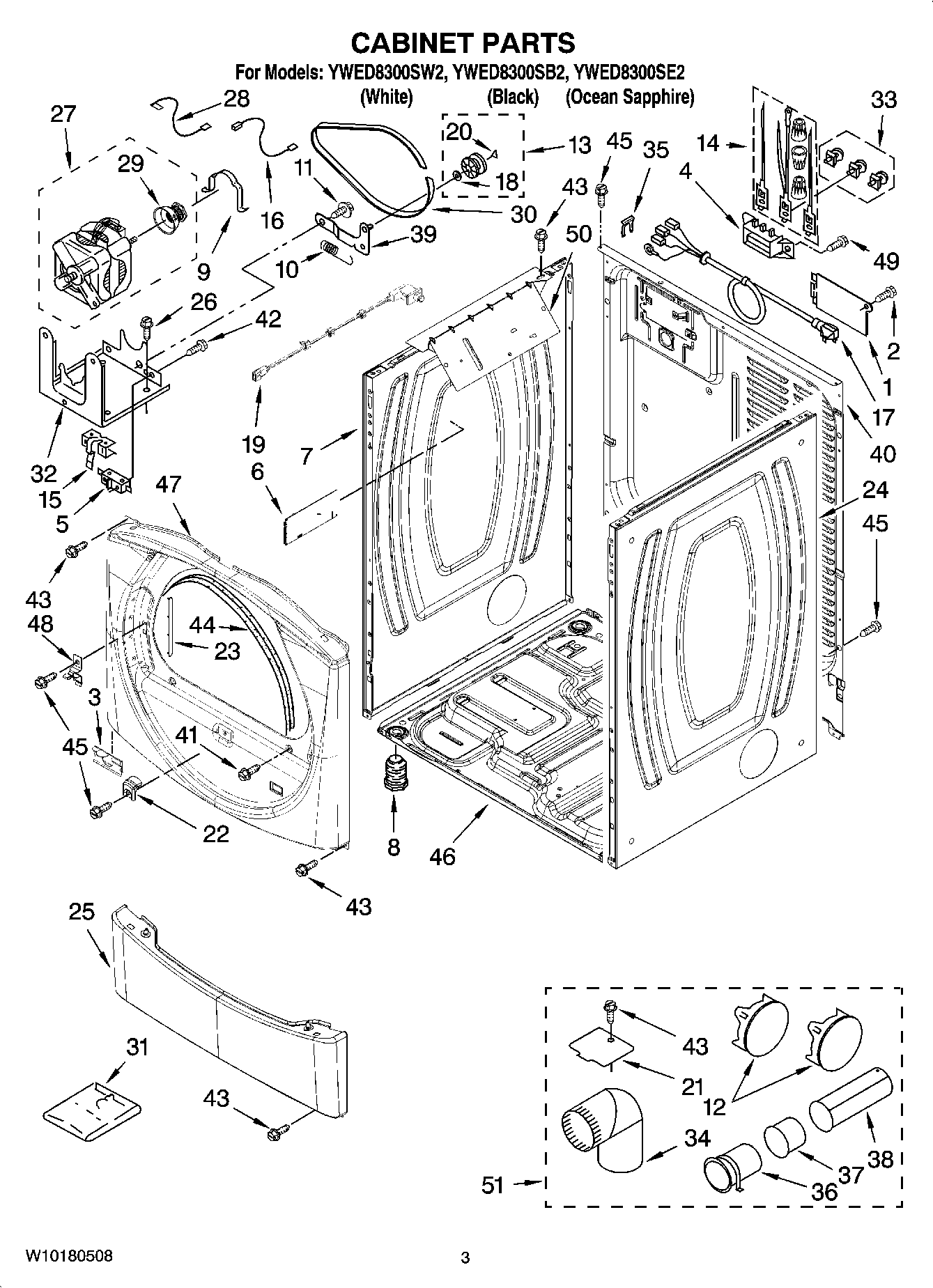

YWED8300SW2 02 – CABINET PARTS

YWED8300SW2 02 – CABINET PARTS

Written by

in

YWED8300SW2 02 – CABINET PARTS

Products

PositionProduct
1WPW10119283 Whirlpool Terminal Cover
2WP90767 Whirlpool Screw
3W11295573 Whirlpool Clip
4WP3397659 Whirlpool Terminal Block
5279782 Whirlpool Lid Switch
6WPL W10111606
7Panel, Side (L.H.) (Black)
7Panel, Side (L.H.) (Ocean Sapphire)
849621 Whirlpool Leveling Feet
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
15WP8066120 Whirlpool Lever Assembly
16W10167612 Whirlpool Wire
17CORD-POWER
18WPW10121334 Whirlpool Washer
19W10128087 Whirlpool Door Switch
21WPW10354249 Whirlpool Cover
228565083 Whirlpool Ramp Assembly
228580015 Whirlpool Ramp
238565043 Whirlpool Plug
24Panel, Side (R.H.) (Ocean Sapphire)
24Panel, Side (R.H.) (Black)
24W10542714 Whirlpool Panel
25Toe Panel (Ocean Sapphire)
25WPL W10112964
25WP8540621 Whirlpool Toe Panel
26SCREW
27279787 Whirlpool Dryer Drive Motor
283398948 Whirlpool Wire
29W10837625 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
318572546 Whirlpool Washer Duet Sport Epic Stack Kit
32WP3387118 Whirlpool Base Assembly
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35W11712577 Whirlpool Clip
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40Panel, Rear
41WP308685 Whirlpool Microwave Screw
42WP98129 Whirlpool Screw
43WP488729 Whirlpool Refrigerator Door Screw
44WP3387242 Whirlpool Seal
46W11215531 Whirlpool Base
47WPL W10167862
47WPL W10129648
47WPL 8580257
48WP8565122 Whirlpool Strike Assembly
49W10850756 Whirlpool Screw
50WPL ARI139466A
50WP8563727 Whirlpool Bracket
51W10470674 Whirlpool Dryer Side Vent Exhaust Kit
51WPL W10186598
