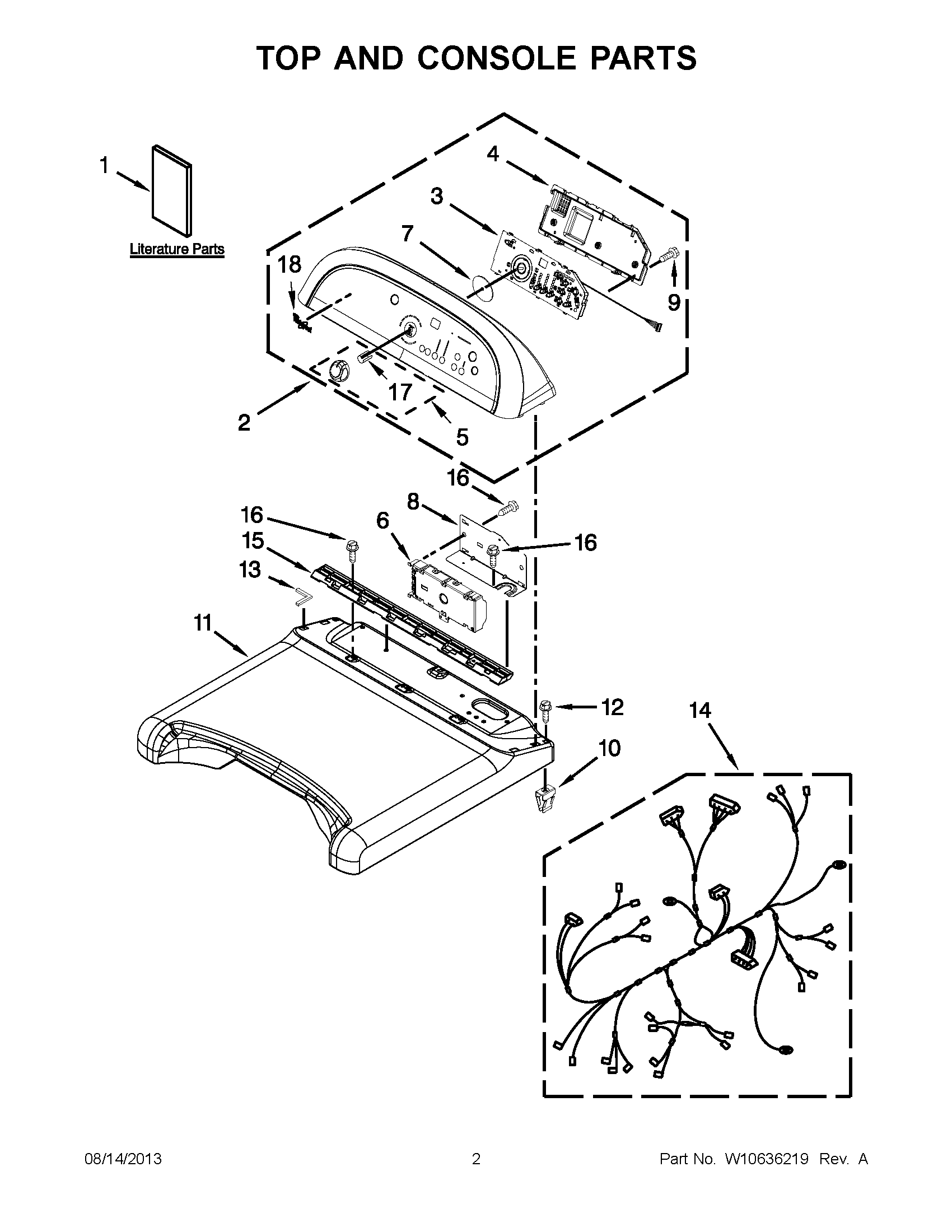

YWED8500BC0 01 – TOP AND CONSOLE PARTS

YWED8500BC0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED8500BC0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE AND CARE
1INSTRUCTIONS, INSTALLATION
1TECH SHEET
2ASSEMBLY, CONSOLE (WHITE)
2ASSEMBLY, CONSOLE (CHROME SHADOW)
3ASSEMBLY, USER INTERFACE
48564265 Whirlpool Cover
5WPW10567081 Whirlpool Knob Assembly
5WPW10576632 Whirlpool Dishwasher Knob
6WPW10532428-includeCORE Whirlpool WPW10532428 Washer Electronic Control Board + Core
7SEAL, USER INTERFACE
8BRACKET, MACHINE CONTROLLER
9WP4449745 Whirlpool Screw
10W10112673 Whirlpool Clip
11TOP (CHROME SHADOW)
11TOP (WHITE)
12W10131402 Whirlpool Screw
13W10185554 Whirlpool Seal Assembly
14HARNESS, WIRE
15Bracket, Console
16WP90767 Whirlpool Screw
17SPRING, CLIP KNOB
18WPW10393264 Whirlpool Refrigerator Nameplate
