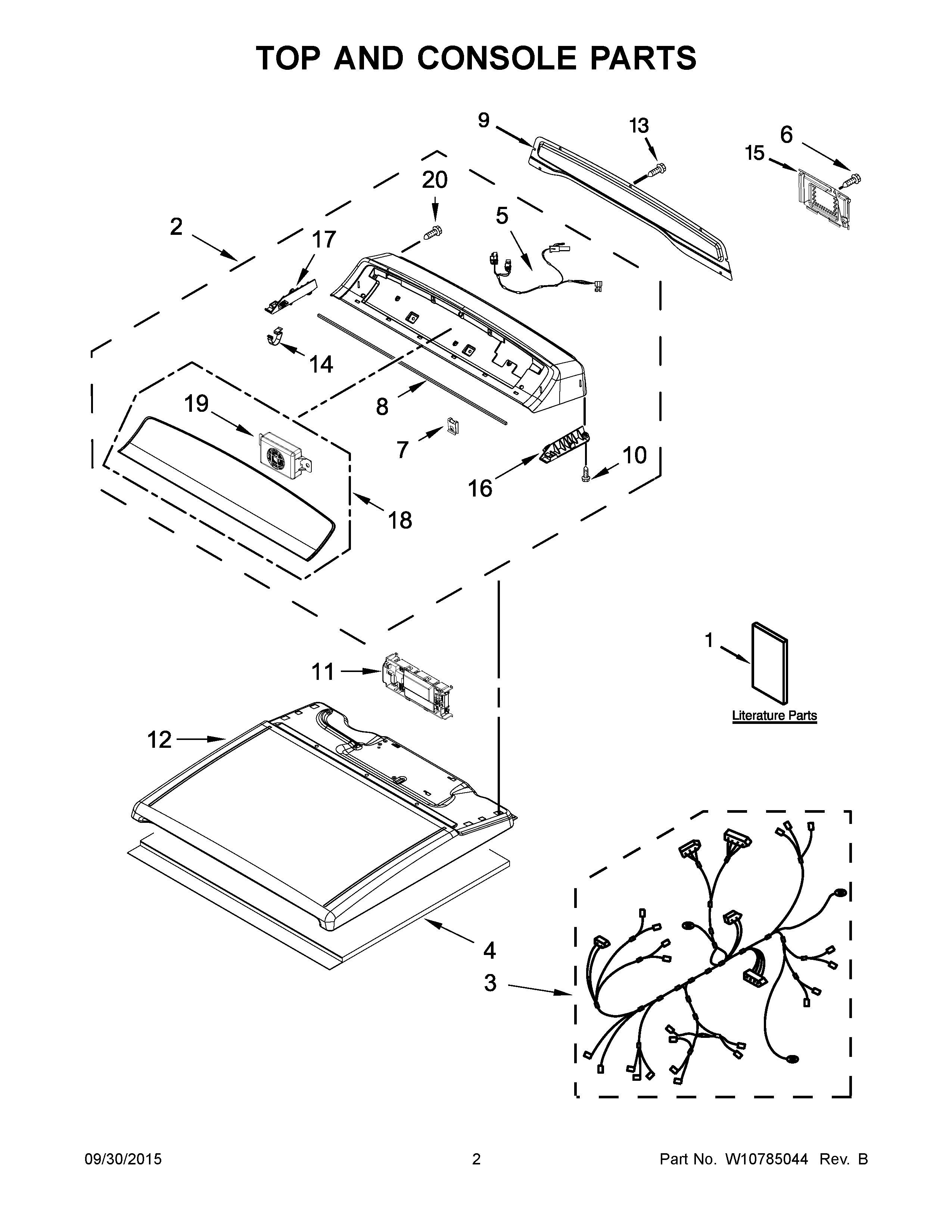

YWED8500DC1 02 – TOP AND CONSOLE PARTS

YWED8500DC1 02 – TOP AND CONSOLE PARTS

Written by

in

YWED8500DC1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1DENERGY GUIDE
1CQUICKSTART GUIDE
1BTECH SHEET
1AGUIDE, USE AND CARE
2W10847565 Whirlpool Console
3WIRING HARNESS, MAIN
4W10123956 Whirlpool Sound Absorber
5W10593673 Whirlpool Wire Harness
6WP3390631 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11WPW10739349-includeCORE Whirlpool WPW10739349 Refrigerator Electronic Control Board + Core
12W11051477 Whirlpool Top
13W10728156 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10316167 Whirlpool Dishwasher Terminal Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18W11158455 Whirlpool Overlay Panel
19W11123146 Whirlpool Speaker
20WP9740848 Whirlpool Dishwasher Screw
