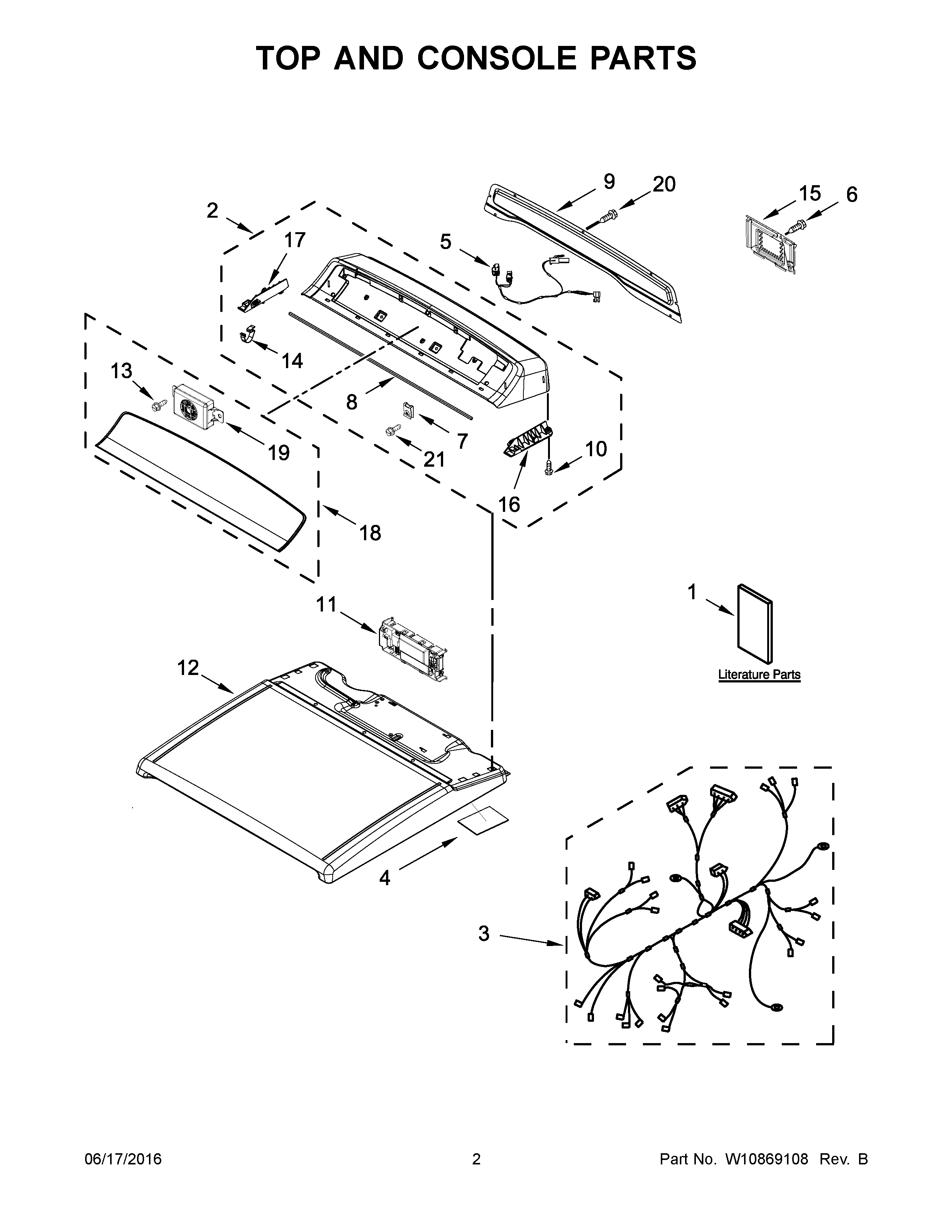

YWED8500DW3 02 – TOP AND CONSOLE PARTS

YWED8500DW3 02 – TOP AND CONSOLE PARTS

Written by

in

YWED8500DW3 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1AGUIDE, USE AND CARE
1CWIRING DIAGRAM
1BTECH SHEET
1EENERGY GUIDE
1DQUICKSTART GUIDE
1INSTALLATION INSTRUCTIONS
2W10642098 Whirlpool Console
2AW10847565 Whirlpool Console
3WIRING HARNESS, MAIN
4W11668653 Whirlpool Sound Panel
5W10593673 Whirlpool Wire Harness
6WP3390631 Whirlpool Screw
7W11213336 Whirlpool Nut
8W11721376 Whirlpool Seal Assembly
9W10622402 Whirlpool Rear Panel
10W10853898 Whirlpool Screw
11WPW10739349-includeCORE Whirlpool WPW10739349 Refrigerator Electronic Control Board + Core
12W11227373 Whirlpool Top
12AW11051477 Whirlpool Top
13W10728156 Whirlpool Screw
14WP8312709 Whirlpool Endcap Clip
15WPW10316167 Whirlpool Dishwasher Terminal Cover
16W10631629 Whirlpool Bracket
17W10631630 Whirlpool Bracket Assembly
18W11158455 Whirlpool Overlay Panel
19W11123146 Whirlpool Speaker
20SCREW
21W11568617 Whirlpool Screw
