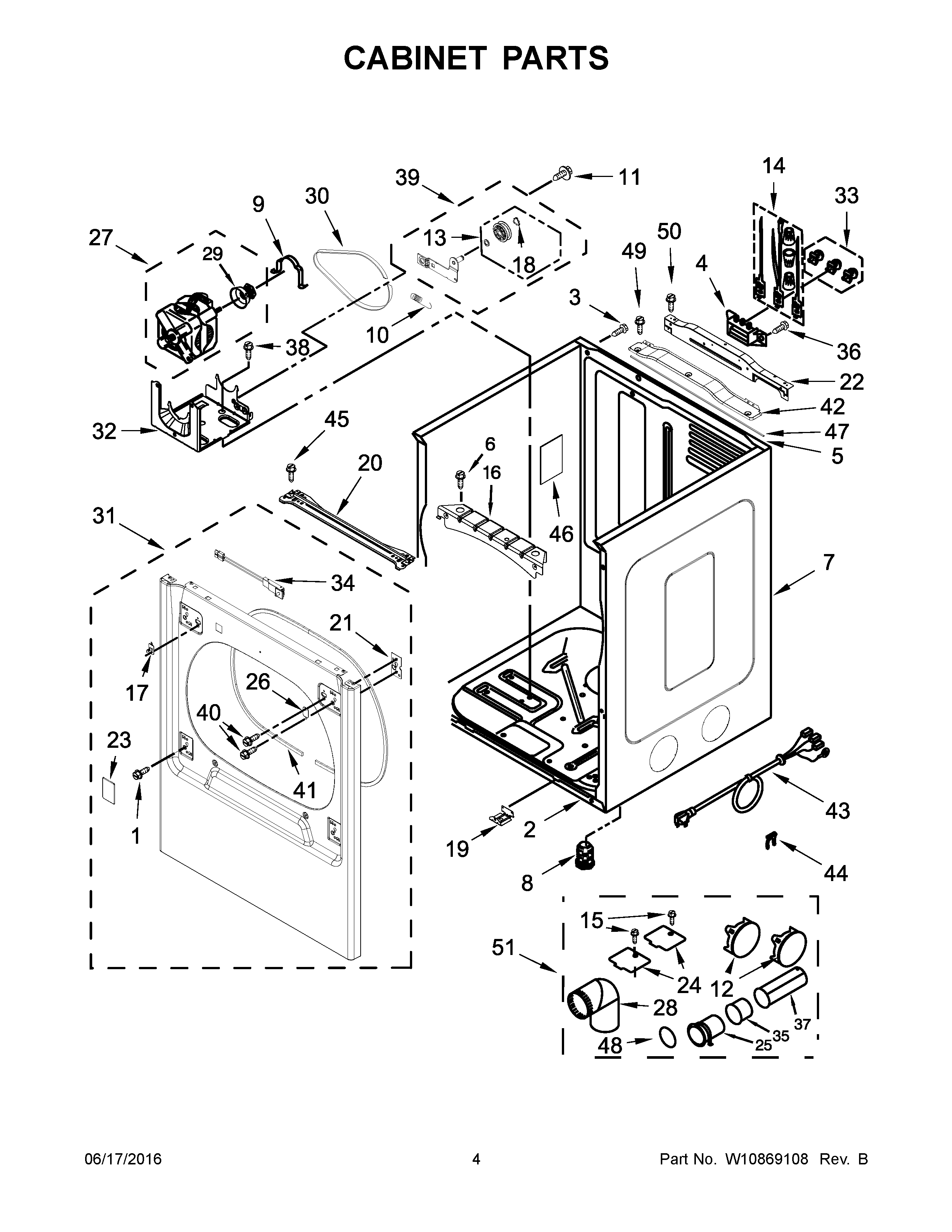

YWED8500DW3 03 – CABINET PARTS
Written by
in
YWED8500DW3 03 – CABINET PARTS
Products
Position
Product
NI
49621 Whirlpool Leveling Feet
1
SCREW
2
W10613683 Whirlpool Base
3
WP9740848 Whirlpool Dishwasher Screw
4
WP3397659 Whirlpool Terminal Block
5
W10824896 Whirlpool Rear Panel
6
WP693995 Whirlpool Screw
7
W10633648 Whirlpool Cabinet Assembly
7A
W10681830 Whirlpool Panel
9
CLAMP
10
WPW10446781 Whirlpool Spring
11
WP3389420 Whirlpool Screw
12A
WPW10404617 Whirlpool Plug Assembly
12
PLUG, MULTIVENT (WHITE)
13
279640 Whirlpool Dryer Idler Pulley Kit
14
279318 Whirlpool Terminal
15
WP308685 Whirlpool Microwave Screw
16
W11282908 Whirlpool Bracket
17
W11163826 Whirlpool Strike
18
WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19
SPACER BRACKET, LOWER
20
BRACE, CAB AND SEAL ASSEMBLY
21
BRACKET, HINGE
22
W10622391 Whirlpool Bracket
23
W10590953 Whirlpool Plug
23A
W10596965 Whirlpool Plug
24
WPW10354249 Whirlpool Cover
25
PIPE, EXHAUST (MEDIUM)
26
WPW10111888 Whirlpool Plate Assembly
27
W11105178 Whirlpool Drive Motor
28
WPW10416072 Whirlpool Elbow
29
W11568637 Whirlpool Motor Pulley
30
W10849499 Whirlpool Belt
31
W10875869 Whirlpool Panel
31A
W10875891 Whirlpool Panel
32
W10578053 Whirlpool Base Assembly
33
279393 Whirlpool Terminal Block Screw and Nut Kit
34
W11036551 Whirlpool Door Switch
35
WPW10331278 Whirlpool Exhaust Pipe
36
WP3390631 Whirlpool Screw
37
WP8563749 Whirlpool Exhaust Pipe
38
SCREW
39
W10837240 Whirlpool Dryer Idler Pulley
40
WP3400805 Whirlpool Screw Assembly
41
WP3387242 Whirlpool Seal
42
W10651902 Whirlpool Bracket
43
W11710615 Whirlpool Cord-Power
44
W11712577 Whirlpool Clip
45
W10891954 Whirlpool Screw
46
W11409002 Whirlpool Pad
47
W10316616 Whirlpool Seal
48
WPW10344699 Whirlpool Collar
49
W10850756 Whirlpool Screw
50
W10636208 Whirlpool Screw
51
W10704365 Whirlpool Dryer Exhaust Kit
←
