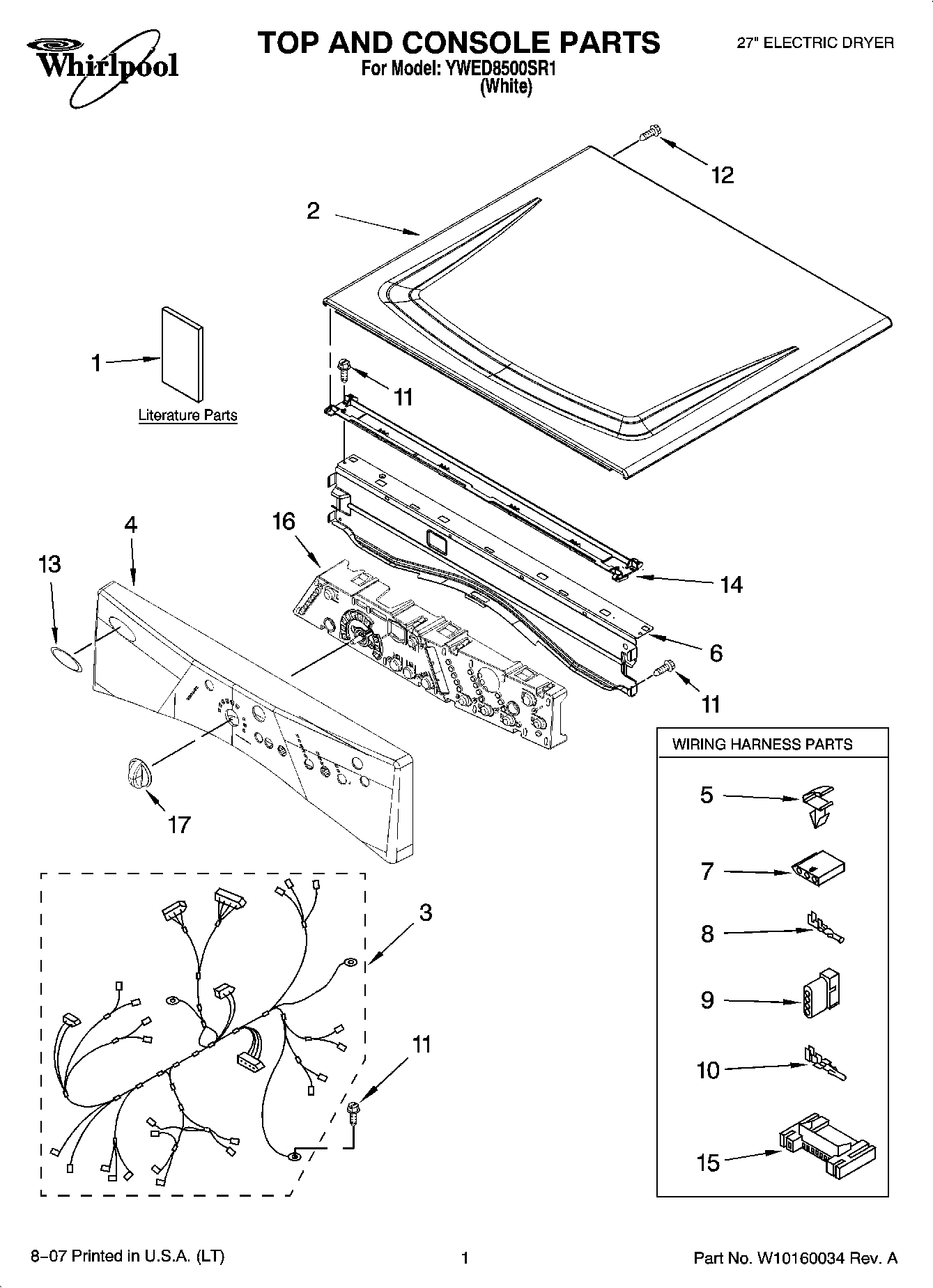

YWED8500SR1 01 – TOP AND CONSOLE PARTS

YWED8500SR1 01 – TOP AND CONSOLE PARTS

Written by

in

YWED8500SR1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Guide, Quick Start
1Use & Care Guide
1Tech Sheet
2WPW10336080 Whirlpool Top Assembly
3Harness, Main
4Panel, Console
5WP3394427 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12Screw, 2-28 x 1/2
13Medallion
14WPW10266747 Whirlpool Channel
153395683 Whirlpool Connector
16Assembly, User Interface
17WP8574964 Whirlpool Control Knob
