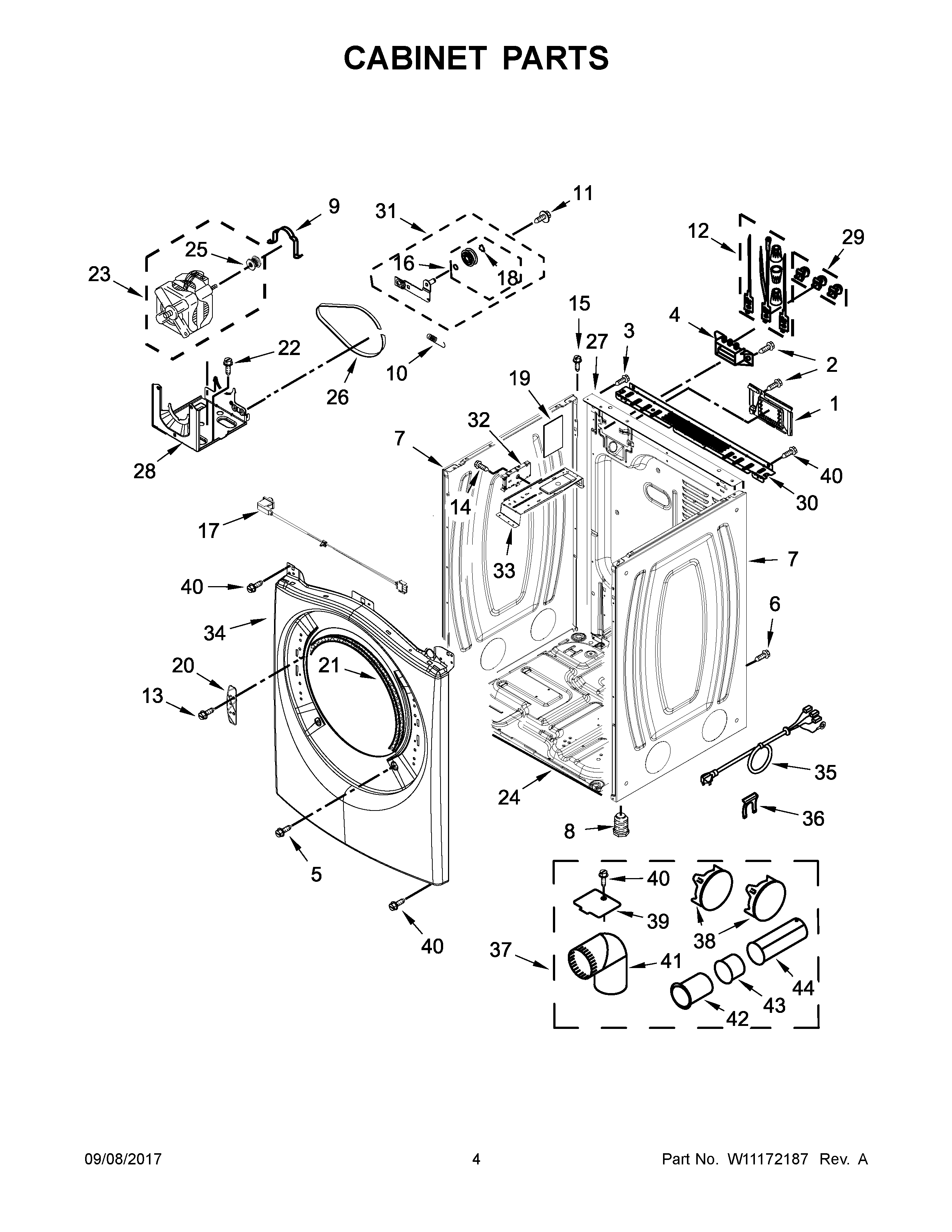

YWED85HEFC1 03 – CABINET PARTS

YWED85HEFC1 03 – CABINET PARTS

Written by

in

YWED85HEFC1 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WPW10316167 Whirlpool Dishwasher Terminal Cover
2WP489463 Whirlpool Refrigerator Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5WP308685 Whirlpool Microwave Screw
7AW11315726 Whirlpool Panel Assembly
7W11233548 Whirlpool Panel
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12279318 Whirlpool Terminal
13SCREW
14WP693995 Whirlpool Screw
15SCREW
16279640 Whirlpool Dryer Idler Pulley Kit
17WPW10350906 Whirlpool Door Switch
18WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19W11409002 Whirlpool Pad
20WPW10208250 Whirlpool Strike
21WP3387242 Whirlpool Seal
22SCREW
23MOTOR-DRVE
24W11215531 Whirlpool Base
25WP8066184 Whirlpool Dryer Motor Pulley
26661570V Whirlpool Dryer Drum Belt
27W10487430 Whirlpool Rear Panel
28W11481730 Whirlpool Bracket
29279393 Whirlpool Terminal Block Screw and Nut Kit
30WPW10208382 Whirlpool Dryer Bracket
31W10837240 Whirlpool Dryer Idler Pulley
32W11537215-includeCORE Whirlpool W11537215 Control Board + Core
33BRACKET, CONTROL
34AWPW10463309 Whirlpool Dishwasher Panel
34WPW10363953 Whirlpool Dishwasher Panel
35W11710615 Whirlpool Cord-Power
36W11712577 Whirlpool Clip
37W10323246 Whirlpool Dryer Vent Kit 4-Way
38WPW10404617 Whirlpool Plug Assembly
39WPW10354249 Whirlpool Cover
40WP488729 Whirlpool Refrigerator Door Screw
41WPW10416072 Whirlpool Elbow
42WP8563747 Whirlpool Exhaust Pipe
43WPW10331278 Whirlpool Exhaust Pipe
44WP8563749 Whirlpool Exhaust Pipe
