YWED85HEFC1 05 – DOOR PARTS

YWED85HEFC1 05 – DOOR PARTS

Written by

in

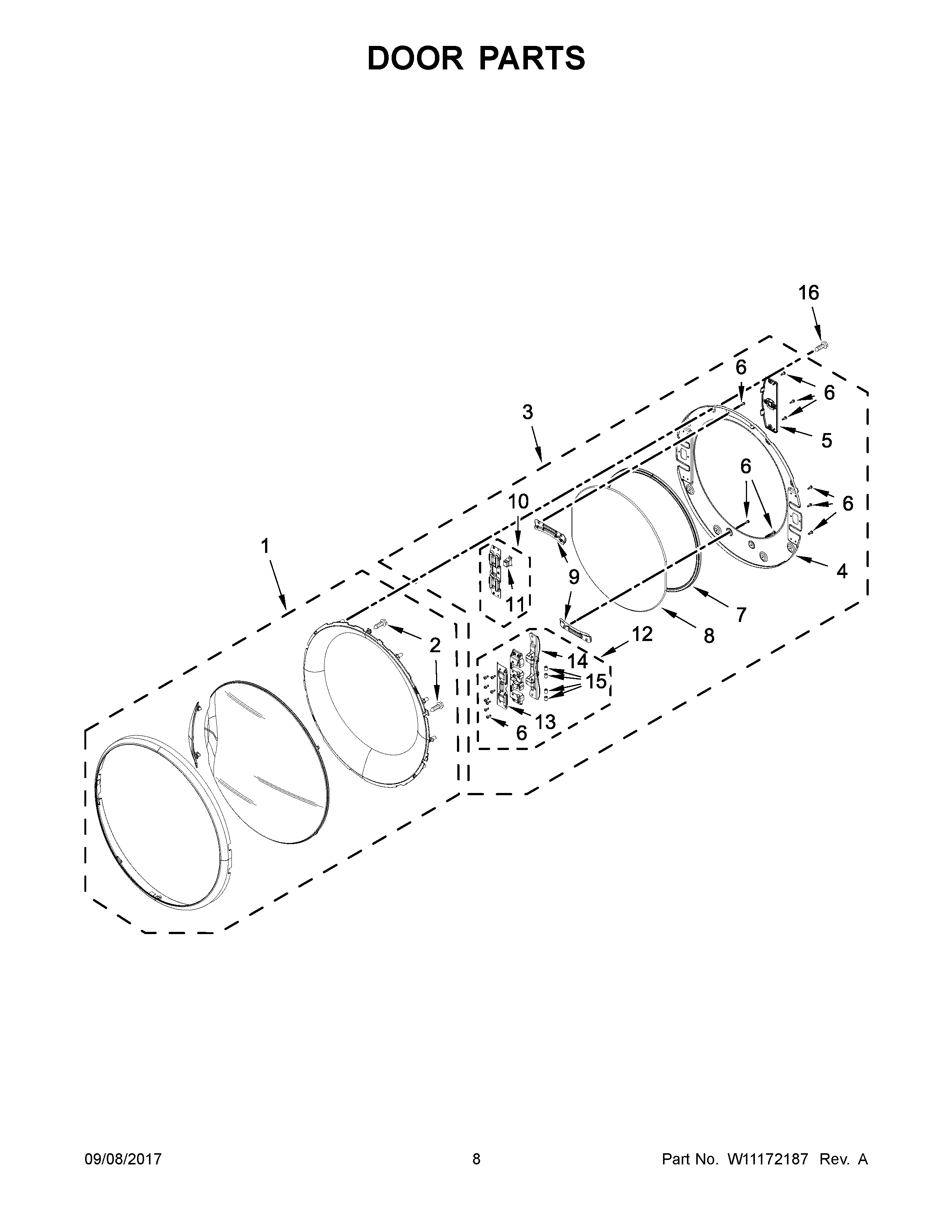

YWED85HEFC1 05 – DOOR PARTS

Products

PositionProduct
1W11172778 Whirlpool Door Assembly
1AW11168739 Whirlpool Door
2WP8534022 Whirlpool Screw
3AASSEMBLY, INNER DOOR (CHROME SHADOW)
3W11251345 Whirlpool Door
4DOOR, INNER
4ADOOR, INNER
5W10772469 Whirlpool Door Catch Cover
6SCREW
7W11126230 Whirlpool Seal
8W10823368 Whirlpool Window Assembly
9W10208252 Whirlpool Retainer
10WPW10208254 Whirlpool Catch
11W11240283 Whirlpool Catch Assembly
12HINGE
13WPW10208419 Whirlpool Plate
14HINGE
15WPW10208398 Whirlpool Hinge Pin Cap
16SCREW
