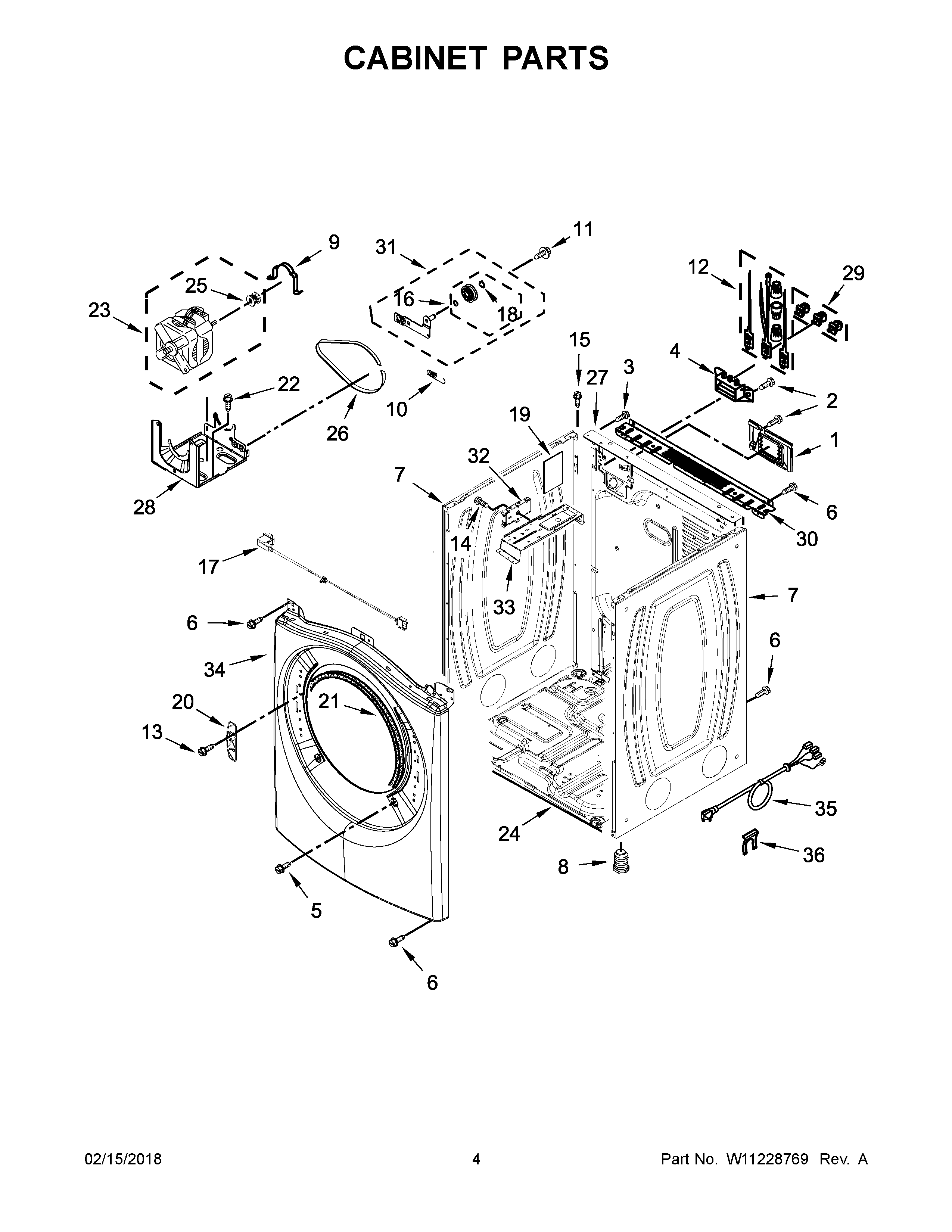

YWED85HEFC2 03 – CABINET PARTS

Products

Position	Product
NI	W10323246 Whirlpool Dryer Vent Kit 4-Way
NI	49621 Whirlpool Leveling Feet
1	WPW10316167 Whirlpool Dishwasher Terminal Cover
2	WP489463 Whirlpool Refrigerator Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	WP308685 Whirlpool Microwave Screw
6	WP488729 Whirlpool Refrigerator Door Screw
7	W11233548 Whirlpool Panel
7A	W11315726 Whirlpool Panel Assembly
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
12	279318 Whirlpool Terminal
13	SCREW
14	WP693995 Whirlpool Screw
15	SCREW
16	279640 Whirlpool Dryer Idler Pulley Kit
17	WPW10350906 Whirlpool Door Switch
18	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
19	W11409002 Whirlpool Pad
20	WPW10208250 Whirlpool Strike
21	WP3387242 Whirlpool Seal
22	SCREW
23	MOTOR-DRVE
24	W11215531 Whirlpool Base
25	WP8066184 Whirlpool Dryer Motor Pulley
26	661570V Whirlpool Dryer Drum Belt
27	W10487430 Whirlpool Rear Panel
28	W11481730 Whirlpool Bracket
29	279393 Whirlpool Terminal Block Screw and Nut Kit
30	WPW10208382 Whirlpool Dryer Bracket
31	W10837240 Whirlpool Dryer Idler Pulley
32	W11537215-includeCORE Whirlpool W11537215 Control Board + Core
33	BRACKET, CONTROL
34	WPW10363953 Whirlpool Dishwasher Panel
34A	WPW10463309 Whirlpool Dishwasher Panel
35	W11710615 Whirlpool Cord-Power
36	W11712577 Whirlpool Clip
