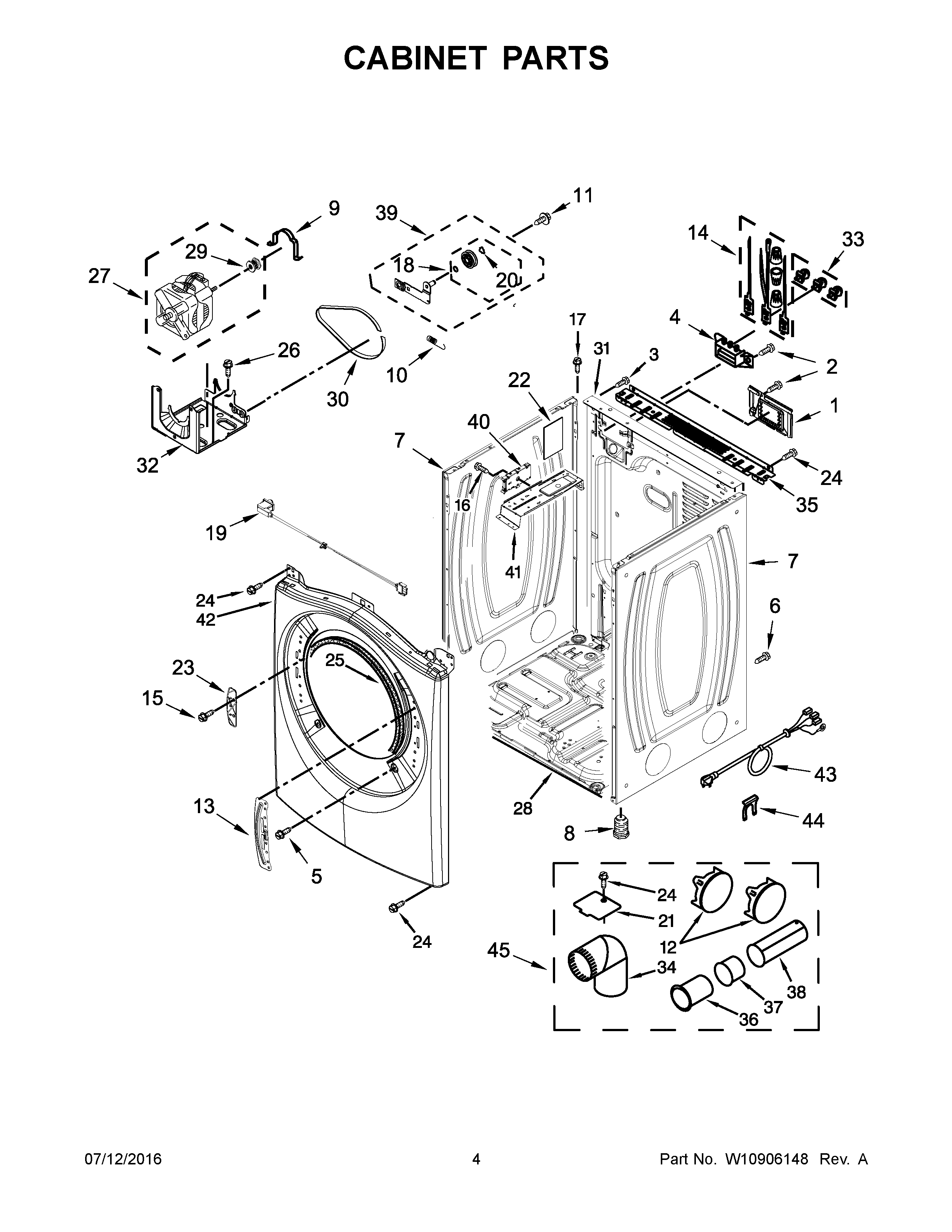

YWED85HEFW0 03 – CABINET PARTS

YWED85HEFW0 03 – CABINET PARTS

Written by

in

YWED85HEFW0 03 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1WPW10316167 Whirlpool Dishwasher Terminal Cover
2WP489463 Whirlpool Refrigerator Screw
3W10850756 Whirlpool Screw
4WP3397659 Whirlpool Terminal Block
5WP308685 Whirlpool Microwave Screw
7W11233548 Whirlpool Panel
7AW11315726 Whirlpool Panel Assembly
9CLAMP
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13BRACKET, DOOR HINGE
14279318 Whirlpool Terminal
15SCREW
16WP693995 Whirlpool Screw
17SCREW
18279640 Whirlpool Dryer Idler Pulley Kit
19WPW10350906 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
22W11409002 Whirlpool Pad
23WPW10208250 Whirlpool Strike
24WP488729 Whirlpool Refrigerator Door Screw
25WP3387242 Whirlpool Seal
26SCREW
27MOTOR-DRVE
28W11215531 Whirlpool Base
29WP8066184 Whirlpool Dryer Motor Pulley
30661570V Whirlpool Dryer Drum Belt
31W10487430 Whirlpool Rear Panel
32W11481730 Whirlpool Bracket
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35WPW10208382 Whirlpool Dryer Bracket
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39W10837240 Whirlpool Dryer Idler Pulley
40W11537215-includeCORE Whirlpool W11537215 Control Board + Core
41BRACKET, CONTROL
42AWPW10463309 Whirlpool Dishwasher Panel
42WPW10363953 Whirlpool Dishwasher Panel
43W11710615 Whirlpool Cord-Power
44W11712577 Whirlpool Clip
45W10323246 Whirlpool Dryer Vent Kit 4-Way
