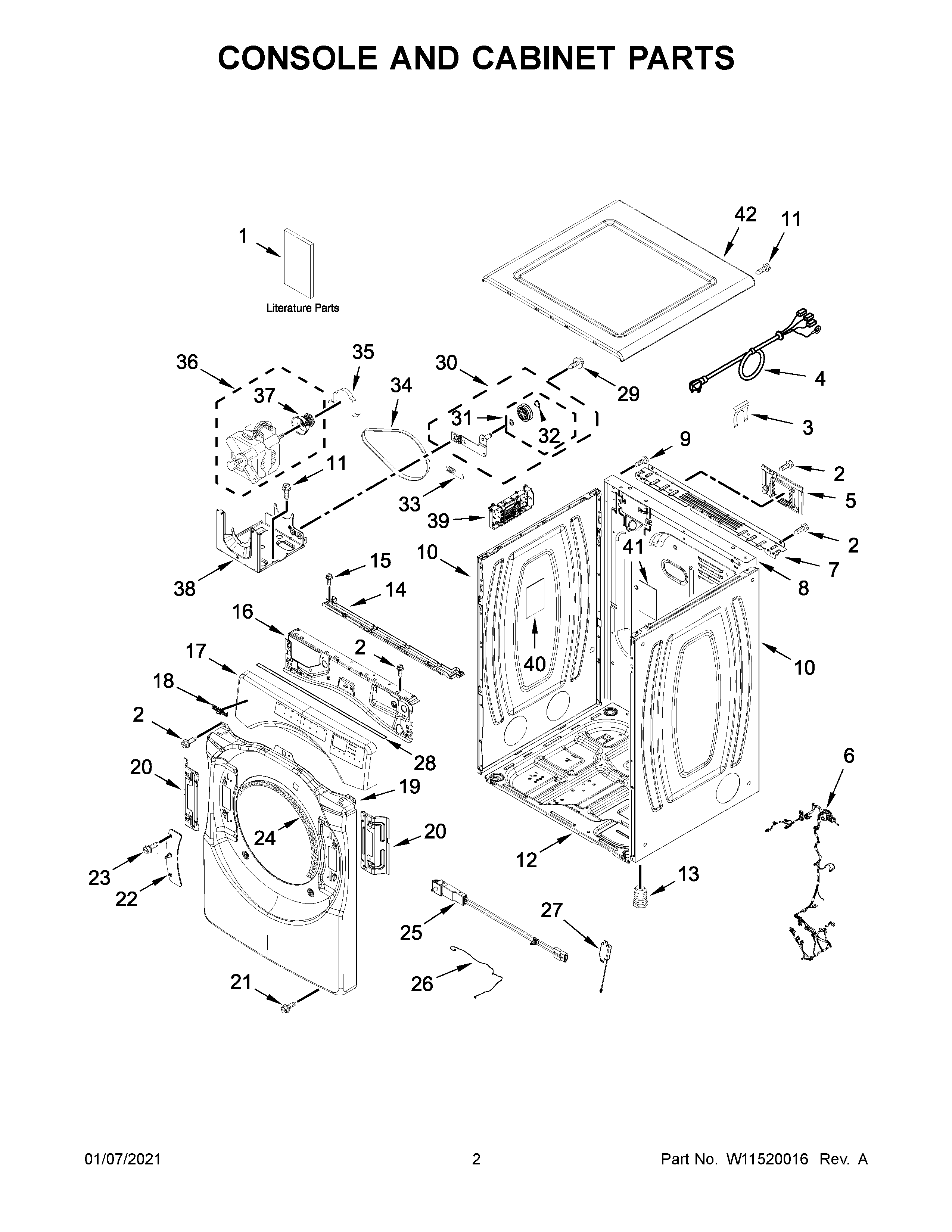

YWED8620HC2 02 – CONSOLE AND CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1B	WIRING DIAGRAM
1A	TECH SHEET
1	OWNERS MANUAL
1C	QUICK START GUIDE
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11712577 Whirlpool Clip
4	W11710615 Whirlpool Cord-Power
5	W11662367 Whirlpool Dryer Cover
6	HARNESS, WIRING (MAIN)
7	WPW10208382 Whirlpool Dryer Bracket
8	W10487430 Whirlpool Rear Panel
9	W10850756 Whirlpool Screw
10	W11315726 Whirlpool Panel Assembly
11	SCREW
12	W11215531 Whirlpool Base
14	W11310027 Whirlpool Bracket
15	W11686675 Whirlpool Screw
16	W11480682 Whirlpool Bracket
17	W11367342 Whirlpool Console + Core
18	W11223753 Whirlpool Refrigerator Nameplate
19	W11512556 Whirlpool Panel
20	W11310030 Whirlpool Bracket Assembly
21	WP308685 Whirlpool Microwave Screw
22	W11310031 Whirlpool Strike Assembly
23	SCREW
24	WP3387242 Whirlpool Seal
24A	W11551763 Whirlpool Door Switch
26	W11459337 Whirlpool Wire Harness
27	W11123146 Whirlpool Speaker
28	SEAL
29	WP3389420 Whirlpool Screw
30	W10837240 Whirlpool Dryer Idler Pulley
31	279640 Whirlpool Dryer Idler Pulley Kit
32	WPW10121334 Whirlpool Washer
33	WPW10446781 Whirlpool Spring
34	661570V Whirlpool Dryer Drum Belt
35	CLAMP
36	MOTOR-DRVE
37	WP8066184 Whirlpool Dryer Motor Pulley
38	W11481730 Whirlpool Bracket
39	W11733952-includeCORE Whirlpool Electronic Control+Core
40	W11409002 Whirlpool Pad
42	WPW10460919 Whirlpool Top
