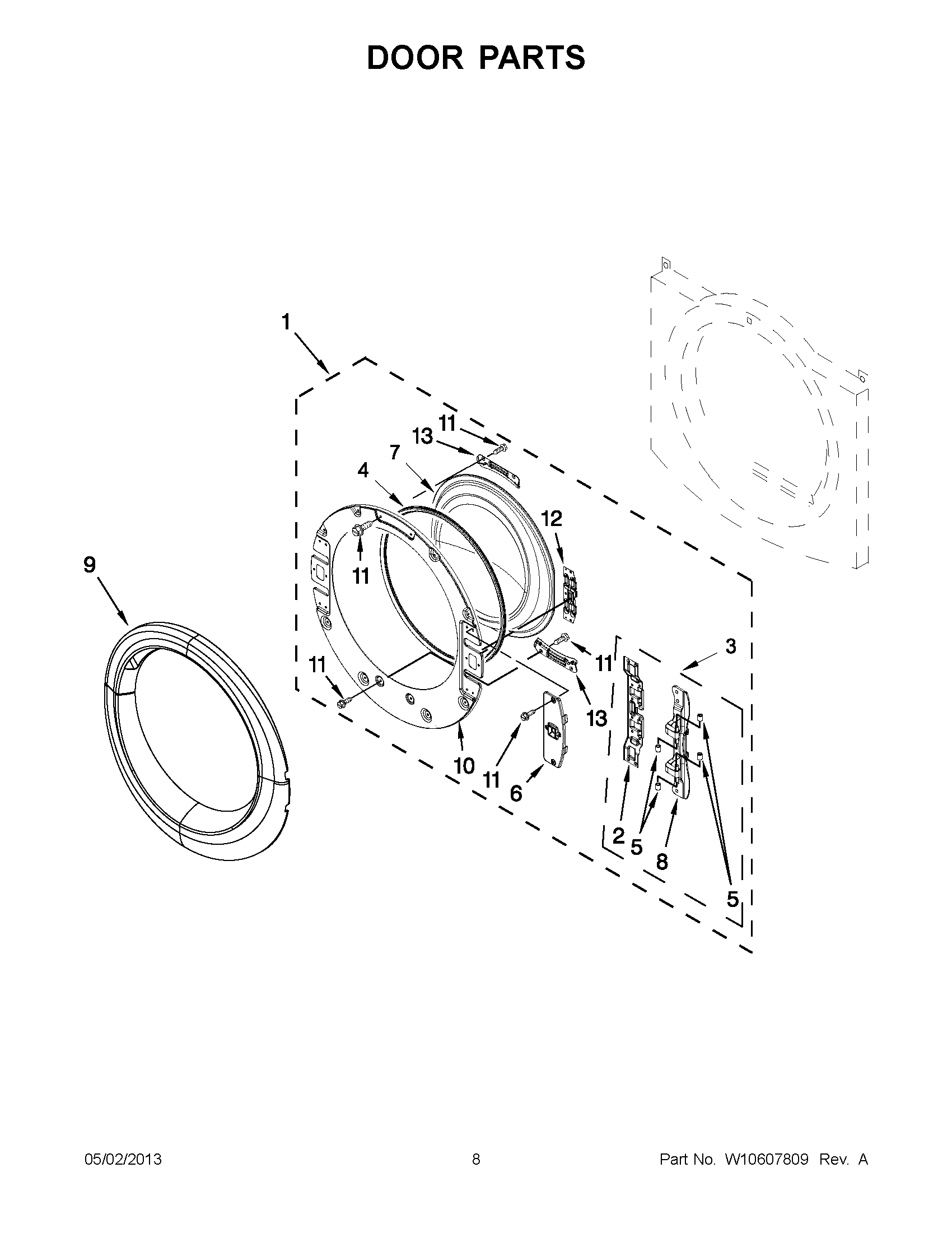

YWED86HEBW0 04 – DOOR PARTS

YWED86HEBW0 04 – DOOR PARTS

Written by

in

YWED86HEBW0 04 – DOOR PARTS

Products

PositionProduct
1ASSEMBLY, INNER DOOR
2HINGE
3HINGE
4W11126230 Whirlpool Seal
5WPW10208398 Whirlpool Hinge Pin Cap
6W10772469 Whirlpool Door Catch Cover
7W11310036 Whirlpool Door Glass
8WPW10208419 Whirlpool Plate
9W10877391 Whirlpool Door Assembly
10DOOR, INNER
11SCREW
12WPW10208254 Whirlpool Catch
13W10208252 Whirlpool Retainer
