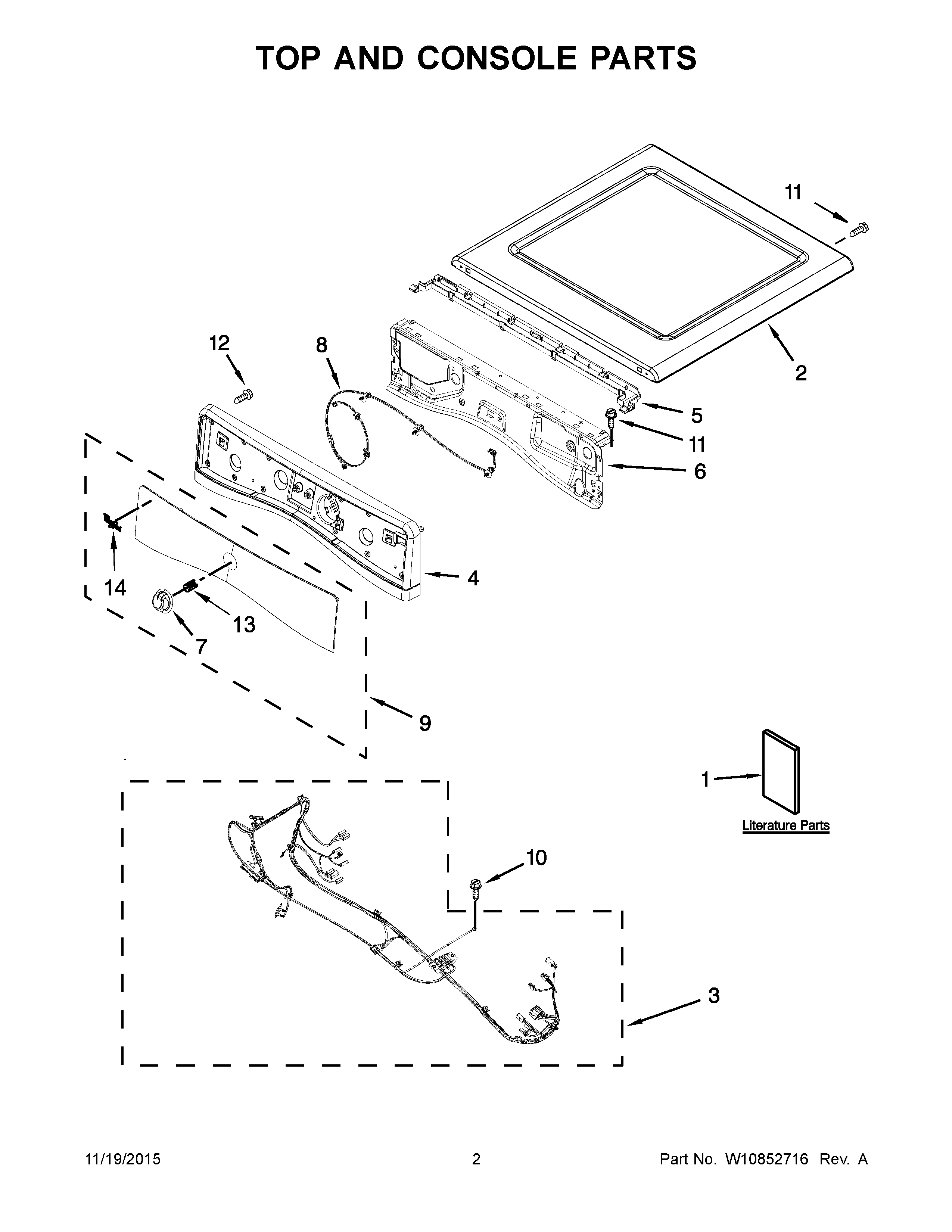

YWED87HEDW1 02 – TOP AND CONSOLE PARTS

YWED87HEDW1 02 – TOP AND CONSOLE PARTS

Written by

in

YWED87HEDW1 02 – TOP AND CONSOLE PARTS

Products

PositionProduct
1CQUICK START GUIDE
1USE AND CARE GUIDE
1DENERGY GUIDE
1BINSTALLATION INSTRUCTIONS
1ATECH SHEET
2AWPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN
4WPW10391519 Whirlpool Console
4AW10876224 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7W10875909 Whirlpool Timer Knob
7AWPW10631127 Whirlpool Knob
8W10837344 Whirlpool Wire Harness
9W11126011 Whirlpool Control Panel
9AIML ASSEMBLY (CHROME SHADOW)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
13WP8536939 Whirlpool Spring Clip
14AWPW10393264 Whirlpool Refrigerator Nameplate
14BADGE (WHITE)
