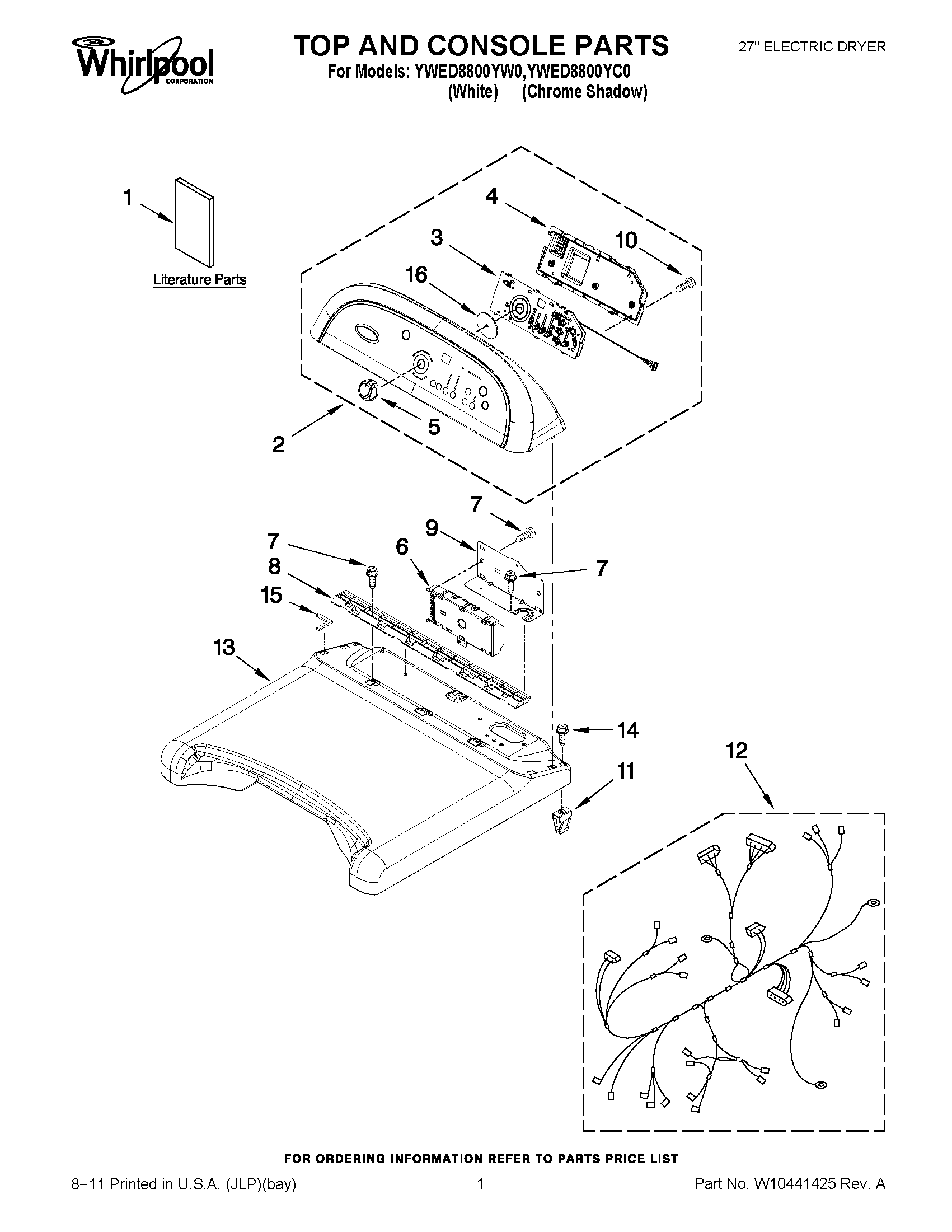

YWED8800YC0 01 – TOP AND CONSOLE PARTS

YWED8800YC0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED8800YC0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION, INSTRUCTION
1GUIDE, USE & CARE
2PANEL, CONSOLE (CHROME SHADOW)
2PANEL, CONSOLE (WHITE)
3WPW10388673-includeCORE Whirlpool WPW10388673 Washer Electronic Control Board + Core
48564265 Whirlpool Cover
5WPW10211335 Whirlpool Knob
6WPW10432259-includeCORE Whirlpool WPW10432259 Refrigerator Electronic Control Board + Core
7WP33001882 Whirlpool Screw
8Bracket, Console
9BRACKET, MACHINE CONTROLLER
10WP4449745 Whirlpool Screw
11W10112673 Whirlpool Clip
12HARNESS, WIRE
13TOP
13TOP (CHROME SHADOW)
14W10131402 Whirlpool Screw
15W10185554 Whirlpool Seal Assembly
16SEAL, USER INTERFACE
