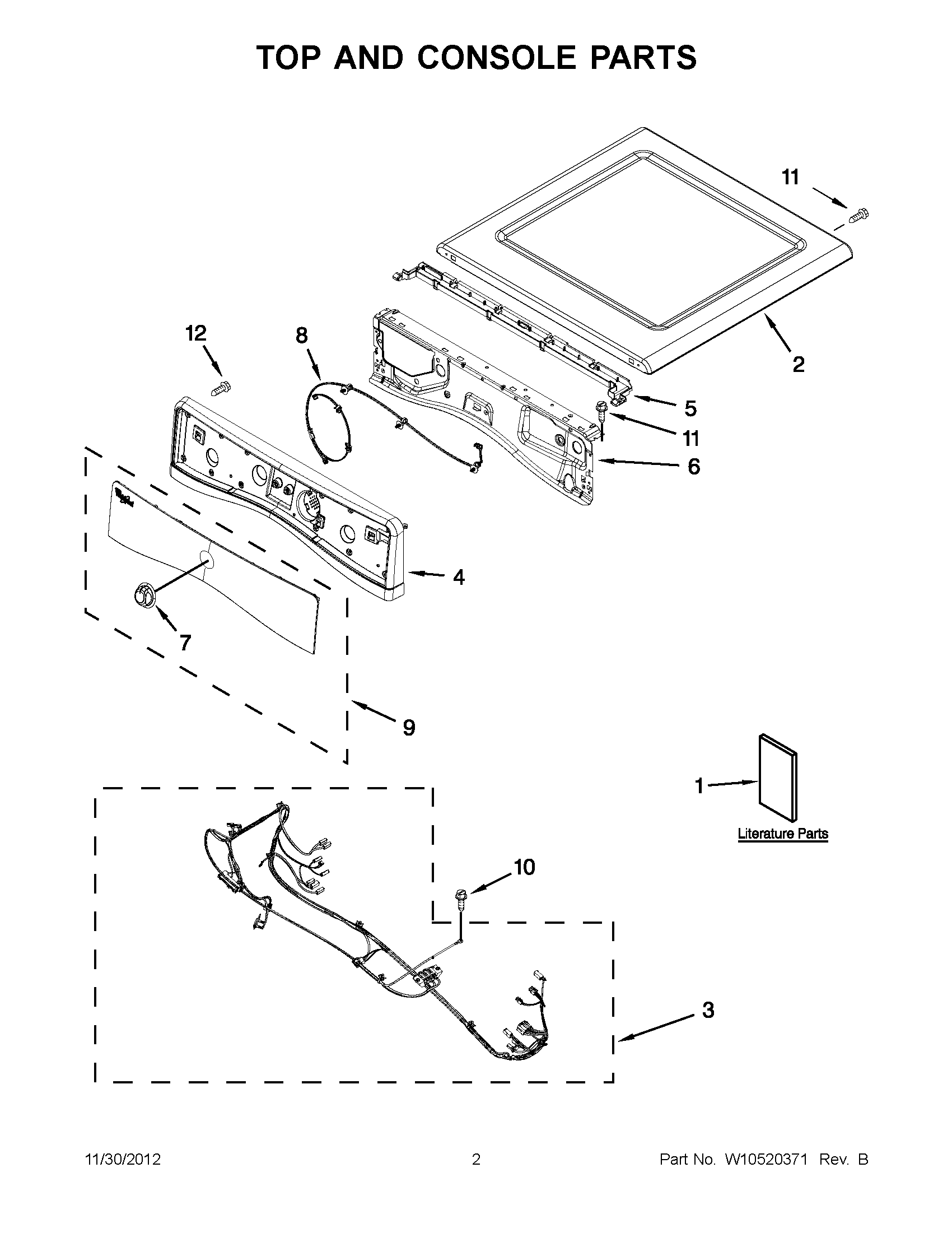

YWED88HEAC0 01 – TOP AND CONSOLE PARTS

YWED88HEAC0 01 – TOP AND CONSOLE PARTS

Written by

in

YWED88HEAC0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
2WPW10208383 Whirlpool Top Panel
2WPW10460919 Whirlpool Top
3HARNESS, MAIN
4W10876224 Whirlpool Console
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7KNOB ASSEMBLY
8W10443062 Whirlpool Wire Harness
9W10446435 Whirlpool Control Panel
9IML ASSEMBLY (CHROME SHADOW)
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W10489172 Whirlpool Screw
