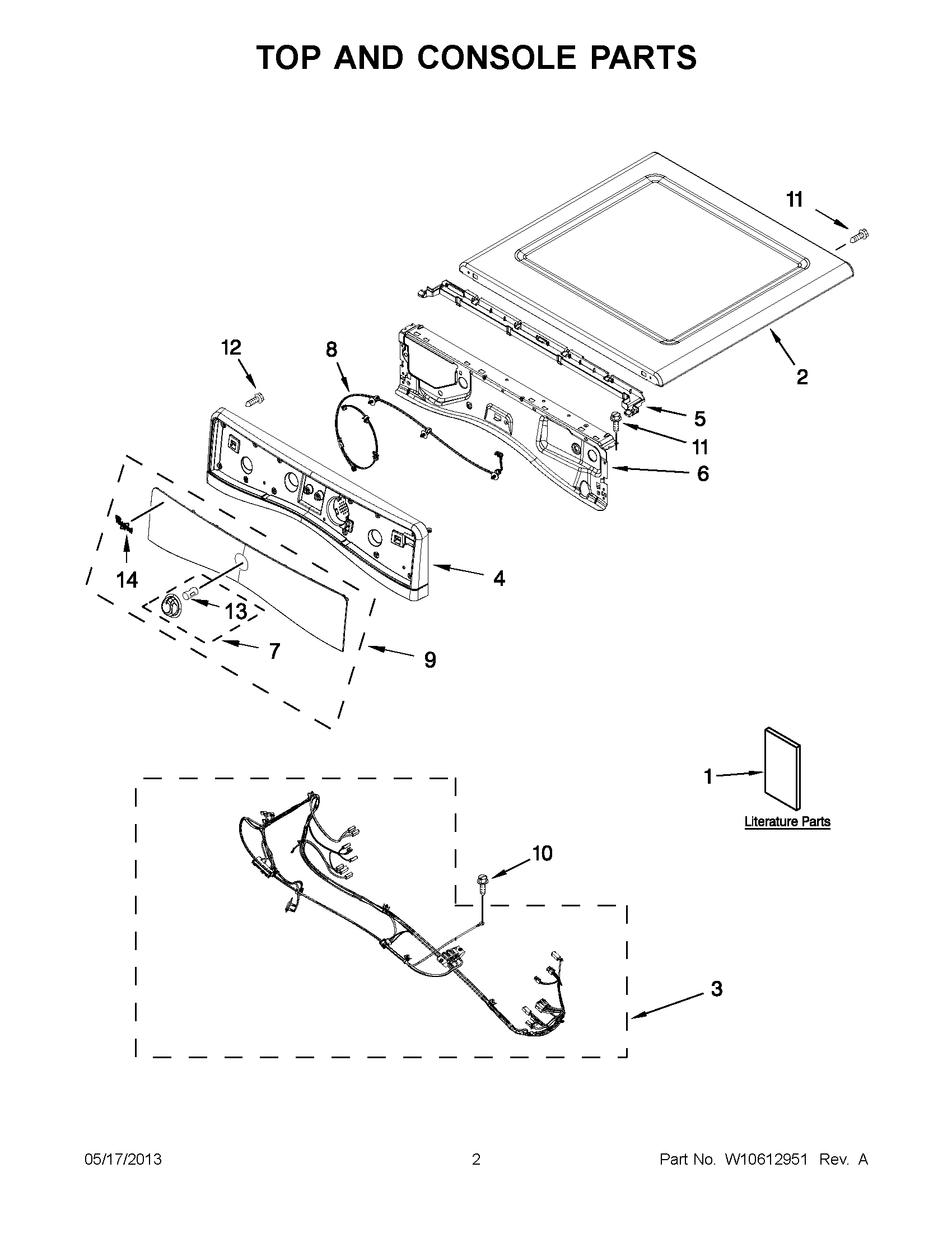

YWED88HEAC1 01 – TOP AND CONSOLE PARTS

YWED88HEAC1 01 – TOP AND CONSOLE PARTS

Written by

in

YWED88HEAC1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1OWNERS MANUAL
1INSTALLATION INSTRUCTIONS
1WIRING DIAGRAM
2WPW10460919 Whirlpool Top
2WPW10208383 Whirlpool Top Panel
3HARNESS, MAIN
4W10876224 Whirlpool Console
4WPW10391519 Whirlpool Console
5WPW10653575 Whirlpool Channel
6W11480682 Whirlpool Bracket
7KNOB ASSEMBLY
8W10837344 Whirlpool Wire Harness
9IML ASSEMBLY (CHROME SHADOW)
9W10446435 Whirlpool Control Panel
10WP693995 Whirlpool Screw
11WP488729 Whirlpool Refrigerator Door Screw
12W11501418 Whirlpool Refrigerator Screw
13WP8536939 Whirlpool Spring Clip
14W11178521 Whirlpool Dishwasher Nameplate
14WPW10393264 Whirlpool Refrigerator Nameplate
