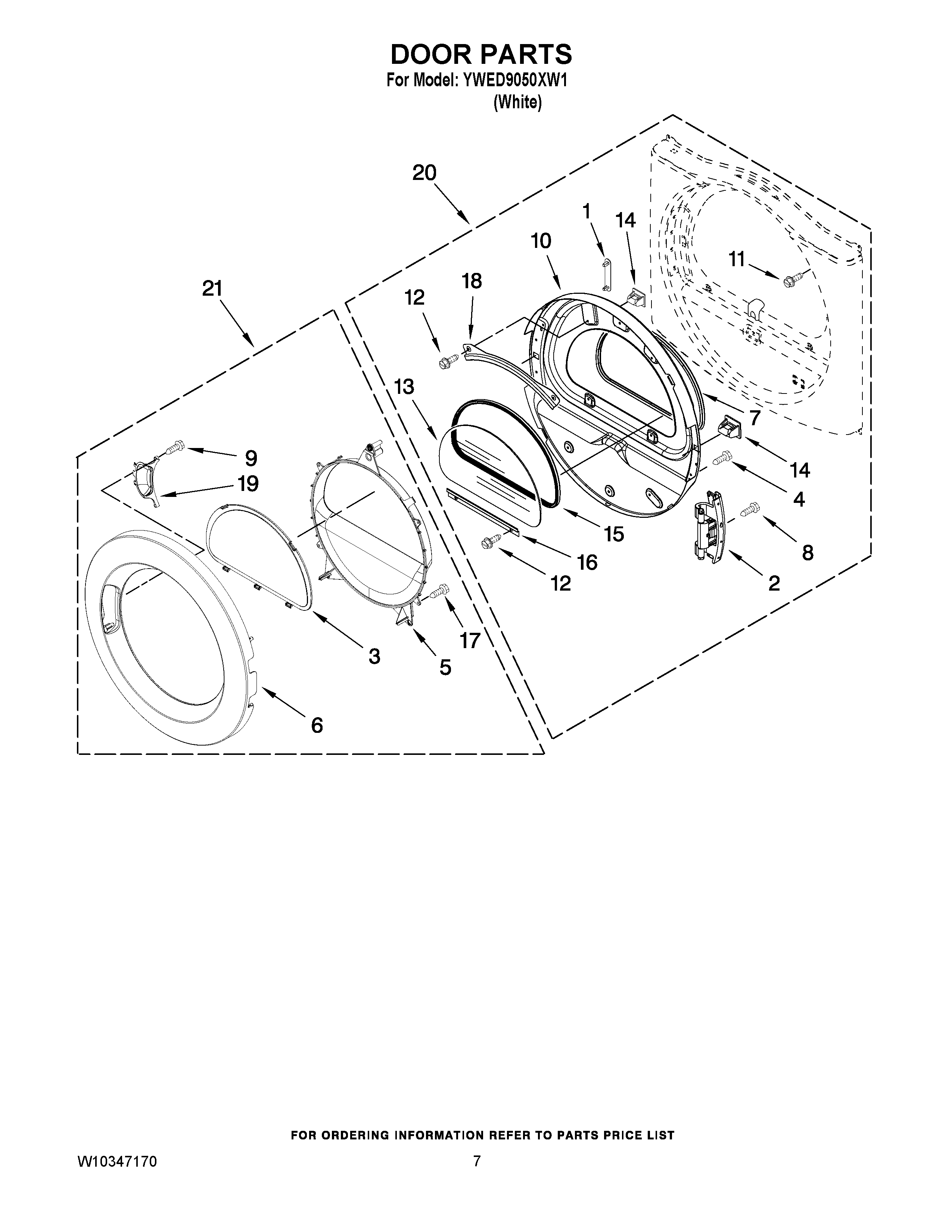

YWED9050XW1 04 – DOOR PARTS

Products

Position	Product
1	WPW10256915 Whirlpool Label
2	ASSEMBLY, DOOR HINGE
3	W10215741 Whirlpool Window Assembly
4	W11116979 Whirlpool Screw
5	W10283424 Whirlpool Window
6	W10215742 Whirlpool Door
7	WPW10163915 Whirlpool Door Seal
8	WPW10159996 Whirlpool Screw
9	SCREW
11	WP355515 Whirlpool Screw
12	WP3373329 Whirlpool Dishwasher Screw
13	WPW10286878 Whirlpool Window
14	279570 Whirlpool Dryer Door Latch Kit
15	W11706993 Whirlpool Seal
16	W10822054 Whirlpool Retainer
17	WP8534022 Whirlpool Screw
18	8519356 Whirlpool Retainer
19	W10215754 Whirlpool Handle
20	INNER DOOR ASSEMBLY
21	W10215753 Whirlpool Door Assembly
