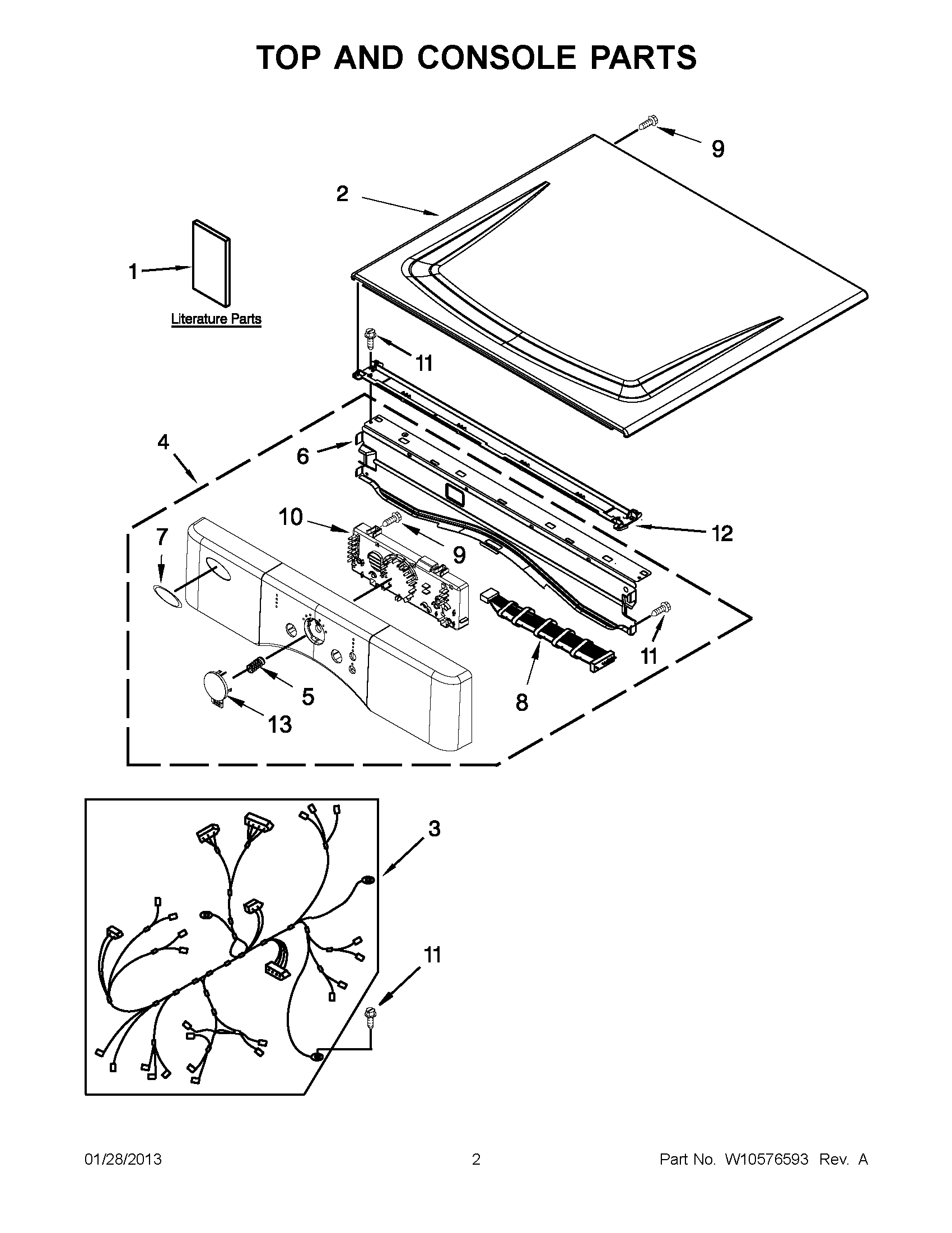

YWED9050XW2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1WIRING DIAGRAM
1USE & CARE GUIDE
1TECH SHEET
1INSTALLATION INSTRUCTIONS
2WPW10336080 Whirlpool Top Assembly
3MAIN WIRING HARNESS
4WPW10215458 Whirlpool Console
5W10215807 Whirlpool Spring
6WP8565237 Whirlpool Bracket Assembly
7Medallion
8W10259049 Whirlpool Wire Harness
9W10006580 Whirlpool Screw
10ASSEMBLY, USER INTERFACE
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13W10212800 Whirlpool Push Button Switch
