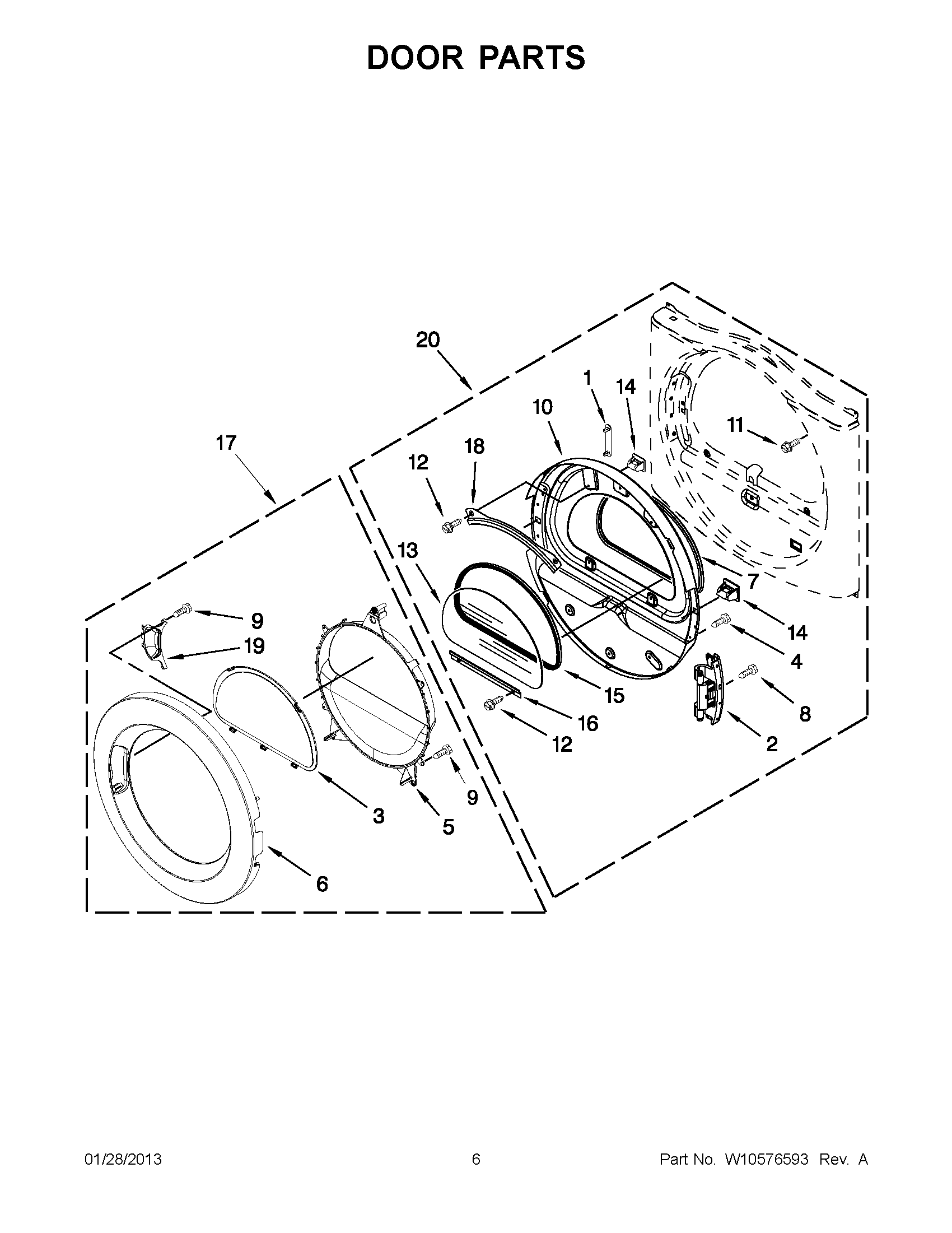

YWED9050XW2 03 – DOOR PARTS

YWED9050XW2 03 – DOOR PARTS

Written by

in

YWED9050XW2 03 – DOOR PARTS

Products

PositionProduct
1WPW10256915 Whirlpool Label
2ASSEMBLY, DOOR HINGE
3W10215741 Whirlpool Window Assembly
4W11116979 Whirlpool Screw
5W10283424 Whirlpool Window
6W10215742 Whirlpool Door
7WPW10163915 Whirlpool Door Seal
8WPW10159996 Whirlpool Screw
9SCREW
10W11690171 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
12WP3373329 Whirlpool Dishwasher Screw
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W11706993 Whirlpool Seal
16W10822054 Whirlpool Retainer
17W10215753 Whirlpool Door Assembly
188519356 Whirlpool Retainer
19W10215754 Whirlpool Handle
20ASSEMBLY, INNER DOOR
