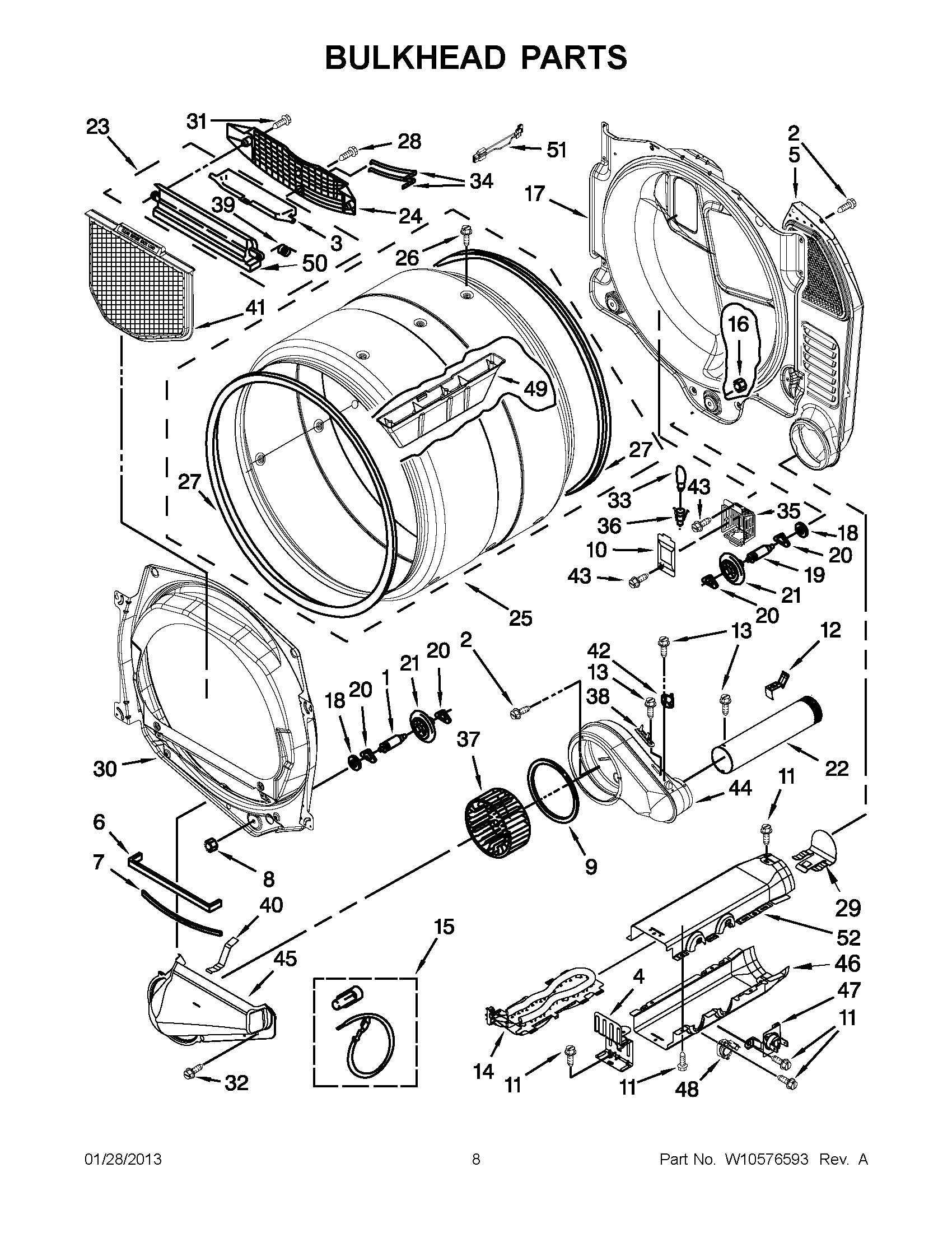

YWED9050XW2 04 – BULKHEAD PARTS

Products

Position	Product
1	SHAFT
2	WP488729 Whirlpool Refrigerator Door Screw
3	W11222846 Whirlpool Door
4	8066099 Whirlpool Bracket
5	WP3387911 Whirlpool Air Duct
6	WP697813 Whirlpool Seal
8	WPW10080210 Whirlpool Nut
9	WP697770 Whirlpool Blower Cover Plate Seal
10	W11226088 Whirlpool Lens Assembly
11	WP693995 Whirlpool Screw
12	W11684573 Whirlpool Clip Assembly
13	WP90767 Whirlpool Screw
14	WP8544771 Whirlpool Dryer Heating Element
15	279457 Whirlpool Dryer Heating Element Wide Spade Connection
16	WPW10080190 Whirlpool Nut
17	WPW10080170 Whirlpool Bulkhead Assembly
18	W11236646 Whirlpool Washer Assembly
19	SHAFT
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10314173 Whirlpool Dryer Drum Support Wheel
22	WP8563728 Whirlpool Exhaust Pipe
23	W11219327 Whirlpool Grille Outlet
24	W11086603 Whirlpool Dryer Link Screen Air Grille
25	W10865330 Whirlpool Drum
26	W10853898 Whirlpool Screw
27	280114 Whirlpool Dryer Drum Seal
29	8544776 Whirlpool Clip Assembly
30	8565061 Whirlpool Bulkhead Assembly
31	WP3387230 Whirlpool Screw
32	WP489463 Whirlpool Refrigerator Screw
33	WP22002263 Whirlpool Dryer 10W Light Bulb
34	WP3387223 Whirlpool Electrode Assembly
35	8578825 Whirlpool Bracket
36	W11222979 Whirlpool Socket
37	WHEEL
38	WP3392519 Whirlpool Dryer Thermal Fuse
39	WP3394986 Whirlpool Spring
40	WP8066208 Whirlpool Clip
41	W10120998 Whirlpool Dryer Lint Screen Filter
42	WP8577274 Whirlpool Dryer Thermistor
43	W11693756 Whirlpool Screw Assembly
44	W10888146 Whirlpool Housing
45	WPW10128606 Whirlpool Lint Duct
46	HOUSING TAB, HEATER BOX
47	279973 Whirlpool Dryer Thermal Cut-Off and High Limit Thermostat Kit
48	THRMST-FIX
49	W10852390 Whirlpool Drum Baffle
50	W11129408 Whirlpool Out Housing
51	WP3406653 Whirlpool Wire Harness
52	WP8544769 Whirlpool Box
