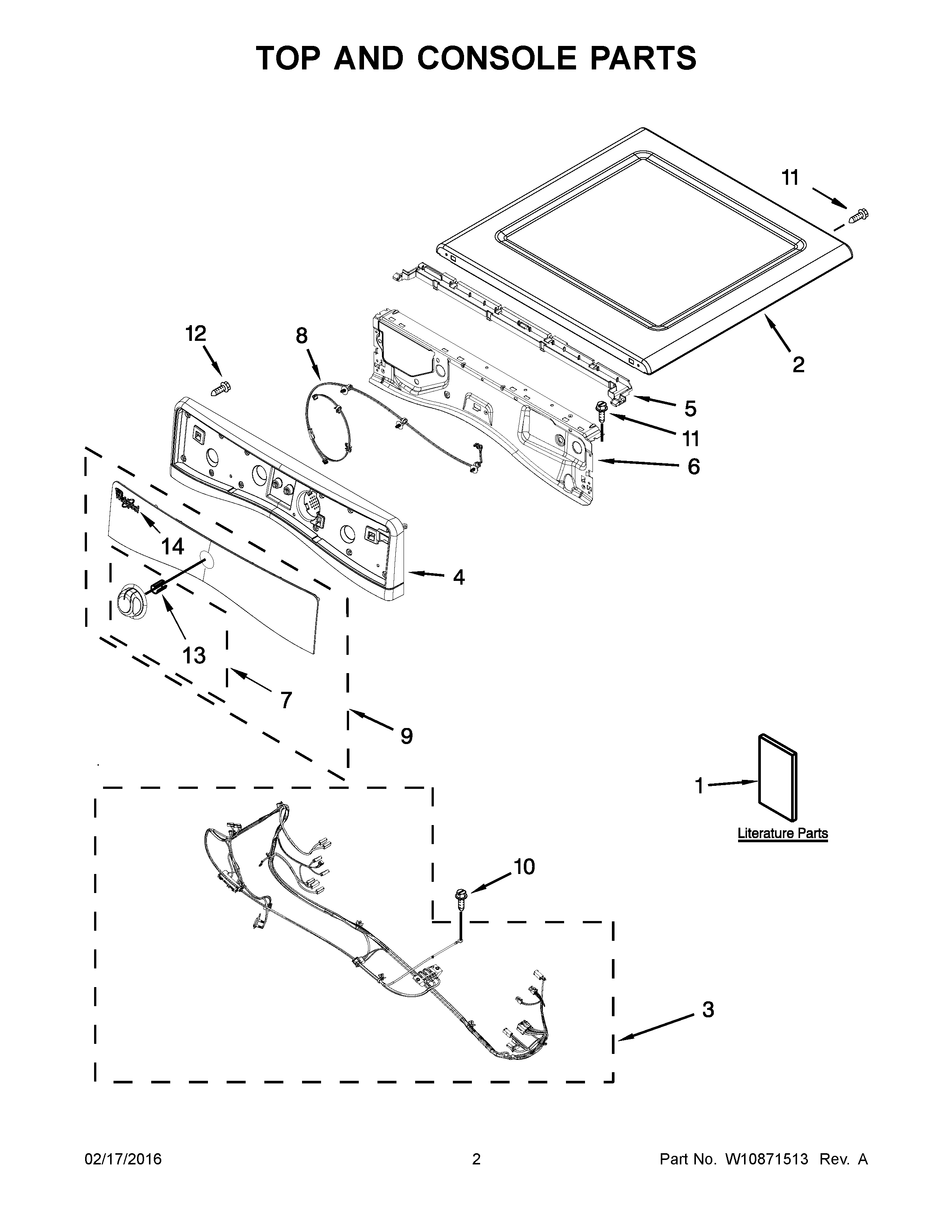

YWED90HEFC0 02 – TOP AND CONSOLE PARTS
Written by
in
YWED90HEFC0 02 – TOP AND CONSOLE PARTS
Products
Position
Product
1D
ENERGY GUIDE
1A
TECH SHEET
1
USE AND CARE GUIDE
1B
INSTALLATION INSTRUCTIONS
1C
QUICK START GUIDE
2
WPW10208383 Whirlpool Top Panel
2A
WPW10460919 Whirlpool Top
3
HARNESS, MAIN
4A
W10876224 Whirlpool Console
4
WPW10391519 Whirlpool Console
5
WPW10653575 Whirlpool Channel
6
W11480682 Whirlpool Bracket
7
W10875909 Whirlpool Timer Knob
8
W10837344 Whirlpool Wire Harness
9A
W10919215 Whirlpool Control Panel
9
W10919212 Whirlpool Control Panel
10
WP693995 Whirlpool Screw
11
WP488729 Whirlpool Refrigerator Door Screw
12
W10489172 Whirlpool Screw
13
WP8536939 Whirlpool Spring Clip
14
W11178521 Whirlpool Dishwasher Nameplate
←
