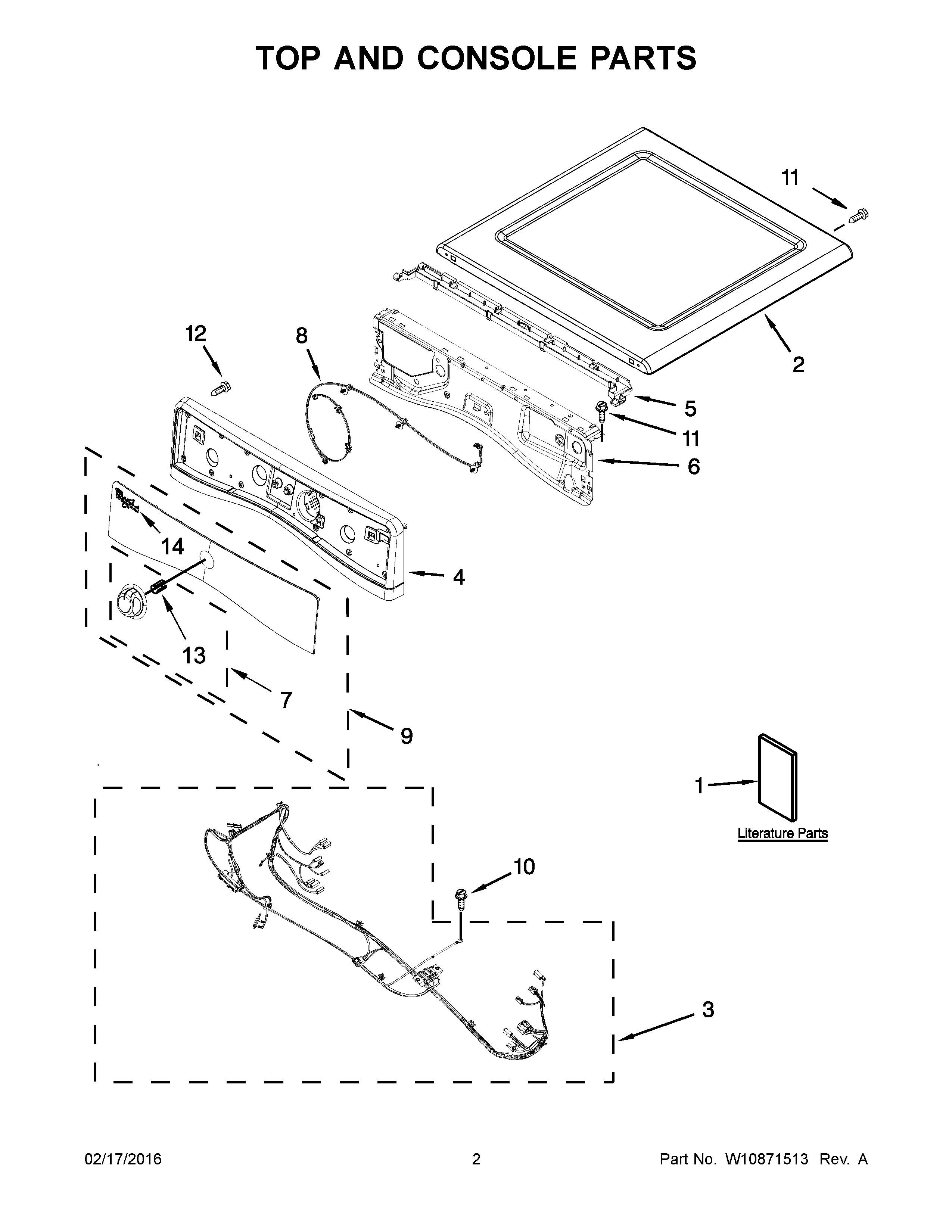

YWED90HEFW0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1D	ENERGY GUIDE
1A	TECH SHEET
1	USE AND CARE GUIDE
1B	INSTALLATION INSTRUCTIONS
1C	QUICK START GUIDE
2	WPW10208383 Whirlpool Top Panel
2A	WPW10460919 Whirlpool Top
3	HARNESS, MAIN
4A	W10876224 Whirlpool Console
4	WPW10391519 Whirlpool Console
5	WPW10653575 Whirlpool Channel
6	W11480682 Whirlpool Bracket
7	W10875909 Whirlpool Timer Knob
8	W10837344 Whirlpool Wire Harness
9A	W10919215 Whirlpool Control Panel
9	W10919212 Whirlpool Control Panel
10	WP693995 Whirlpool Screw
11	WP488729 Whirlpool Refrigerator Door Screw
12	W10489172 Whirlpool Screw
13	WP8536939 Whirlpool Spring Clip
14	W11178521 Whirlpool Dishwasher Nameplate
