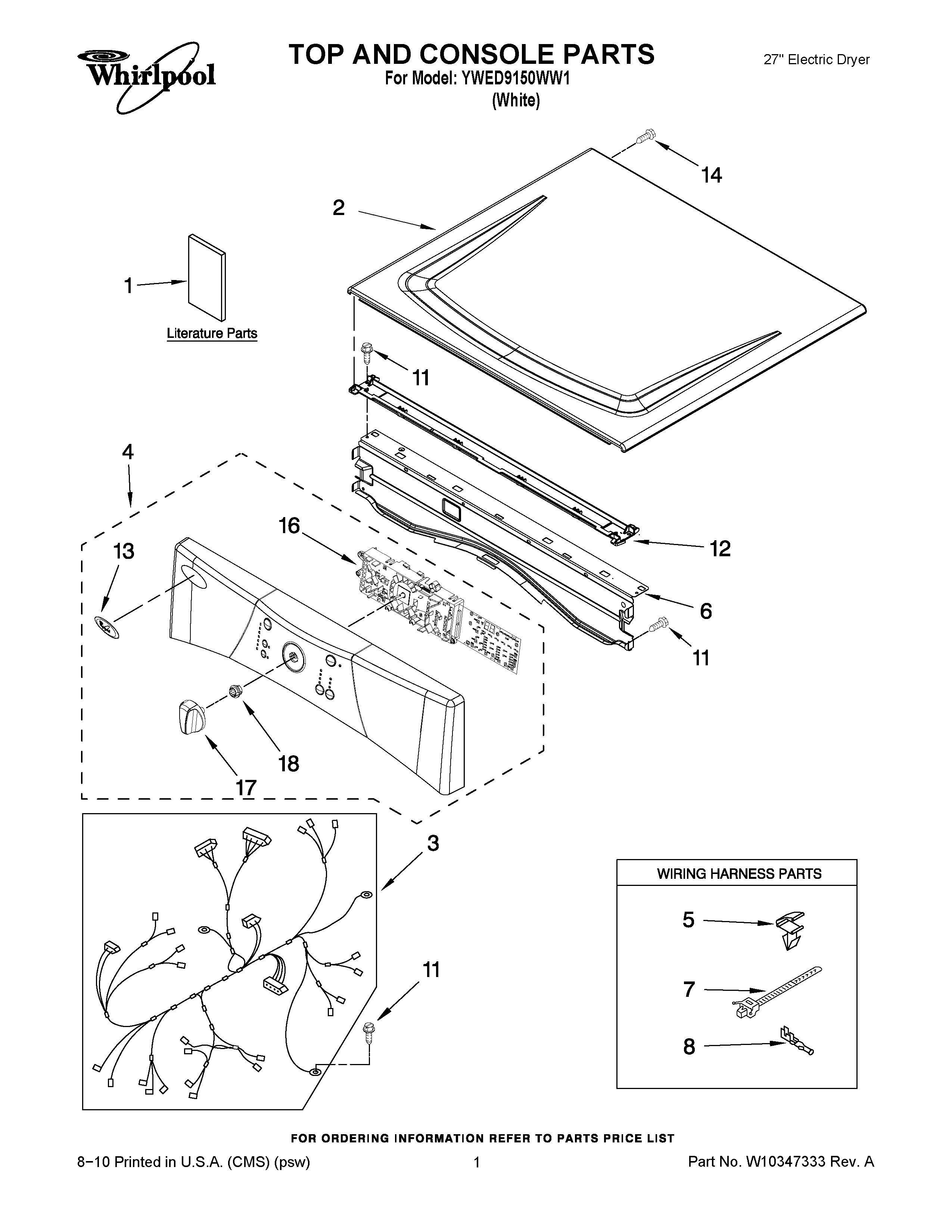

YWED9150WW1 01 – TOP AND CONSOLE PARTS

YWED9150WW1 01 – TOP AND CONSOLE PARTS

Written by

in

YWED9150WW1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1TECH SHEET
2WPW10336080 Whirlpool Top Assembly
3HARNESS, MAIN
4PANEL, CONSOLE
5WP3394427 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7WP3391018 Whirlpool Wire Tie
8WP94614 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13Medallion
14Screw, 2-28 x 1/2
16ASSEMBLY, USER INTERFACE
17WPW10236098 Whirlpool Knob Assembly
18BUSHING, SHAFT KNOB
