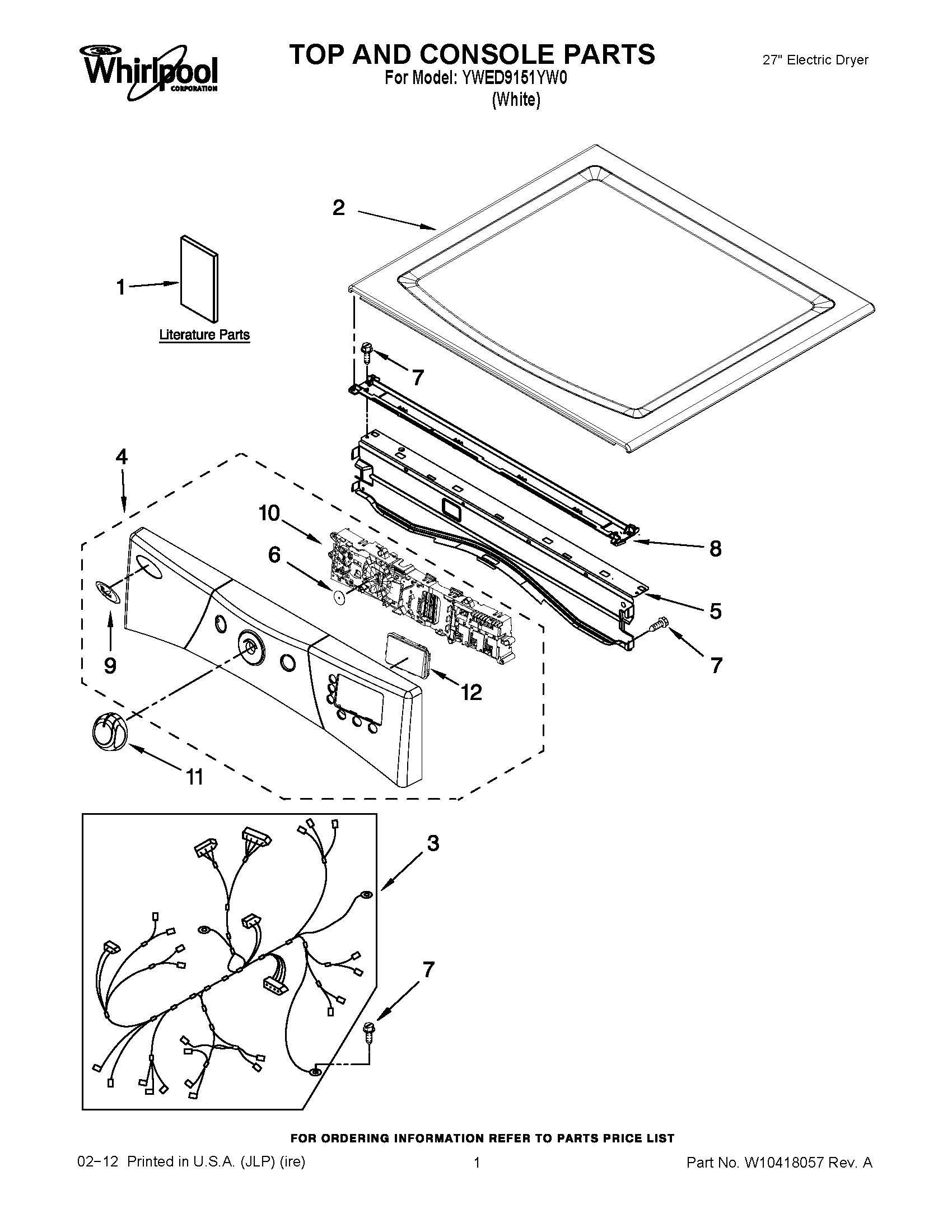

YWED9151YW0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	USE & CARE GUIDE
1	TECH SHEET
1	INSTALLATION INSTRUCTIONS
2	WPW10336080 Whirlpool Top Assembly
3	HARNESS, MAIN
4	PANEL, CONSOLE
5	WP8565237 Whirlpool Bracket Assembly
6	SEAL, USER INTERFACE
7	WP488729 Whirlpool Refrigerator Door Screw
8	WPW10266747 Whirlpool Channel
9	Medallion
10	ASSEMBLY, USER INTERFACE
11	WPW10416463 Whirlpool Knob
12	WINDOW, DISPLAY

No products found
