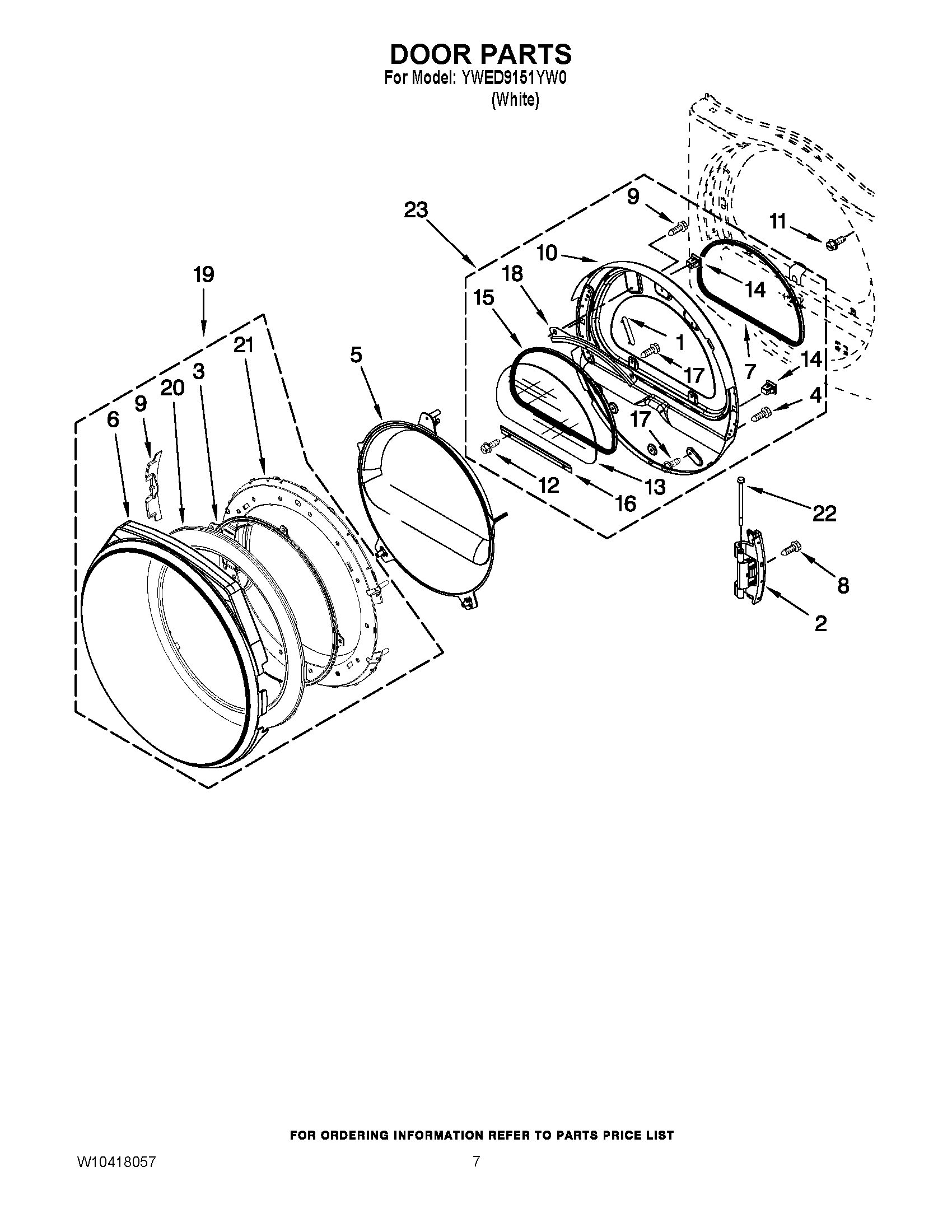

YWED9151YW0 04 – DOOR PARTS

YWED9151YW0 04 – DOOR PARTS

Written by

in

YWED9151YW0 04 – DOOR PARTS

Products

PositionProduct
1WPW10256915 Whirlpool Label
2ASSEMBLY, DOOR HINGE
4W11116979 Whirlpool Screw
5DOOR, INTERMEDIATE STATIONARY
6TRIM RING, OUTER DOOR (WHITE)
7WPW10163915 Whirlpool Door Seal
8WPW10159996 Whirlpool Screw
9COVER, HINGE (WHITE)
10W11690171 Whirlpool Door Assembly
11WP355515 Whirlpool Screw
12WP3373329 Whirlpool Dishwasher Screw
13WPW10286878 Whirlpool Window
14279570 Whirlpool Dryer Door Latch Kit
15W11706993 Whirlpool Seal
16W10822054 Whirlpool Retainer
17SCREW
188519356 Whirlpool Retainer
19DOOR ASSEMBLY (OUTER)
20CABINET (NOT A SERVICEABLE PART)
21DOOR INTERMEDIATE ROTATIONAL
228565087 Whirlpool Screw
23INNER DOOR ASSEMBLY
