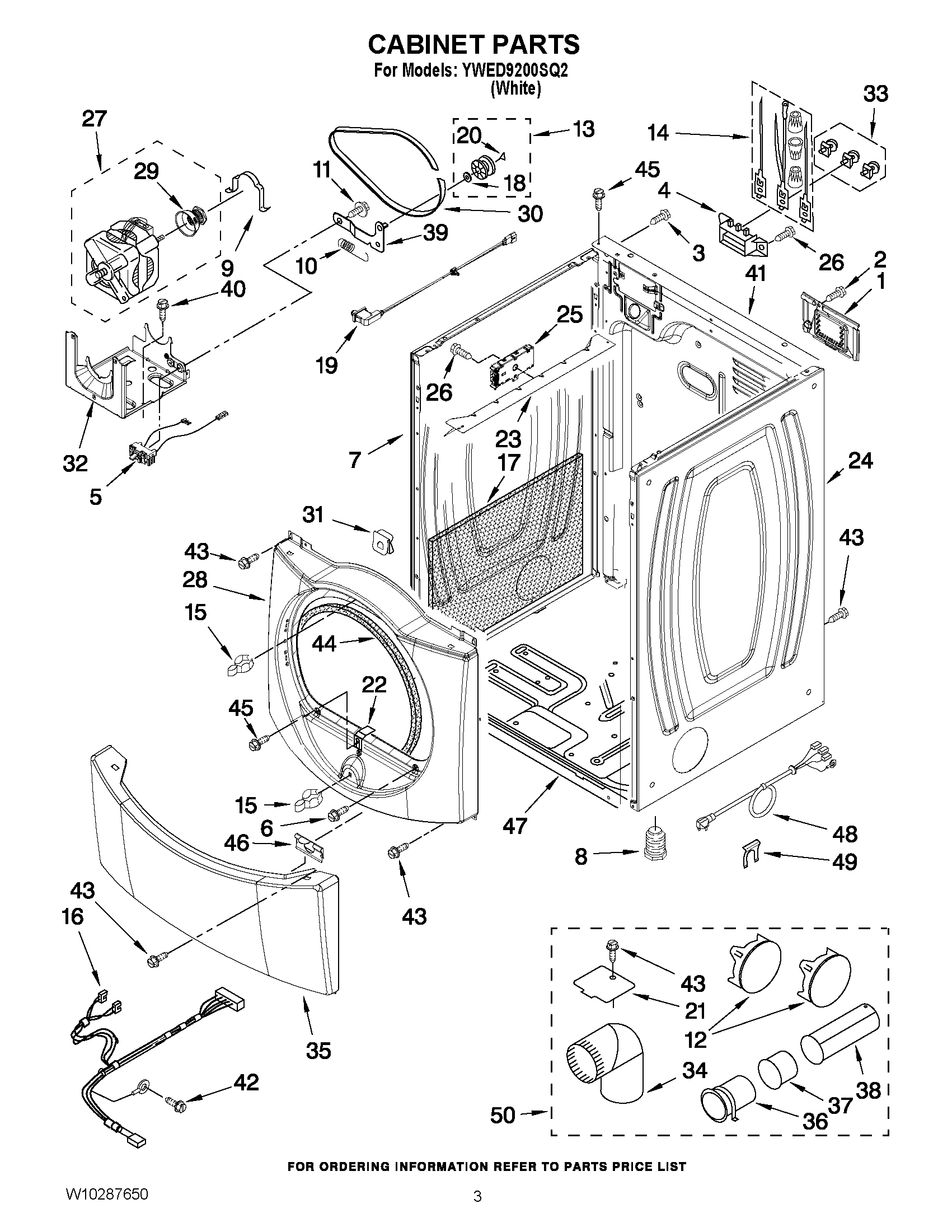

YWED9200SQ2 02 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
NI	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
1	WPW10119283 Whirlpool Terminal Cover
2	WP90767 Whirlpool Screw
3	W10850756 Whirlpool Screw
4	WP3397659 Whirlpool Terminal Block
5	WPW10411937 Whirlpool Switch
6	WP308685 Whirlpool Microwave Screw
7	W11233548 Whirlpool Panel
9	CLAMP
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	279640 Whirlpool Dryer Idler Pulley Kit
14	279318 Whirlpool Terminal
15	279570 Whirlpool Dryer Door Latch Kit
16	W10242904 Whirlpool Wire Harness
17	W10123956 Whirlpool Sound Absorber
18	WPW10121334 Whirlpool Washer
19	W10128087 Whirlpool Door Switch
20	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21	WPW10354249 Whirlpool Cover
22	Ramp, Door
23	WP8563727 Whirlpool Bracket
25	CONTROL BOARD
27	279787 Whirlpool Dryer Drive Motor
28	WPL W10180423
29	W10837625 Whirlpool Dryer Motor Pulley
30	661570V Whirlpool Dryer Drum Belt
31	Clip, Mounting (2)
32	W11481730 Whirlpool Bracket
33	279393 Whirlpool Terminal Block Screw and Nut Kit
34	WPW10416072 Whirlpool Elbow
35	TOE-PANEL (WHITE)
36	WP8563747 Whirlpool Exhaust Pipe
37	WPW10331278 Whirlpool Exhaust Pipe
38	WP8563749 Whirlpool Exhaust Pipe
39	W10837240 Whirlpool Dryer Idler Pulley
40	SCREW
41	PANEL, REAR
42	WP693995 Whirlpool Screw
44	WP3387242 Whirlpool Seal
45	WP488729 Whirlpool Refrigerator Door Screw
46	W11295573 Whirlpool Clip
47	BASE, CABINET
48	Cord, Power
49	W11712577 Whirlpool Clip
