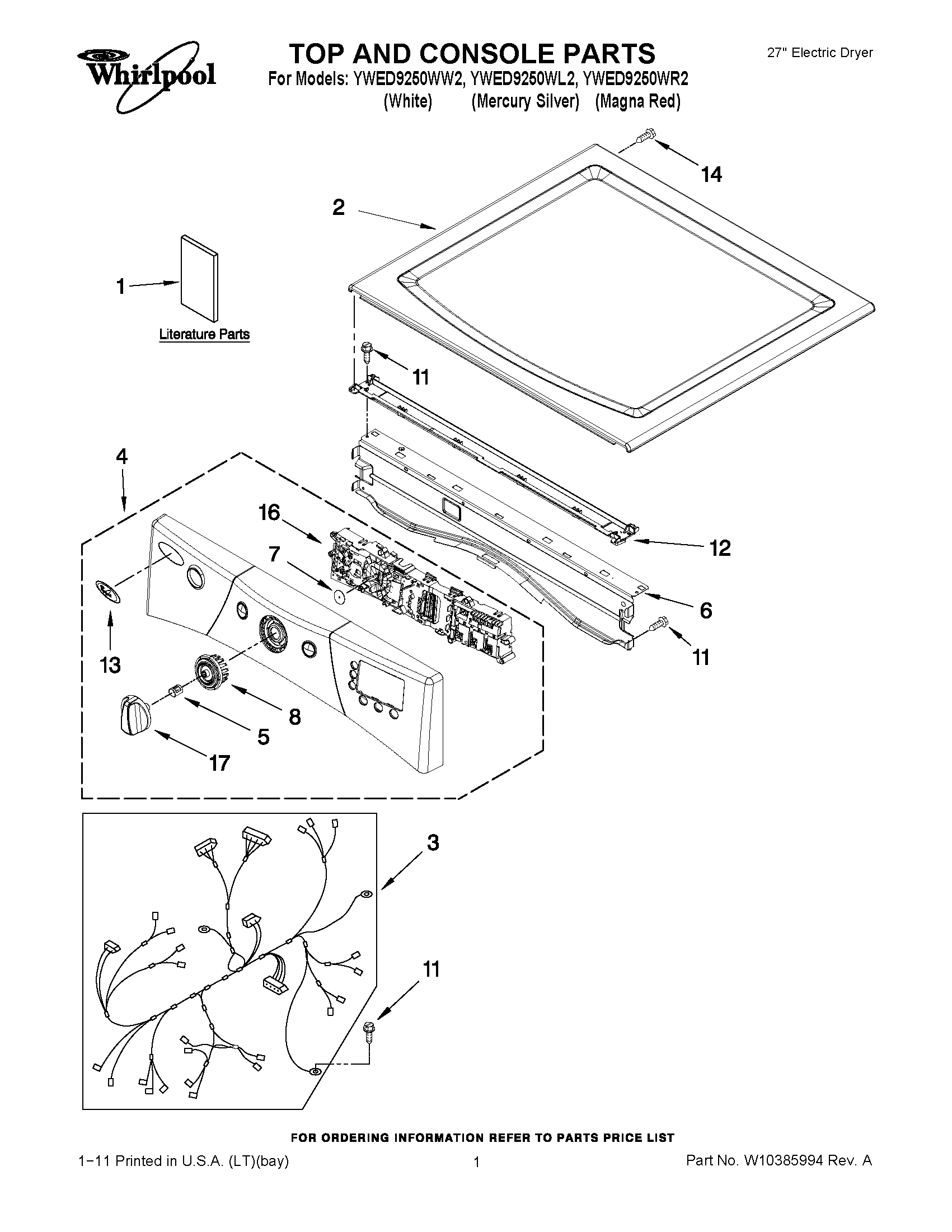

YWED9250WL2 01 – TOP AND CONSOLE PARTS

YWED9250WL2 01 – TOP AND CONSOLE PARTS

Written by

in

YWED9250WL2 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1TECH SHEET
1INSTALLATION INSTRUCTIONS
2WPW10336091 Whirlpool Top
2WPW10336080 Whirlpool Top Assembly
2TOP (RED)
3HARNESS, MAIN
4PANEL, CONSOLE (INCLUDES, ITEM. 13 ) (WHITE)
4PANEL, CONSOLE (INCLUDES, ITEM. 13 ) (MERCURY SILVER)
4PANEL, CONSOLE (INCLUDES, ITEM. 13 ) (MAGNA RED)
5W10153920 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7SEAL, USER INTERFACE
8W10237301 Whirlpool Ring
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13Medallion
14Screw, 2-28 x 1/2
16WPW10215475 Whirlpool Electronic Control Board
17WPW10247262 Whirlpool Knob
17WPW10215781 Whirlpool Knob
