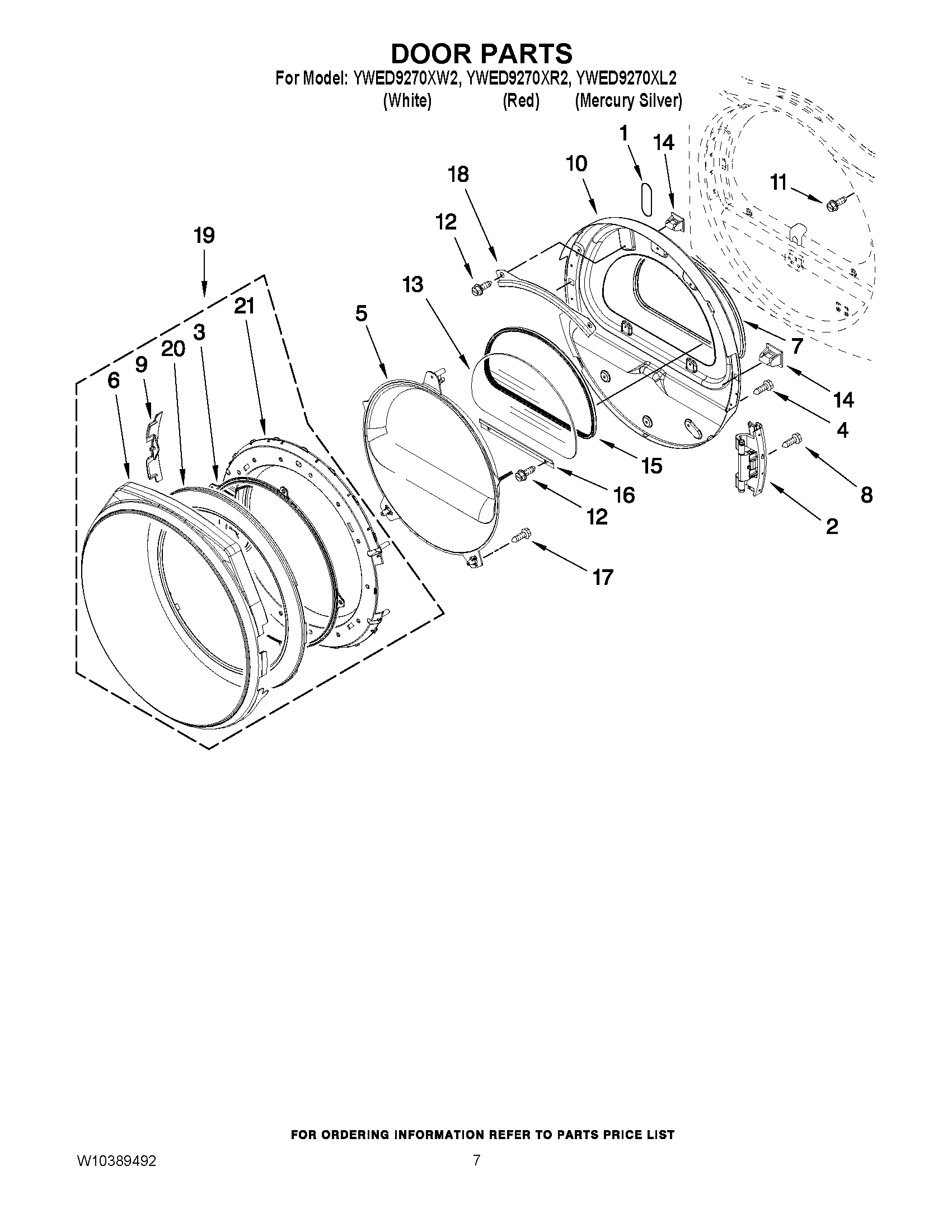

YWED9270XL2 04 – DOOR PARTS

Products

Position	Product
1	WPW10256915 Whirlpool Label
1	WPW10085230 Whirlpool Label Assembly
2	ASSEMBLY, DOOR HINGE
4	W11116979 Whirlpool Screw
5	DOOR, INTERMEDIATE STATIONARY
6	TRIM, DOOR RING OUTER (WHITE)
6	TRIM, DOOR RING OUTER (SILVER)
6	TRIM, DOOR RING OUTER (RED)
7	WPW10163915 Whirlpool Door Seal
8	WPW10159996 Whirlpool Screw
9	COVER, HINGE (WHITE)
9	COVER, HINGE (SILVER)
9	COVER, HINGE (RED)
10	W11690171 Whirlpool Door Assembly
11	WP355515 Whirlpool Screw
12	WP3373329 Whirlpool Dishwasher Screw
13	WPW10286878 Whirlpool Window
14	279570 Whirlpool Dryer Door Latch Kit
15	W11706993 Whirlpool Seal
16	W10822054 Whirlpool Retainer
17	WP8534022 Whirlpool Screw
18	8519356 Whirlpool Retainer
19	DOOR ASSEMBLY OUTER (SILVER)
19	DOOR ASSEMBLY OUTER (WHITE)
19	DOOR ASSEMBLY OUTER (RED)
20	CABINET (NOT A SERVICEABLE PART)
21	DOOR INTERMEDIATE ROTATIONAL
