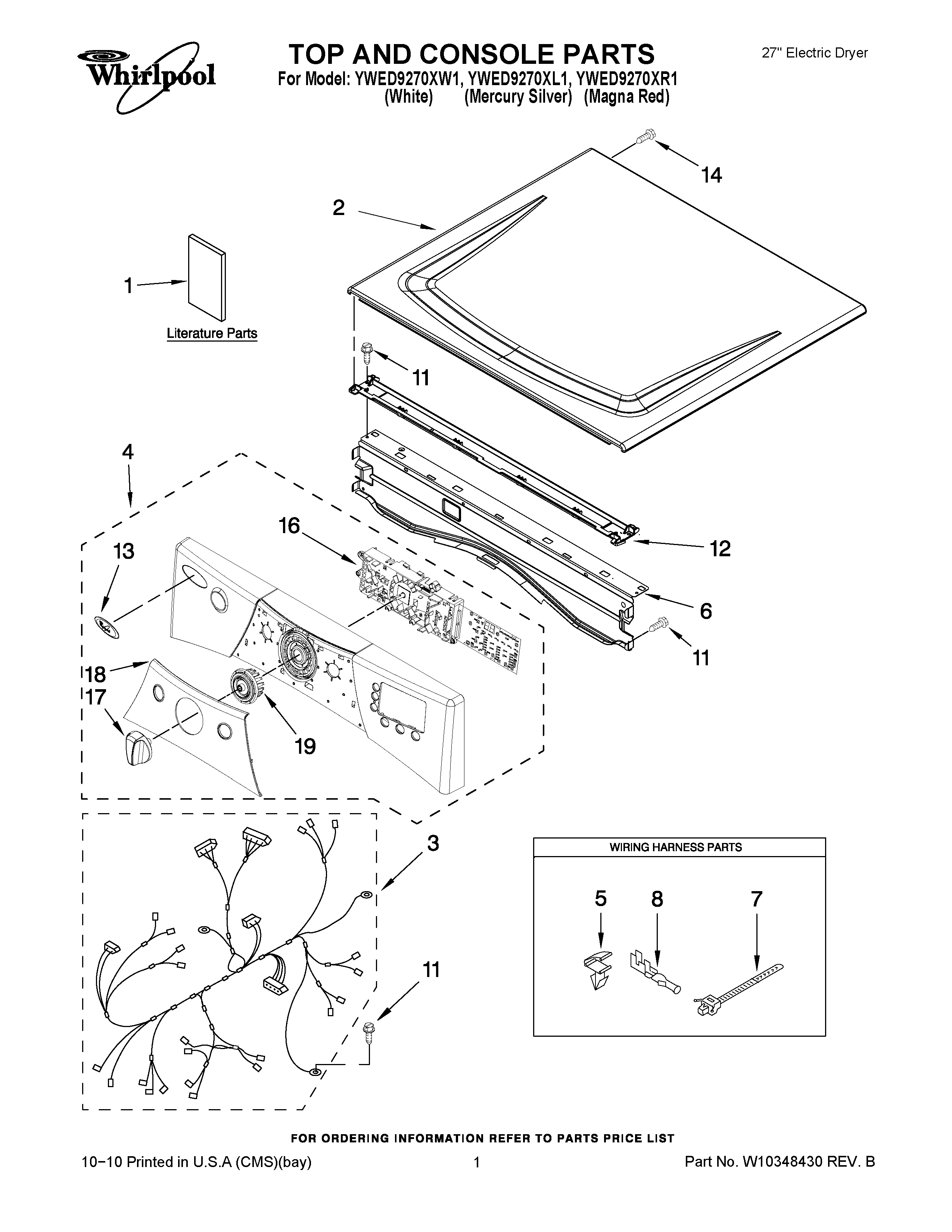

YWED9270XR1 01 – TOP AND CONSOLE PARTS

YWED9270XR1 01 – TOP AND CONSOLE PARTS

Written by

in

YWED9270XR1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1USE & CARE GUIDE
1INSTALLATION INSTRUCTIONS
1TECH SHEET
2TOP (MAGNA RED)
2WPW10336080 Whirlpool Top Assembly
2WPW10336091 Whirlpool Top
3HARNESS, MAIN
4PANEL, CONSOLE (WHITE)
4PANEL, CONSOLE (SILVER)
4WPW10215463 Whirlpool Console Assembly
5WP3394427 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7WP3391018 Whirlpool Wire Tie
8WP94614 Whirlpool Terminal
11WP488729 Whirlpool Refrigerator Door Screw
12WPW10266747 Whirlpool Channel
13Medallion
14Screw, 2-28 x 1/2
16ASSEMBLY, USER INTERFACE
17WPW10215781 Whirlpool Knob
17WPW10247262 Whirlpool Knob
18COVER, CENTER (RED)
18COVER-CENTER (SILVER)
18COVER, CENTER (WHITE)
19W10237301 Whirlpool Ring
